Definite Purpose Connectors
Definite Purpose Contactors
Definite purpose contactors are a device that is designed to handle high current circuits for specialized inductive and resistive loads. These loads include compressors, pumps, transformers and electric heating and lighting applications. Each Noark definite purpose contactor is designed to meet or exceed industry standards and handle a specific type of load to ensure that the equipment being controlled operates efficiently and safely.
Features

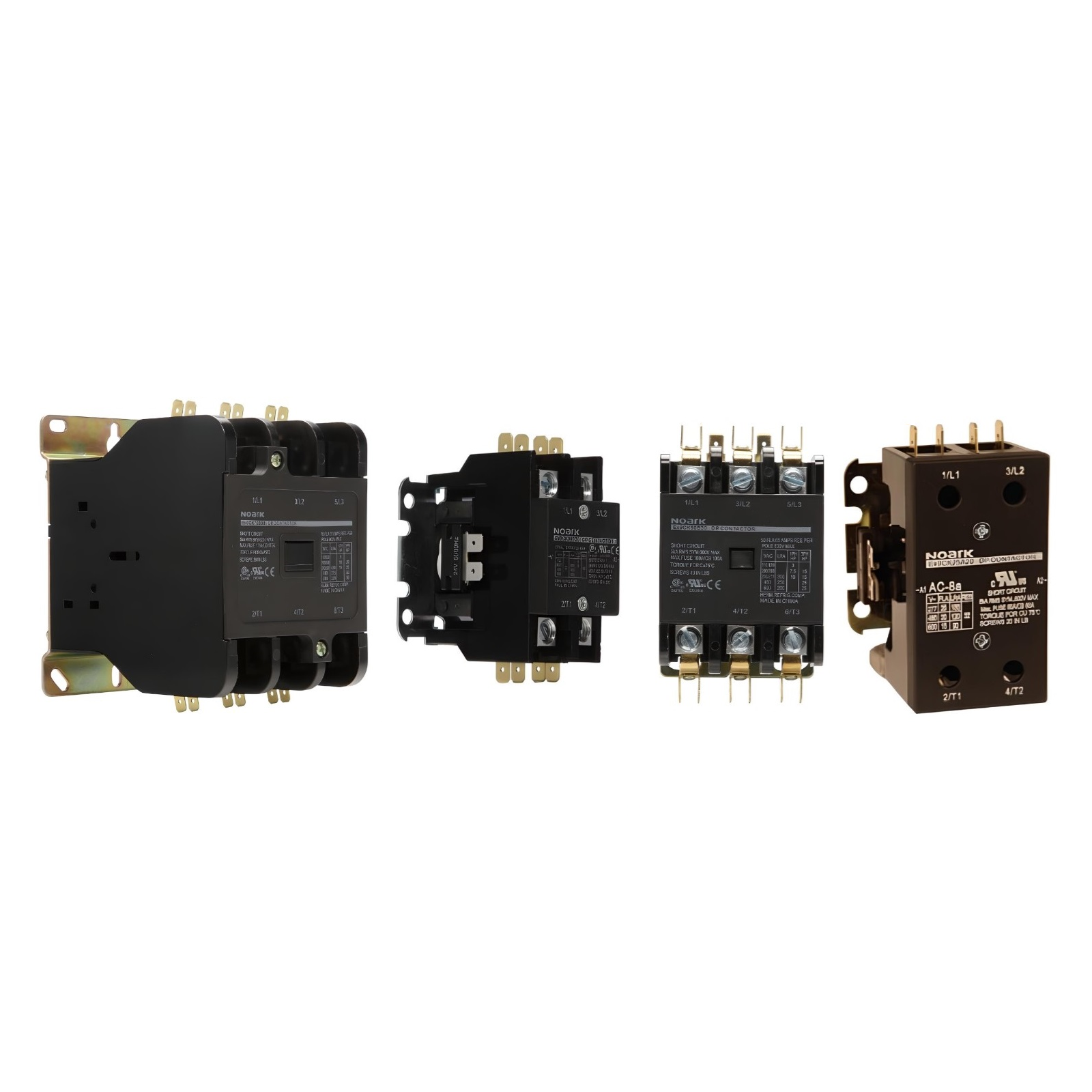

Ex9CK Definite Purpose Contactors
• Rated current from 20~90 A
• Coil voltages from 24~600 Vac, 50/60 Hz
• Coil is Class B 266 ºF (130 ºC)
• Available with enclosed coils for protection against particle contamination
• 1, 2, and 3 pole configurations
• Industry standard mounting plate provides easily accessible mounting holes
• More connection terminal options, including screw or lug connections each
with quick connect spades
• Double E magnet assembly provides optimal performance with reduced power consumption

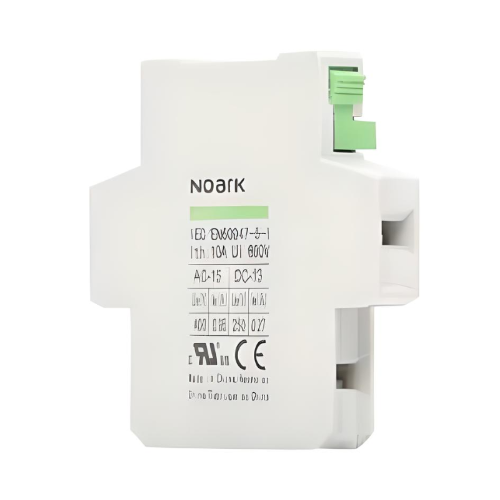

• 1NO+1NC auxiliary contact block with 600 Vac available as an option
• Base assembly is made from high arc-resistant polyester
Certifications
• UL Recognized Component, File Number E353866
• Certified for Canada according to CSA standards
• IEC/EN 60947-4-1
• Complies with VDE standards
Features

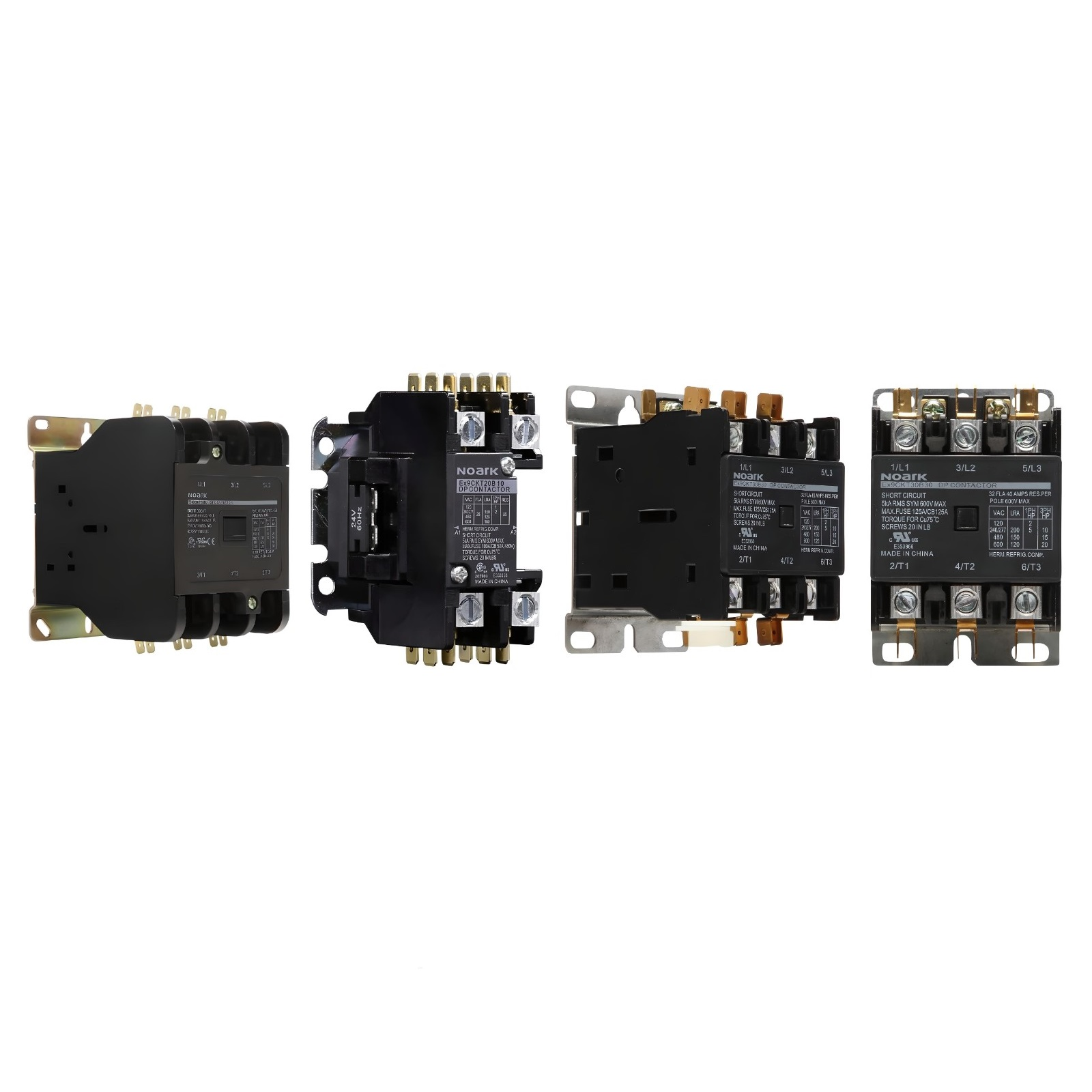

Ex9CKT Series DP Contactors provide high performance with both flexibility and reliability. They are designed to match numerous applications including:
• Air conditioning
• Resistive heating
• Refrigeration equipment
• Motors
• Welding
• Pumps
• Power supplies
• Food service equipment
• Compressors
• Business machines
• Lighting (25-50A)
Available as:
• 20~40A, 1 to 4 pole available now
• Enclosed coil standard for all 1 to 4 pole frame sizes
• Industry standard mounting plate provides easily accessible mounting holes
• Connection terminal options, including screw or lug connections each with quick connect spades
• Coil is Class B 266°F (130°C) insulation system with a wide range of voltages and 50/60 Hz ratings
• Double E magnet assembly provides optimal performance with reduced power consumption
• Base assembly is made from high arc-resistant polyester
• 100,000 to 250,000 cycles by UL 508/UL60947-4-1 for air resistance
heating application
Certifications
• UL 60947-1; UL 60947-4-1; UL 508; UL E353866
• CSA Certified, C22.2 No. 265900
• IEC/EN 60947-4-1 Compliant
• CE Approved
• Compliance to ARI-780 HVAC standards
