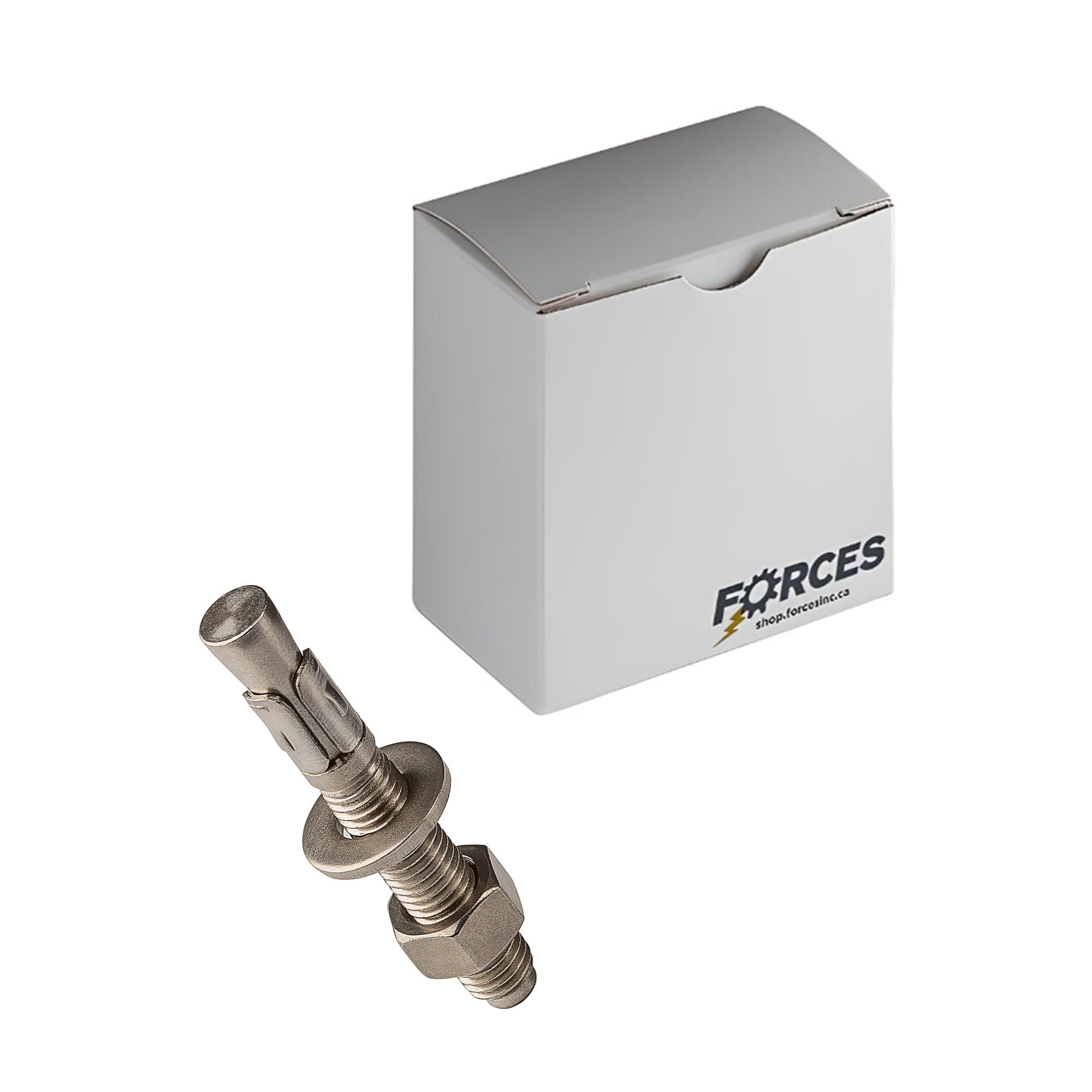

Product Details : 3/4" x 4-1/4" Wedge Anchor - Stainless Steel 18-8
-
Product Type: Wedge Anchor
-
Drill Size: 3/4"
-
Diameter: 3/4"
-
Length: 4-1/4"
-
Thread Length: 1-1/2"
-
Load Capacity - Wall Mounted/Concrete: 1987 kg
-
Load Capacity - Ceiling Mounted/Concrete: 1987 kg
-
2000 PSI Concrete -Pull Out (lbs): 4978
-
2000 PSI Concrete -Shear (lbs): 9378
-
Important Information: As a safety factor, industry standards recommend using 25% of the ultimate load (Break Point). Ultimate load in 2000 PSI concrete.
-
Material(s): Stainless Steel 18-8
For any information about products, please contact us.
*Photos for reference purposes only.
