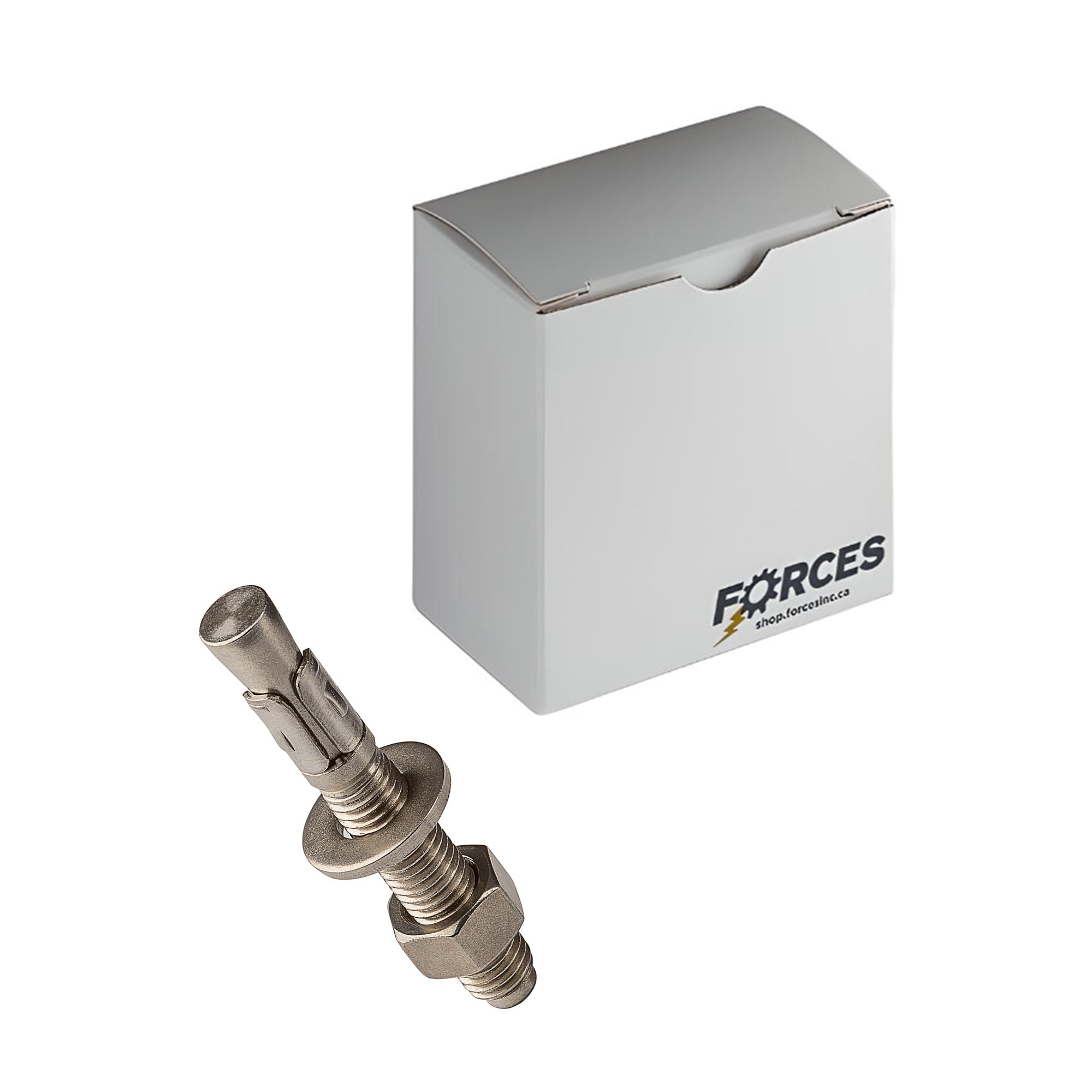

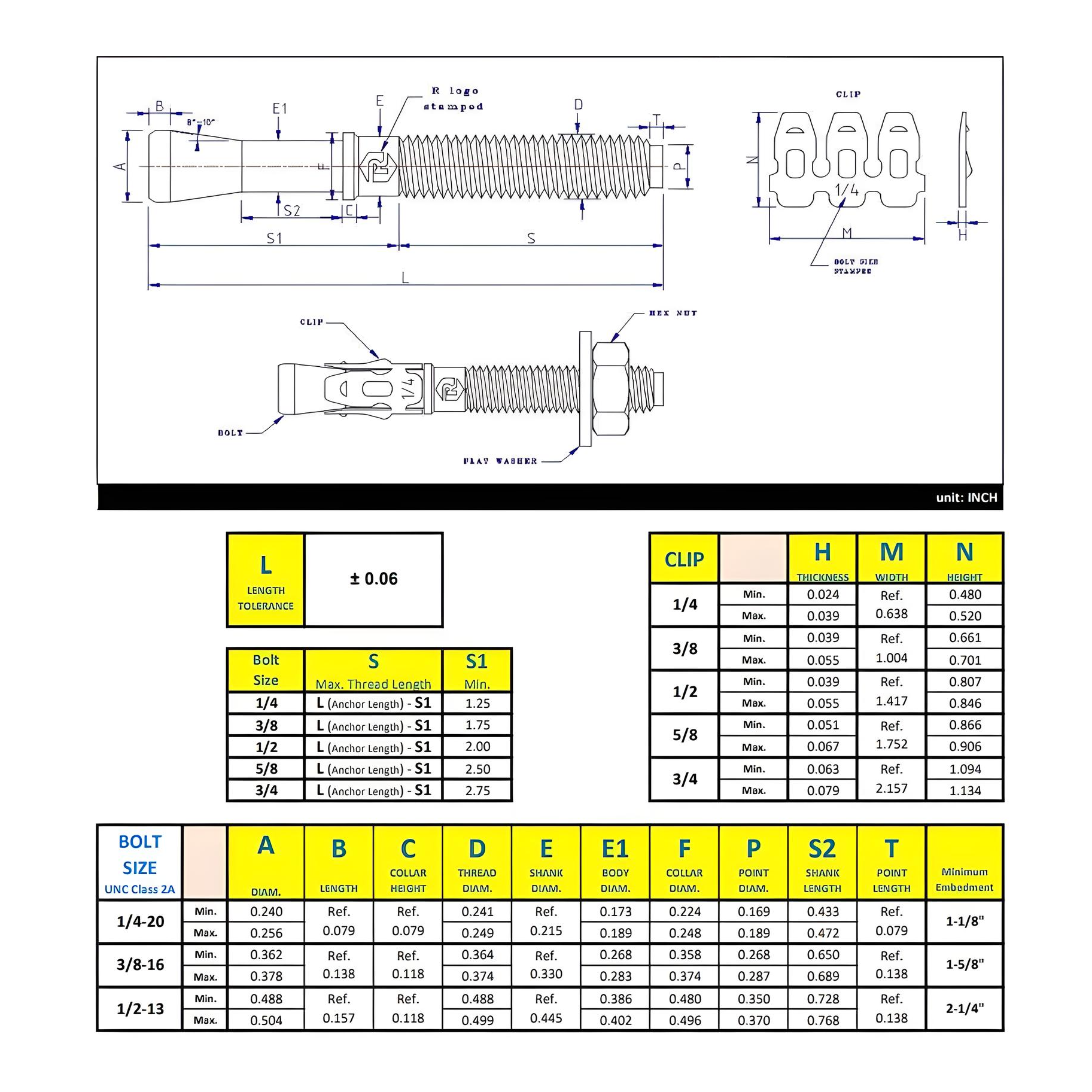

Product Details : 3/8" x 3" Wedge Anchor - Stainless Steel 316
-
Product Type: Wedge Anchor
-
Drill Size: 3/8"
-
Diameter: 3/8"
-
Length: 3"
-
Thread Length: 1-1/4"
-
Load Capacity - Wall Mounted/Concrete: 489 kg
-
Load Capacity - Ceiling Mounted/Concrete: 497 kg
-
2000 PSI Concrete -Pull Out (lbs): 1223
-
2000 PSI Concrete -Shear (lbs): 3238
-
Important Information: As a safety factor, industry standards recommend using 25% of the ultimate load (Break Point). Ultimate load in 2000 PSI concrete.
-
Material(s): Stainless Steel 316
For any information about products, please contact us.
*Photos for reference purposes only.
