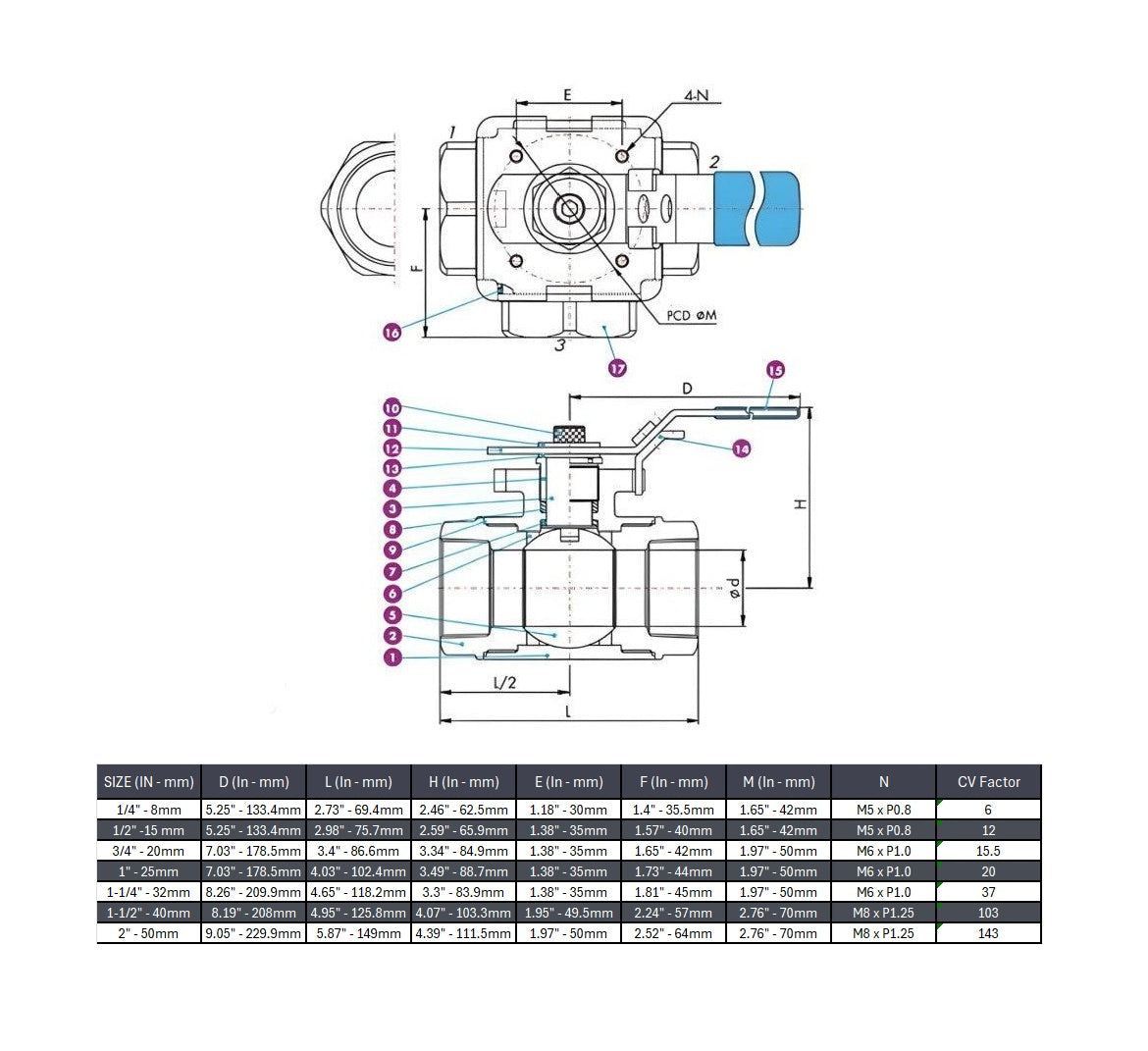

Product Details : 3 Way L Port Ball Valve NPT 1000 WOG Stainless Steel 316
-
Specifications:
• ‘L’ Port
• Pressure rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Investment cast body & cap
• Bottom-loaded, Blow-out-proof stem
• Adjustable stem packing
• Stainless Steel handle with vinyl grip
• Locking device
-
BODY: ASTM A351 Gr. CF8M
-
CAP2: ASTM A351 Gr. CF8M
-
STEM: ASTM A276 Gr. 316
-
GLAND NUT: SS304
-
BALL: ASTM A351 Gr. CF8M
-
SEAT: PTFE+15%G/F
-
THRUST WASHER: PTFE
-
PACKINGS: PTFE
-
JOINT GASKET1: PTFE
-
STEM BOLT: SS304
-
WASHER: SS304
-
HANDLE: SS304
-
STEM WASHER: SS304
-
LOCATING LOCK: SS304
-
HANDLE SLEEVE: VINYL GRIP
-
JOINT GASKET: PTFE
-
CAP1: ASTM A351 Gr. CF8M
For any information about products, please contact us.
*Photos for reference purposes only.
