Product Details : Bulkhead Union 8mm Tube Push to Connect - Brass
-
Part No: P10.08
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Bulkhead Union
-
Number Of Exits: 1
-
Type: Tube Fitting
-
O-Ring: No O-Ring
-
Material(s): Nickel Plated Brass
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 8mm
-
Connection 2: Push to Connect 8mm
-

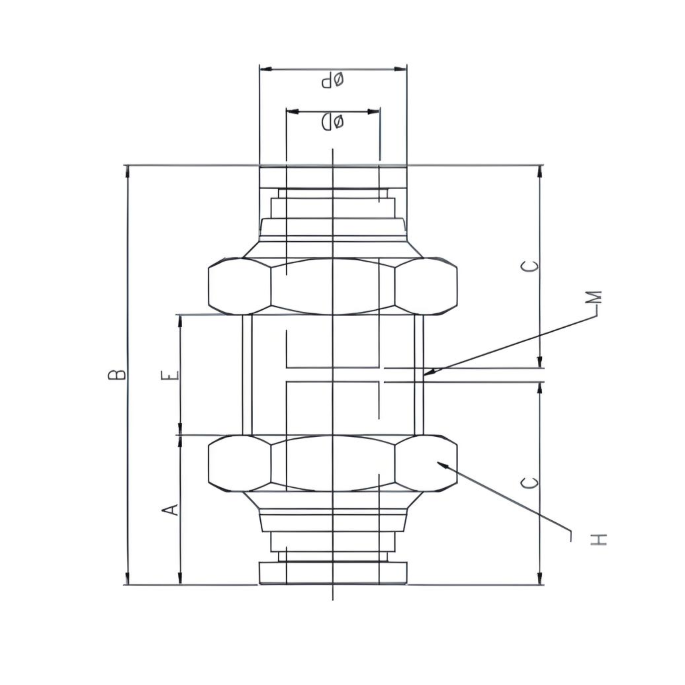

øD: 8mm
-
øP: 13mm
-
M: M16 X 1.0P
-
A: 13.2mm
-
B: 37mm
-
C: 17.8mm
-
E: 10.6mm
-
H: 19mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
