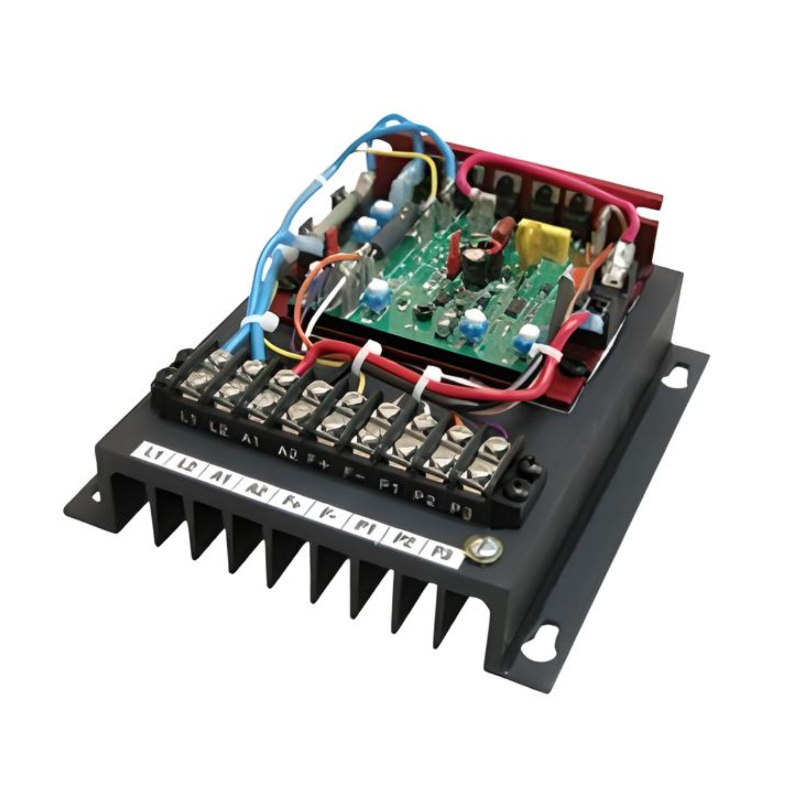

Product Details : KBCC-125 | KB Chassis SCR DC Drive 1.5HP, 90 VDC (9936)
-
Part No: 9936
-
Product Type: KB Chassis SCR DC Drive
-
Model No.: KBCC-125
-
HP: 1.5
-
Input Phase: 1
-
Input Voltage: 115 VAC
-
Output Voltage: 90 VDC
-
Output Amperage: 16
-
Frequency (Hz): 50-60
-
Enclosure NEMA: Chassis
-
Enclosure IP: IP20
-
Forward-Break-Reverse: One Direction
-
Features:
• The KBCC-125 is 115 VAC
• Designed for 90 VDC PM motors.
• Control motors between 1/100-1.5 HP
• They include all the features of the KBMM including the Auxiliary Heatsink and Barrier Terminal Block with AC line and armature fuses.
• The controls are ruggedly constructed and contain a remote 5K speed pot.
• Features include:
- AC Line fuse and Armature Fuse holder
- Auxiliary heat sink
- Barrier terminal block
• Requires a plug-in horsepower to operate
• Dimensions: 6.30" x 7.00" x 2.60"
• Line fuse: Required
• Resistor and armature fuse: Required
For any information about products, please contact us.
*Photos for reference purposes only.
