Product Details : Push to Connect 90 Elbow Fitting 4mm Tube x M6 Male
-
Part No: P4.04.M6
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Elbow Union
-
Number Of Exits: 1
-
Type: Male Fitting
-
O-Ring: No O-Ring
-
Material(s): Polymer
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 4mm
-
Connection 2: M6
-

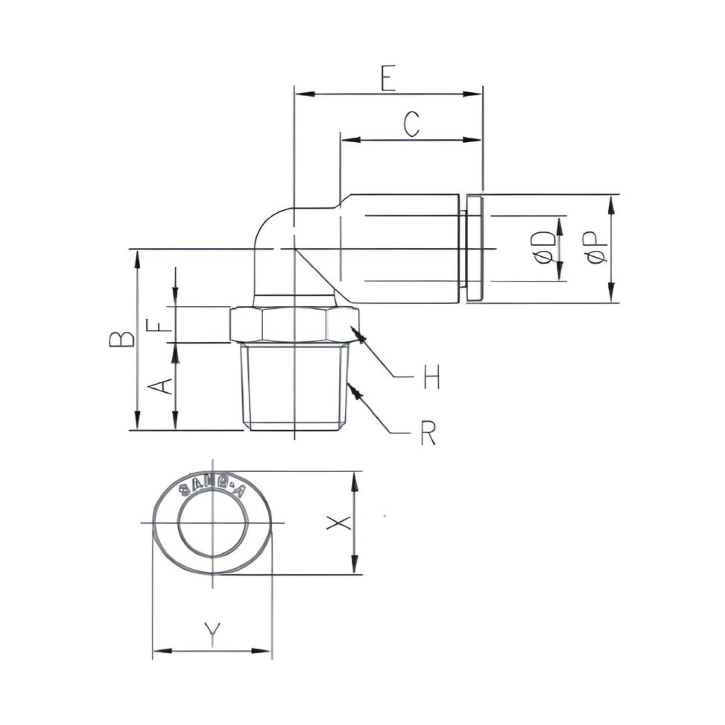

øD: 4mm
-
R: M6
-
øP: 9mm
-
A: 5mm
-
B: 15.6mm
-
C: 14.5mm
-
E: 17.1mm
-
F: 4.4mm
-
H: 9mm
-
X: 8.6mm
-
Y: 10.8mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
