Push to Connect Manifold Union 3/8" x 1/4" Tube OD

Product Details : Push to Connect Manifold Union 3/8" x 1/4" Tube OD

• Part No: P25.3/8.1/4
• Product Category: Push to Connect
• Format: Standard
• Style: Manifold Union
• Number Of Exits: 4
• Type: Tube Fitting
• O-Ring: No O-Ring
• Material(s): Polymer
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push to Connect 3/8"
• Connection 2: Push to Connect 1/4"

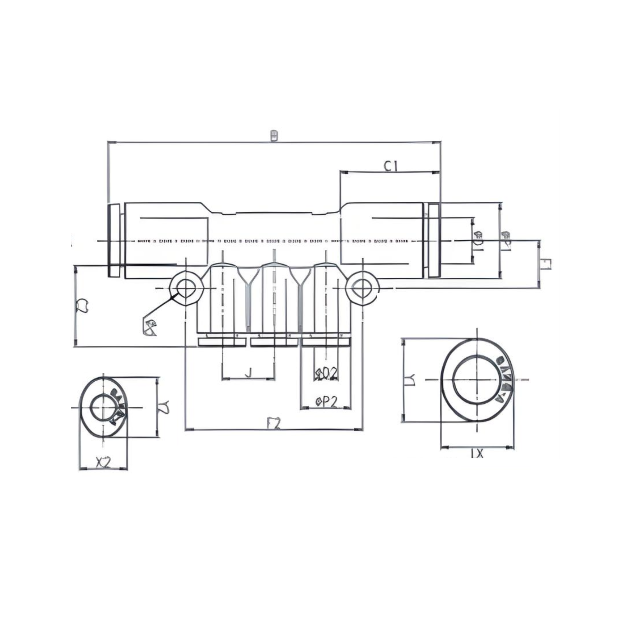

• øD1: 3/8"
• øD2: 1/4"
• øP1: 17.6mm
• øP2: 12.4mm
• B: 85.2mm
• C1: 21mm
• C2: 17mm
• F1: 9mm
• F2: 42mm
• øJ: 12mm
• ød: 4.24mm
• X1: 17mm
• Y1: 19mm
• X2: 12mm
• Y2: 14mm
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon
