Product Details : Push to Connect Straight Union 6mm x 6mm Tube OD
-
Part No: P3.06
-
Product Category: Push to Connect
-
Format: Standard
-
Style: Straight Union
-
Number Of Exits: 1
-
Type: Tube Fitting
-
O-Ring: No O-Ring
-
Material(s): Polymer
-
Fluid Type: Air (no other gases or liquids)
-
Connection 1: Push to Connect 6mm
-
Connection 2: Push to Connect 6mm
-

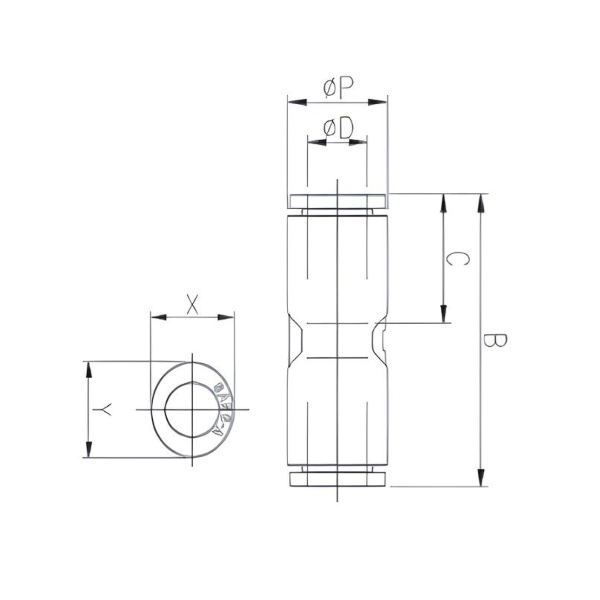

øD: 6mm
-
øP: 11.2mm
-
B: 32mm
-
C: 15.5mm
-
X: 11mm
-
Y: 13mm
-
Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
-
Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
-
Temperature Range: 32-176°F / 0-80°C
-
Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
