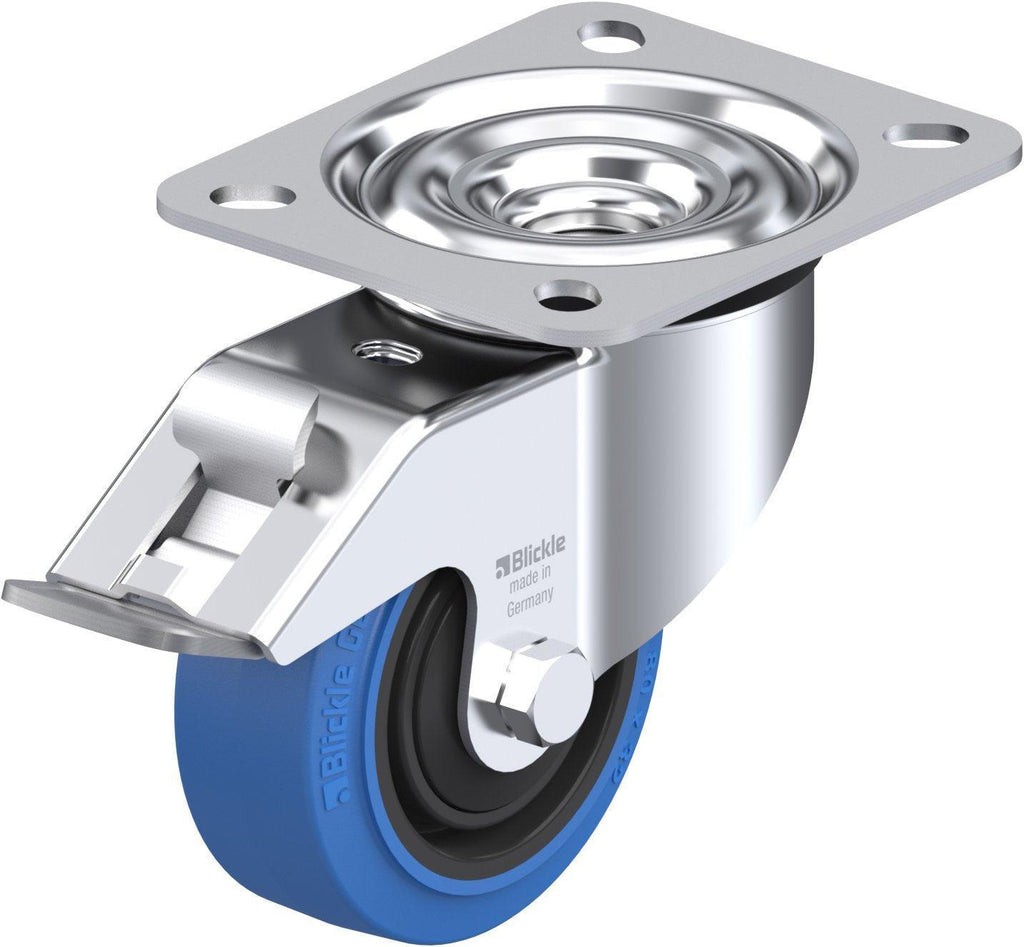

Elastic Rubber Caster 3-1/8" x 1-1/4" W/ Brake, 308 Lbs Load Model: LE-POEV 80KF-FI-SB

Product Details : Elastic Rubber Caster 3-1/8" x 1-1/4" W/ Brake, 308 Lbs Load Model: LE-POEV 80KF-FI-SB

• Part No: LE-POEV 80KF-FI-SB
• Mount Type: Plate
• Caster Type: Swivel with Brake
• Wheel Material: Elastic Solid Rubber "Blickle EasyRoll"
• Plate Material: Zinc plated

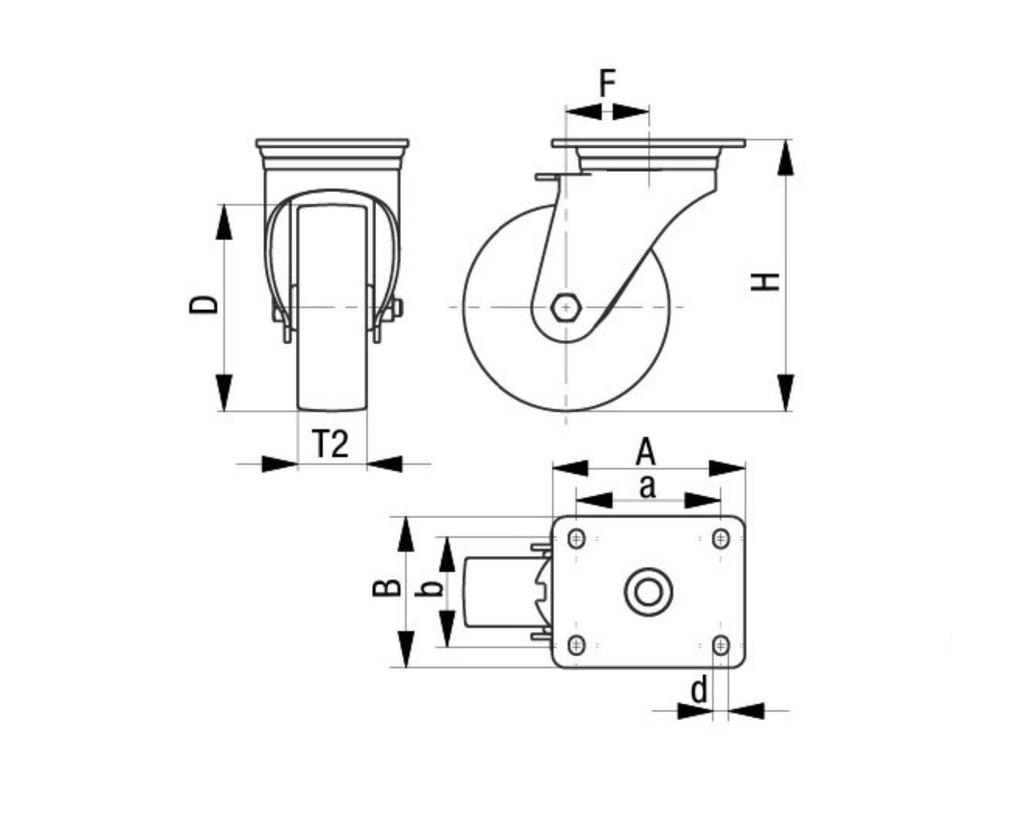

• Wheel Dia. (D): 3-1/8" (80 mm)
• Wheel Width (T2): 1-1/4" (32 mm)
• Capacity: 308 Lbs. (140 Kg.)
• Bearing Type: Ball Bearing (C)
• Total Height (H): 4" (102 mm)
• Plate Size: 3-15/16" X 3-3/8" (100 x 85 mm)
• Bolt Hole Spacing: 3-5/32" x 2-3/8" (80 x 60 mm)
• Bolt Hole Dia. (d): 5/16" (9 mm)
• Offset (F): 1-9/16" (39 mm)
• Temperature Resistance Min: -15 °F
• Temperature Resistance Max: 160 °F
• Tread and Tyre Hardness: 65 Shore A
• Other Features: Non-marking, Non-staining
• App. Wgt. (Lbs.): 1,4652
