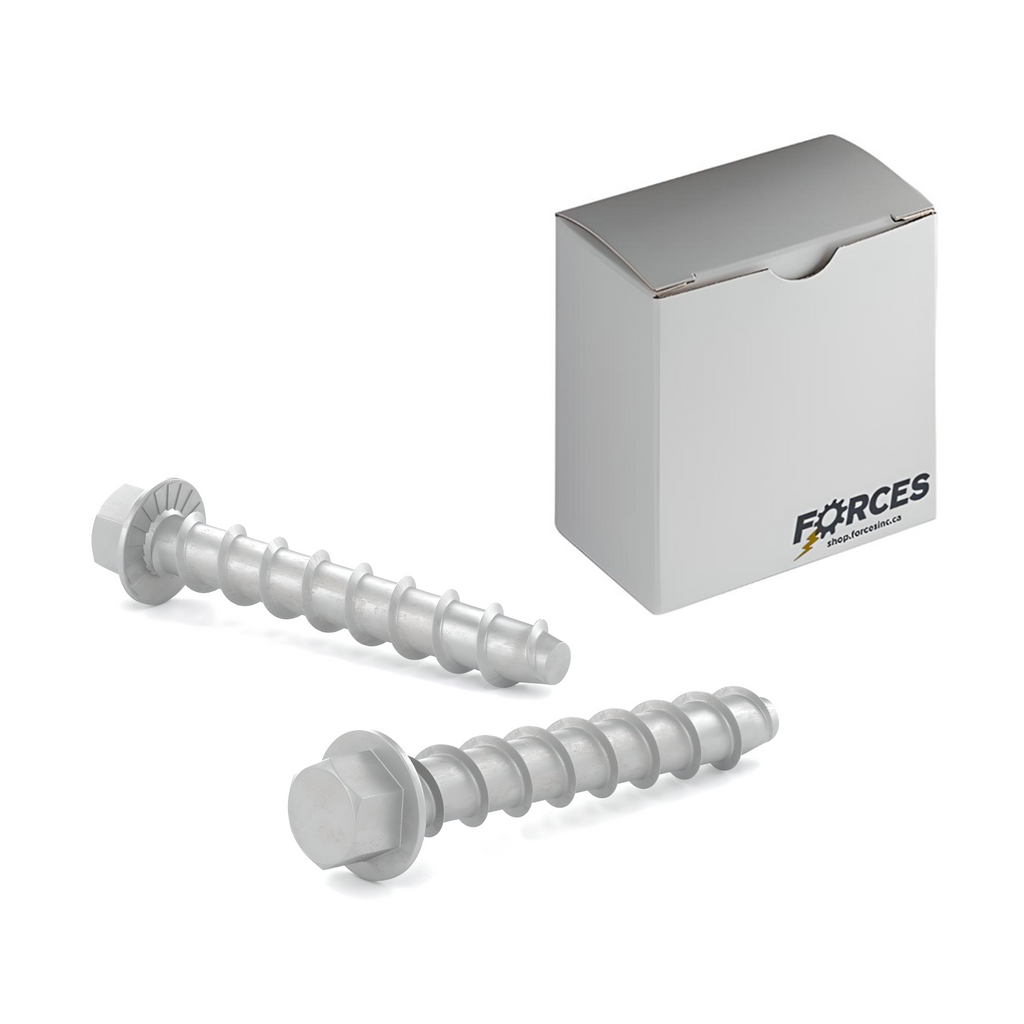

Product Details : 1/2" x 3" Concrete Anchor Screw Hex Washer Head With Serrations
-
Product Type: Concrete Anchor Screw
-
Screw Size: 1/2"
-
Length: 3"
-
Threading: Full thread
-
Drive Required: Hex
-
Head Type: Hex Washer Head With Serrations
-
Point Type: Blunt
-
Minimum Hole Depth: 2"
-
Minimum Insertion: 2"
-
Material(s): Hot-Dip Galvanized Steel
-
Finish: Hot-Dip Galvanized
-
Bit Dimensions: 1/2"
-
Concrete Drill Bit Included: Not Included
-
Standards and Certifications: ACQ Treatment
-
Specific Application: Concrete
-
Advantages and Benefits:
• Provides an alternative to typical wedge or sleeve with the benefit of a nicer fit and finish.
• Grips concrete without using compression; ideal for crack concrete situations or use near an edge, where wedges or sleeves cannot be used.
• Easy to remove (ideal for construction site safety railings).
• Length and size head markings allow for easy on-site inspection.
• Silver-Chem finish provides exceptional corrosion resistance and ACQ resistance (pressure treated wood chemical).
• Locking serrations under the head prevent back-out and increase resistance to vibration.
• Top strength: high pull-out and shear values.
• Low torque installation.
• Installs using standard ANSI masonry drill bits.
