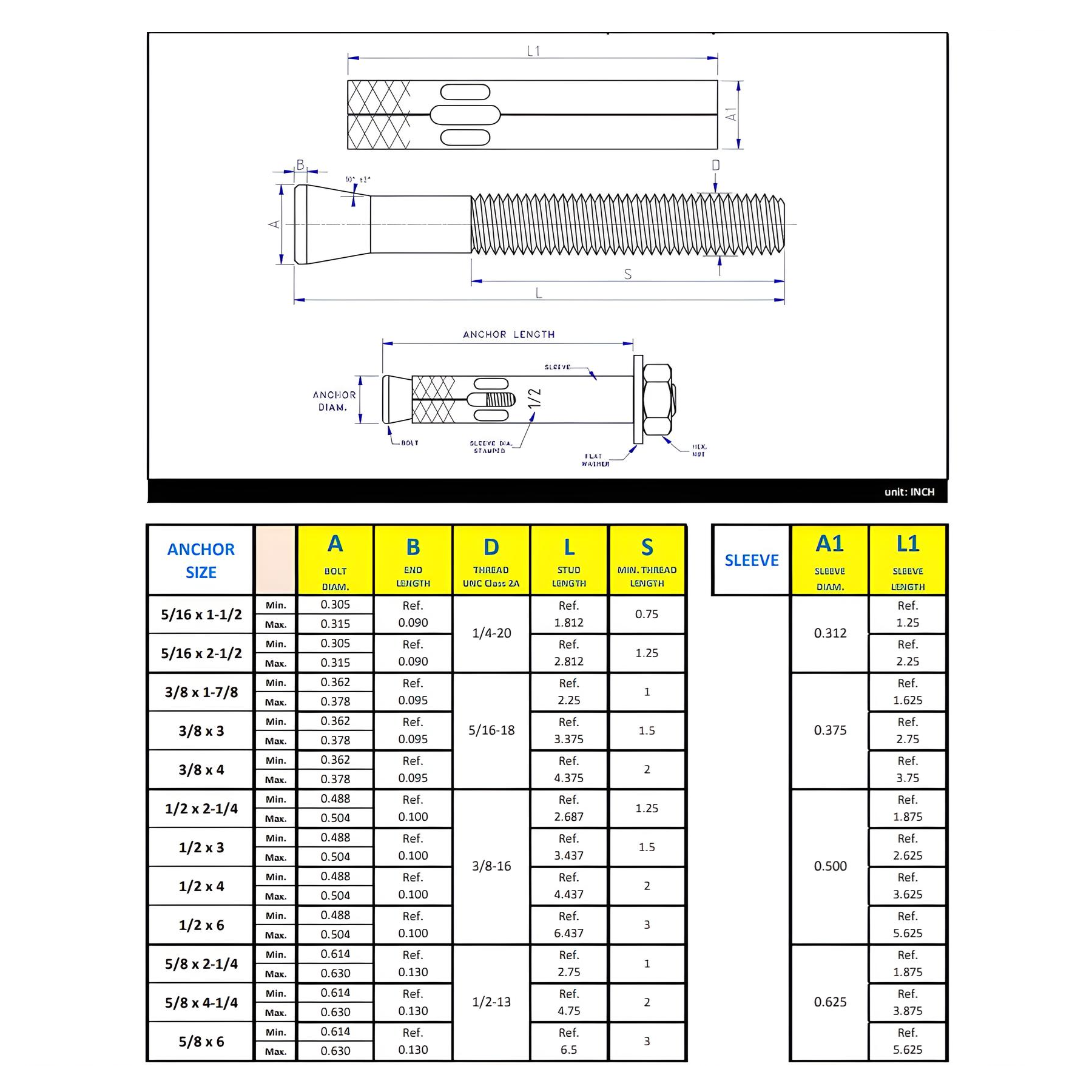

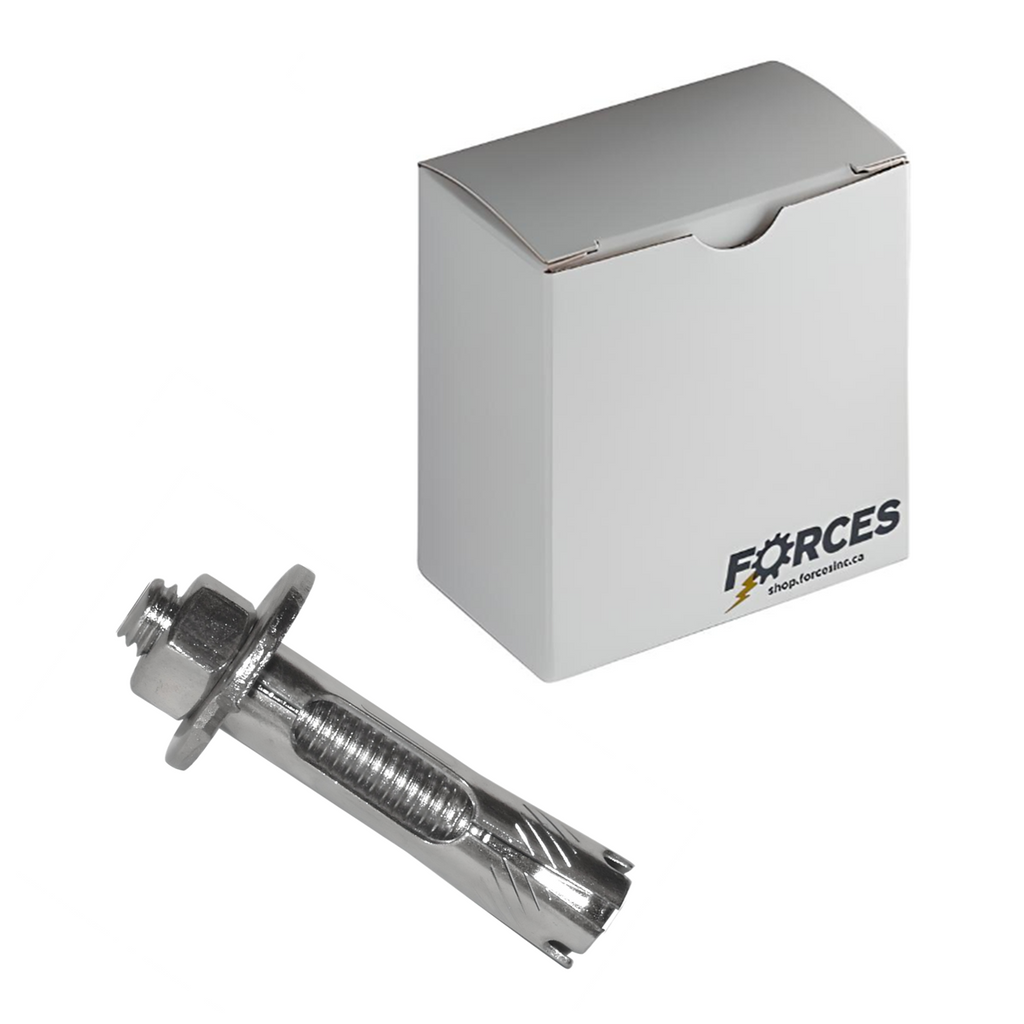

Product Details : 1/2" x 3" Sleeve Anchor - Stainless Steel 18-8
-
Product Type: Sleeve Anchor
-
Drill Size: 1/2"
-
Diameter: 1/2"
-
Bolt-Size: 3/8"
-
Length: 3"
-
Thread-Length: 1-1/2"
-
Load Capacity - Wall Mounted/Concrete: 587 kg
-
Load Capacity - Ceiling Mounted/Concrete: 532 kg
-
2000 PSI Concrete -Pull Out (lbs): 1676
-
2000 PSI Concrete -Shear (lbs): 3645
-
Important Information: As a safety factor, industry standards recommend using 25% of the ultimate load (Break Point). Ultimate load in 2000 PSI concrete.
-
Material(s): Stainless Steel 18-8
For any information about products, please contact us.
*Photos for reference purposes only.
