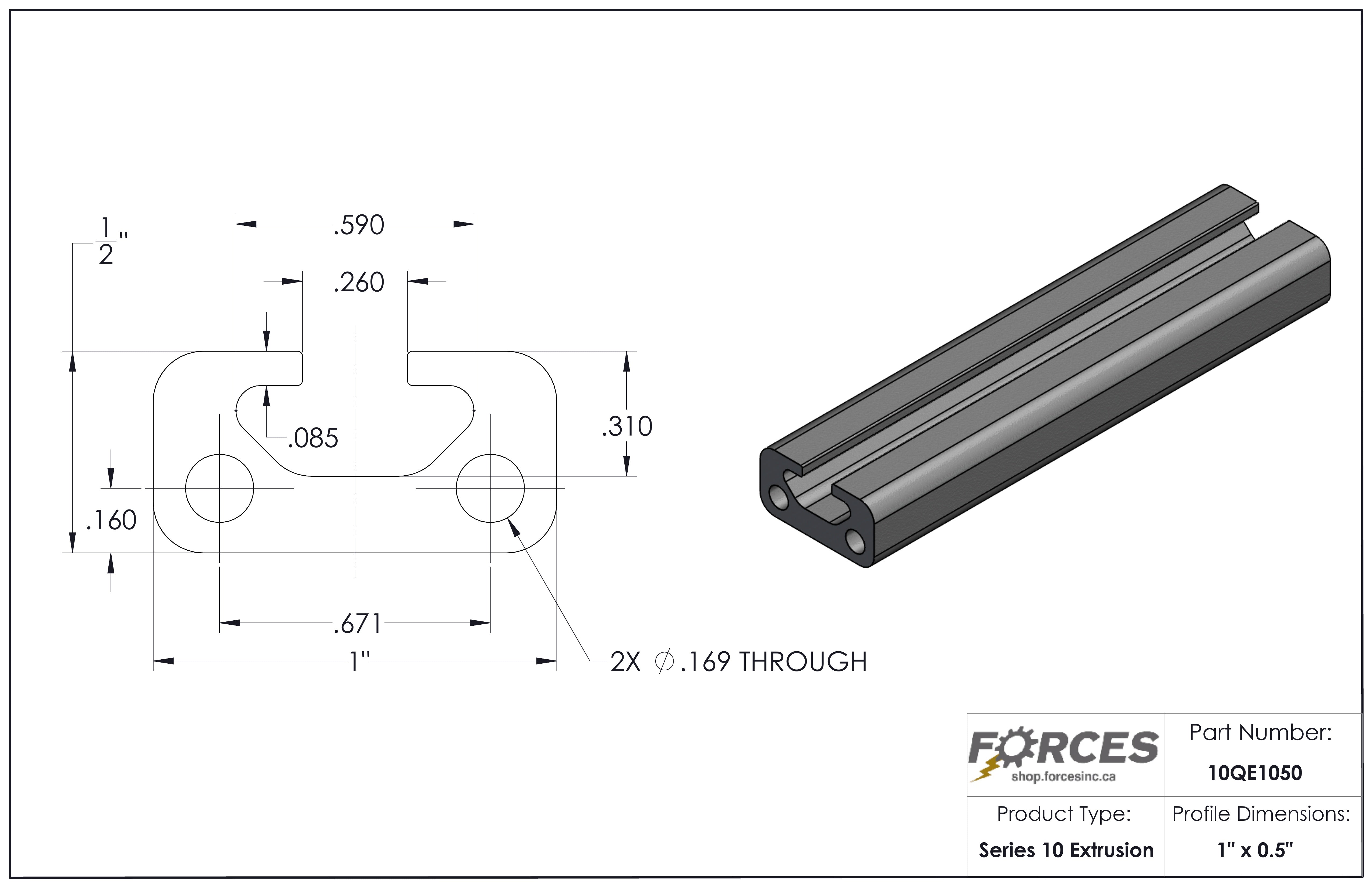

• Aluminum Extrusion Drawing PDF

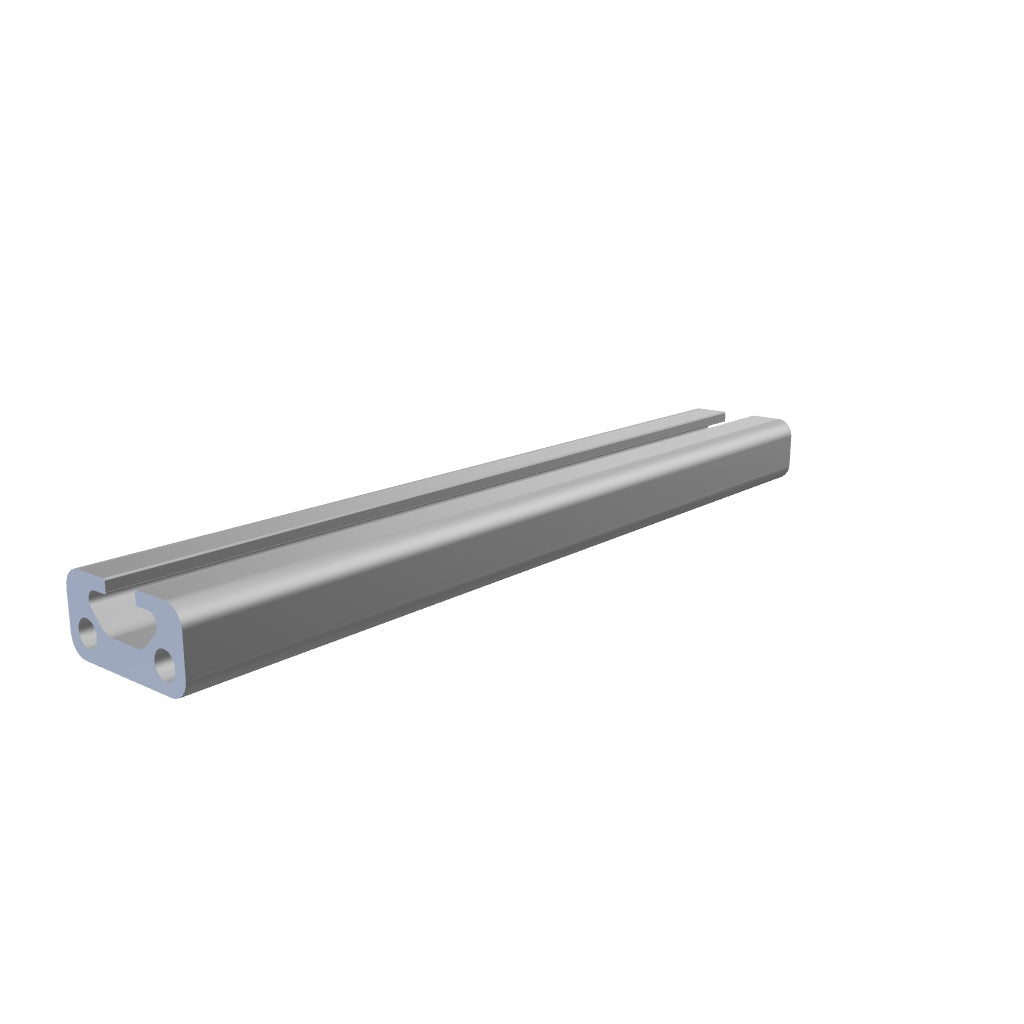

Product Details : 1" x 0.5" Smooth T-Slotted Aluminum Extrusion
-
Part No: 10QE1050
-
Product Type: Series 10 Extrusion
-
Profile Dimensions: 1" x 0.5"
-
Profile Style: Mono Slot
-
Rail Shape: Single
-
Color: Clear
- Estimated Area: 0.320 in2
- Moment of Inertia IX: 0.0074 in4
- Moment of Inertia IY: 0.0323 in4
-
Finish: Anodize
-
Material(s): Aluminum
-
Weight (lbs/ft): 0.375
For any information about products, please contact us.

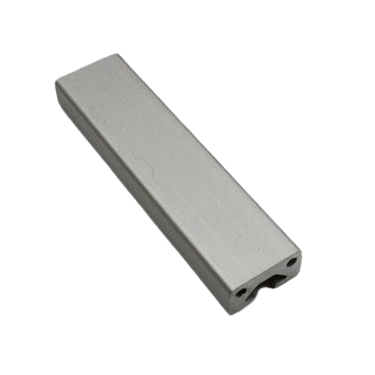

*Photos for reference purposes only.
***All aluminum extrusion bars are cut to custom lengths for each order, therefore they are not eligible for a refund unless the received parts are not what were ordered. Also, all aluminum extrusion are subject to a delay of 3-5 business days for fabrication.***
