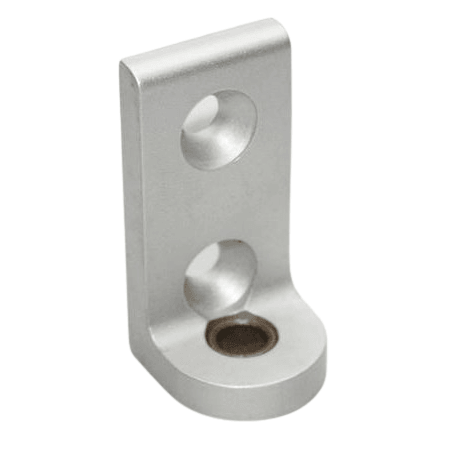

10 Series "L" Dynamic Pivot Arm
Details & Specifications
-
Part No: 10HI8313
-
Series: 10 Series
-

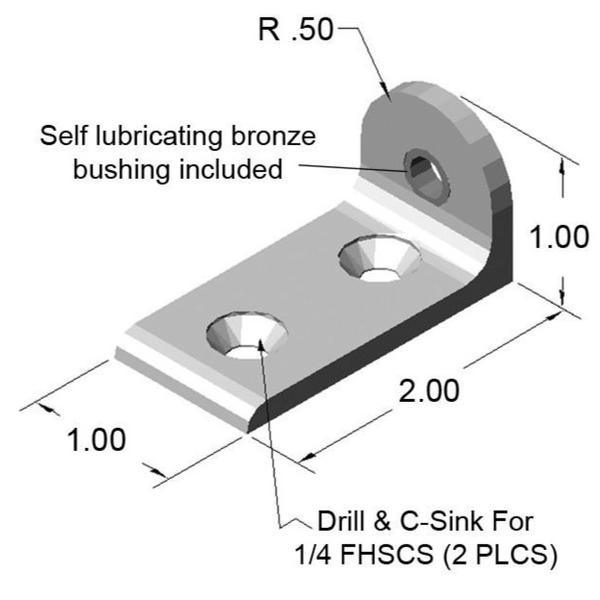

Dimensions in Inch: 2.00 × 1.00 × 0.188
-
Weight Lbs: 0,1
- These parts are equivalent to the following manufacturers:
- 80/20 #4172
- T-SLOTS #653105
- Frame-World #11-107
- The parts are used for when you need angular adjustment in your builds.
- Typically combined with double nub (10HI8317), 0° nub (10HI8300) or 90° nub (10HI8302).
- Living Hinge Fastener Kit (#10HI8320) must be purchased for this dynamic part
- These parts will fit in any 10 Series / models of extrusions.
- The following hardware is included with each nub:
- (2x) 1/4-20 x 1/2" FHSCS & (2x) 10FA3121 Economy T-nut
For any information about products, please contact us.
*Photos for reference purposes only.
