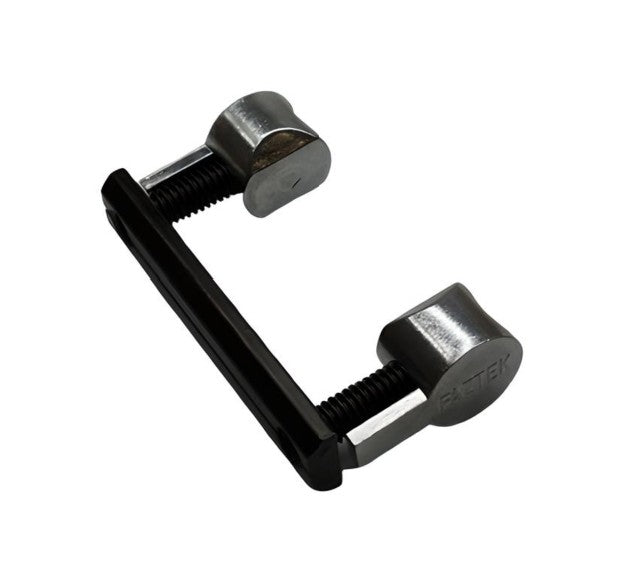

10 Series Long Double Anchor Fastener Assembly
Details & Specifications
-
Part No: 10FAC3884
-
Series: 10 Series
-
Thread Size: 10-32
-
Weight Lbs: 0,07
- These parts are 100% equivalent to the following manufacturers:
- 80/20 #3092
- T-SLOTS / Futura #651038
- McMaster #3136N242
- These Anchor Fasteners are a great way to connect two 10 Series T-Slotted extrusions together at 90°.
- They allow for easy positioning and re-positioning of the extrusions with a 5/32" Ball-End Allen Key.
-
Each assembly includes (2) Zinc Anchor Fastener Cams, (2) #10-32 x 3/4″ Socket Head Cap Screws, and (1) #10-32 Double Anchor Standard T-Nut.
For any information about products, please contact us.
*Photos for reference purposes only.
