10 Series Standard Straight Pivot Arm
Details & Specifications
-
Part No: 10HI8315
-
Series: 10 Series
-
Dimensions in Inch: 1.00 × 3.00 × 0.188
-
Weight Lbs: 0,1
- These parts are equivalent to the following manufacturers:
- 80/20 #4196
- T-SLOTS #653199
- Frame-World #11-11
- The parts are used for when you need angular adjustment in your builds.

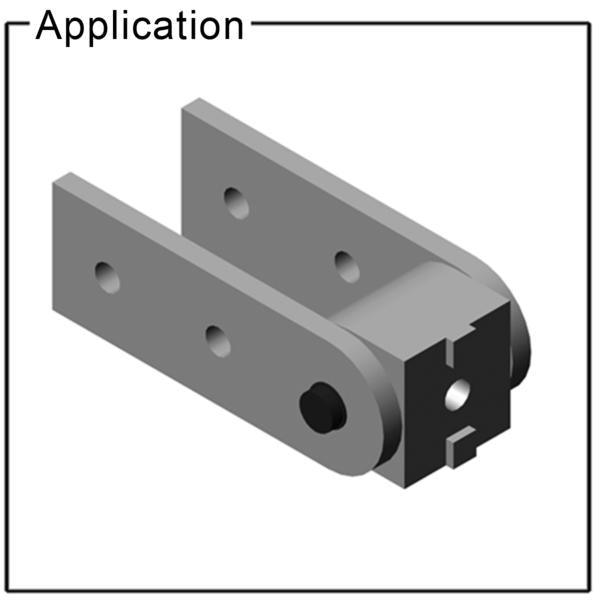

- Typically combined with double nub (10HI8306), 0° nub (10HI8308) or 90° nub (10HI8310).
- These parts will fit in any 10 Series / models of extrusions.
- The following hardware is included with each nub:
- (3x) 1/4-20 x 1/2" BHSC & (2x) 10FA3121 Economy T-nut
For any information about products, please contact us.
*Photos for reference purposes only.
