10 Series Universal Static Pivot Nub
Details & Specifications
-
Part No: 10HI8306
-
Series: 10 Series
-
Dimensions in Inch: 2.00 × 1.00 × 1.00
-
Weight Lbs: 0,21
- These Nubs are equivalent to the following manufacturers:
- 80/20 #4186
- T-SLOTS #653115
- Frame-World #11-9

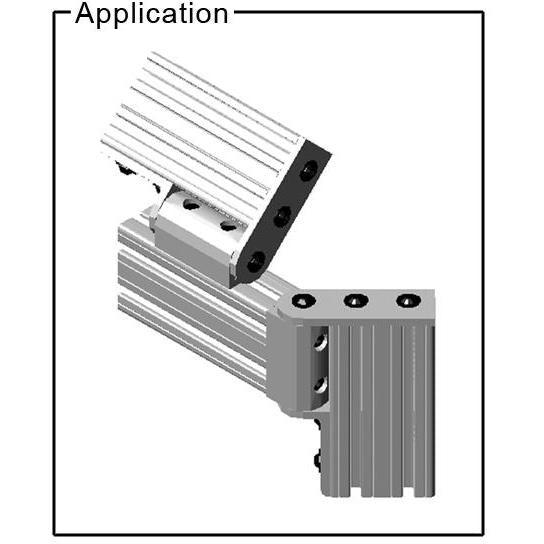

- The nubs are used for when you need angular adjustment in your builds.
- Typically combined with straight-pivot (10HI8315) and L-pivot (10HI8312) arms.
- These Nubs will fit in any 10 Series / models of extrusions.
- The following hardware is included with each nub:
- (2x) 1/4-20 x 1" SHSC & (2x) 10FA3121 Economy T-nut
For any information about products, please contact us.
*Photos for reference purposes only.
