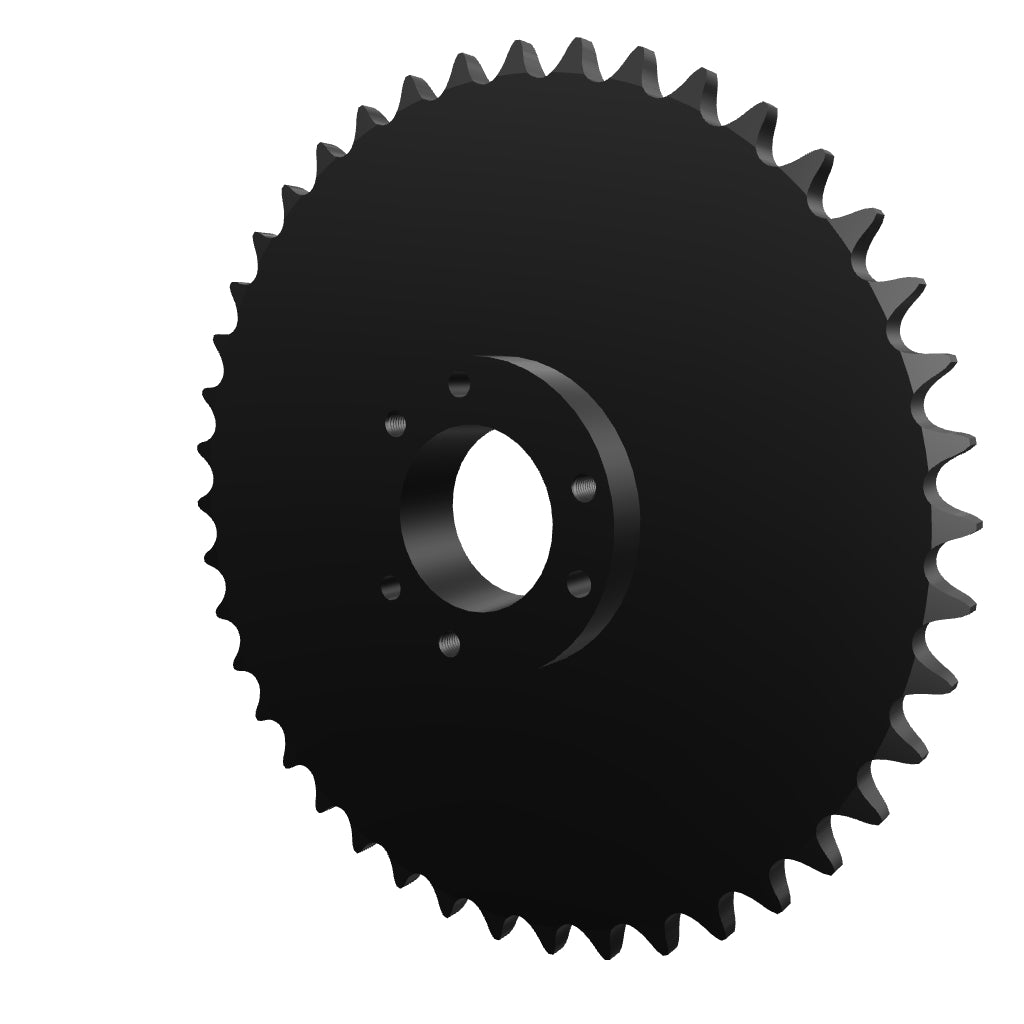

100E42 Taper Bushed Sprocket E Bushing

• QD Bushed Sprockets PDF

Product Details : 100E42 Taper Bushed Sprocket E Bushing

• Part No: 100E42
• Product Type: QD (Bushing)
• Bushing: E
• Type: B1
• Chain Strand Type: Single
• ANSI Chain Size: 100
• No. Of Teeth: 42
• Pitch: 1-1/4"
• Pitch Diameter: 16.727"
• Outside Diameter: 17.430"
• Bore Max.: 3-1/2"
• Dimension "L1": 2-5/8"
• Dimension "L2": 2-15/16"
• Dimension "C": 6"
• Dimension "Y": 1-13/16"
• Dimension "G": 15/16"
• Dimension "X": 1-5/8"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 43.3998

For any information about products, please contact us.

*Photos for reference purposes only.
