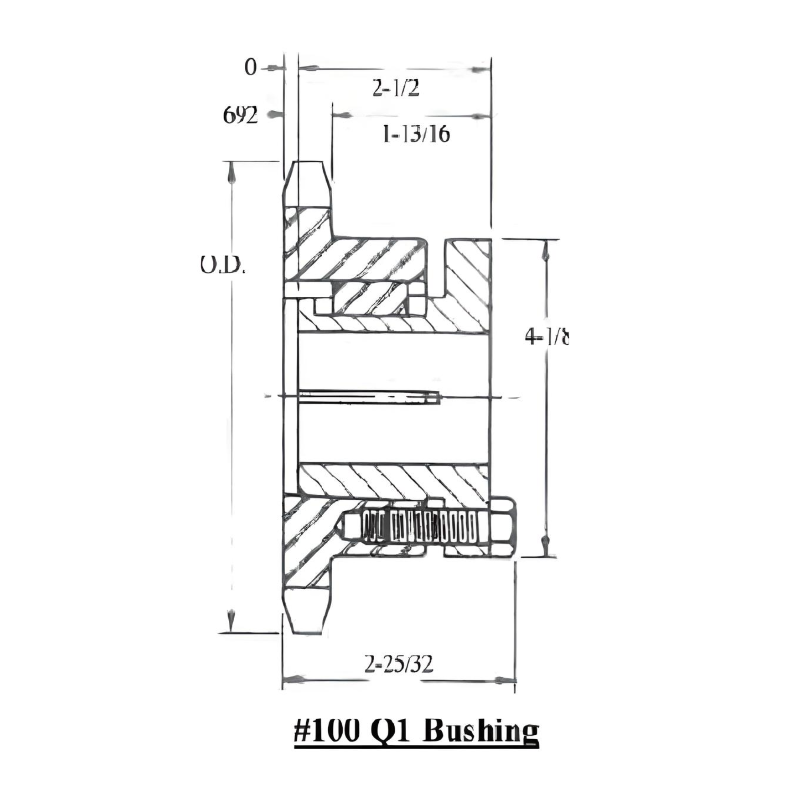

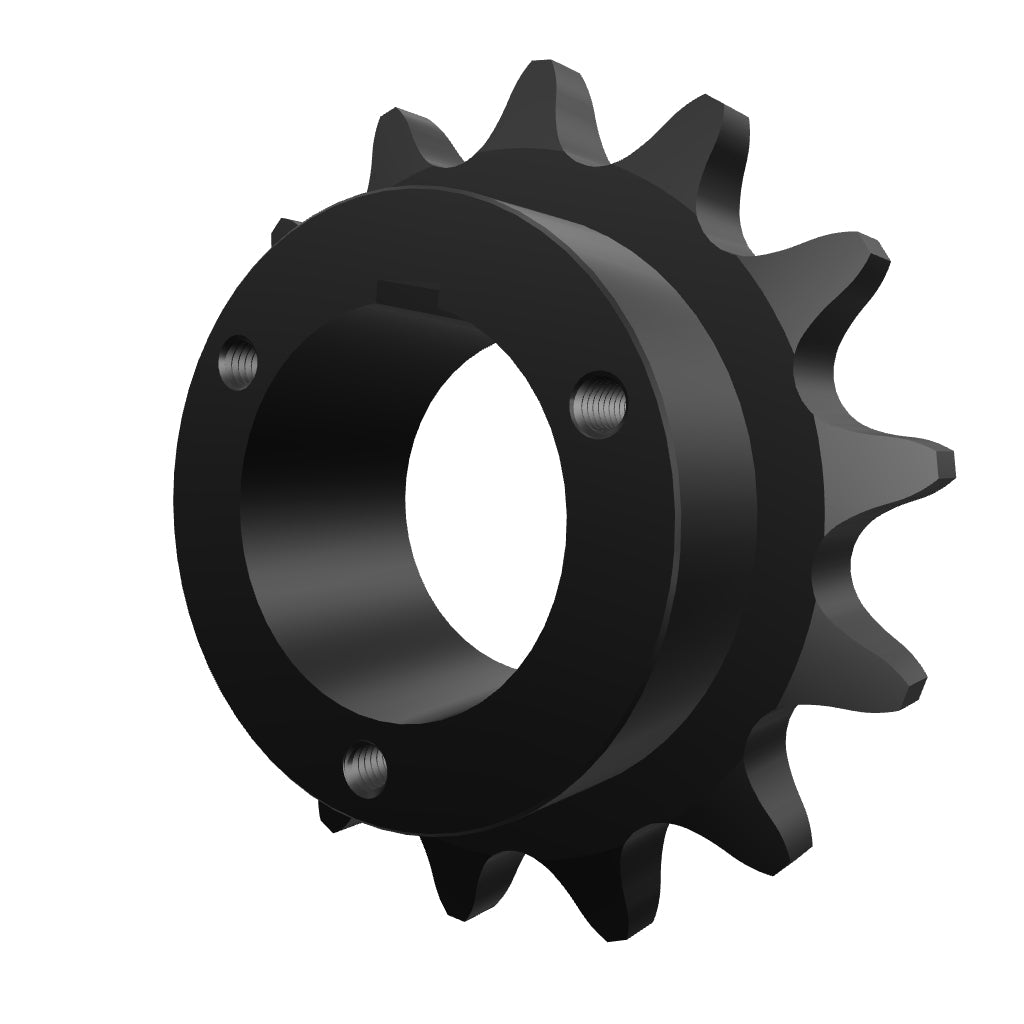

Product Details : 100Q14 Split Taper Bushed Sprocket | 100Q14H
-
Part No: 100Q14H
-
Product Type: ST (Split Taper)
-
Bushing Type: Q1
-
Chain Strand Type: Single
-
ANSI Chain Size: 100
-
No. Of Teeth: 14
-
Pitch: 1-1/4"
-
Pitch Diameter: 5.617"
-
Outside Diameter: 6.230"
-
Bore Max.: 2-11/16"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 5.6
For any information about products, please contact us.
*Photos for reference purposes only.
