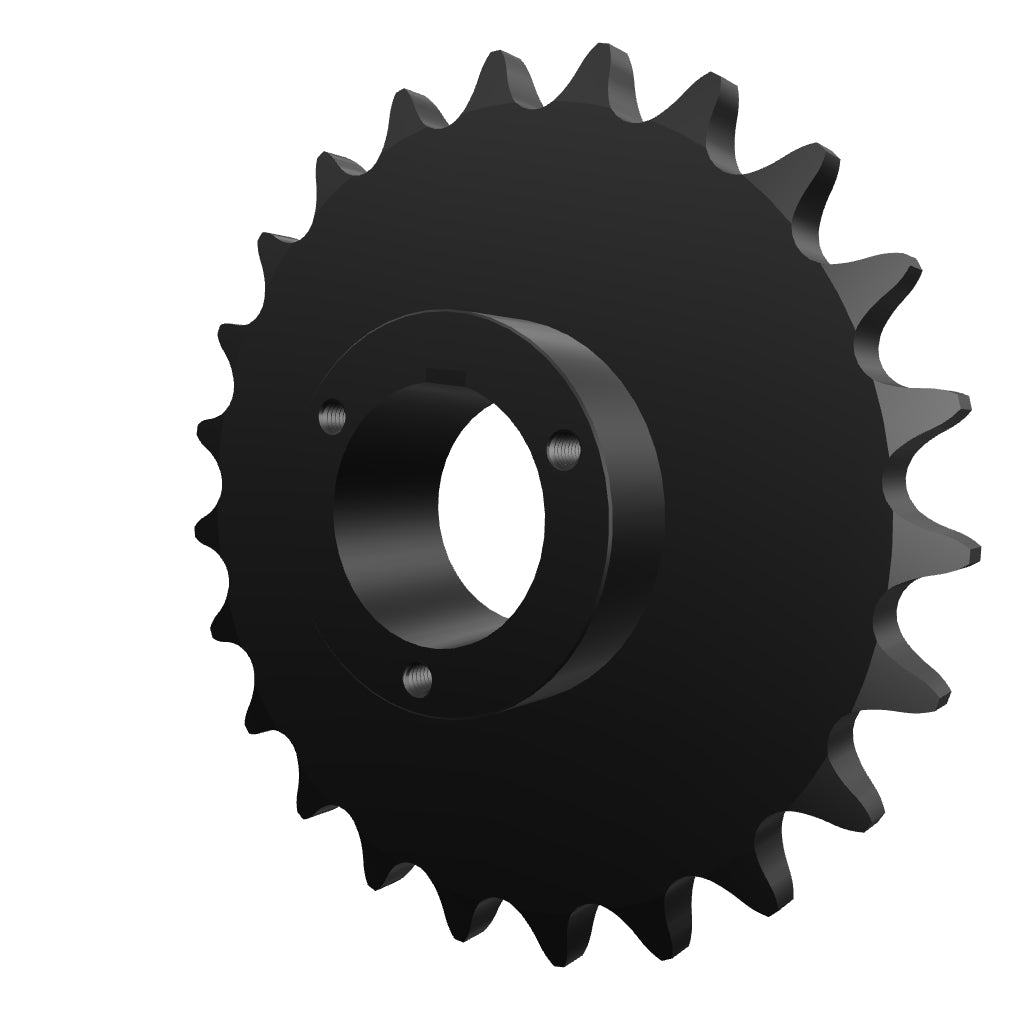

Product Details : 100Q23 Split Taper Bushed Sprocket | 100Q23H
-
Part No: 100Q23H
-
Product Type: ST (Split Taper)
-

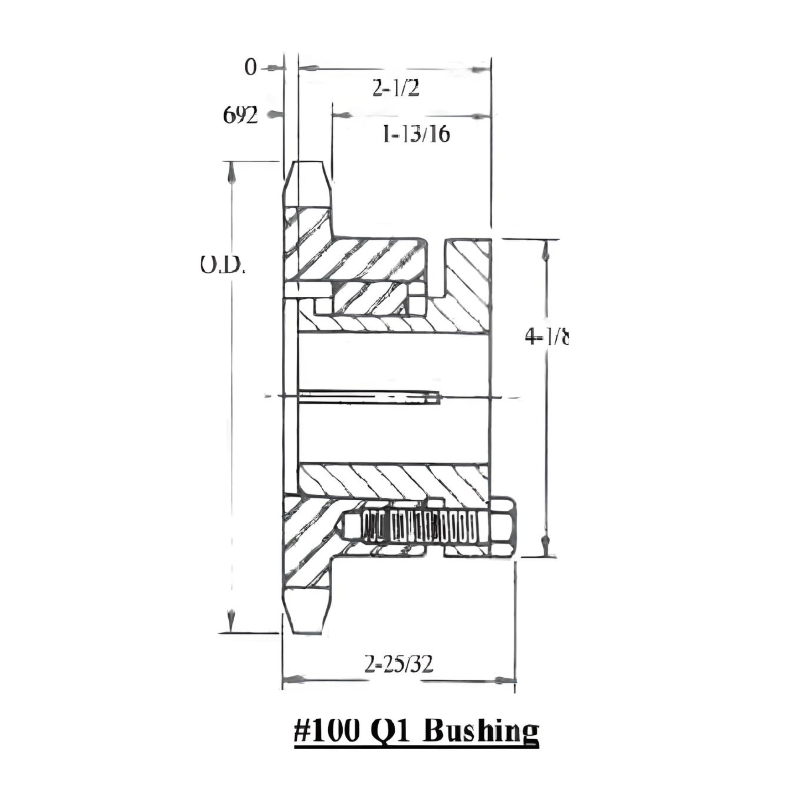

Bushing Type: Q1
-
Chain Strand Type: Single
-
ANSI Chain Size: 100
-
No. Of Teeth: 23
-
Pitch: 1-1/4"
-
Pitch Diameter: 9.180"
-
Outside Diameter: 9.850"
-
Bore Max.: 2-11/16"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 13.8999
For any information about products, please contact us.
*Photos for reference purposes only.
