Description

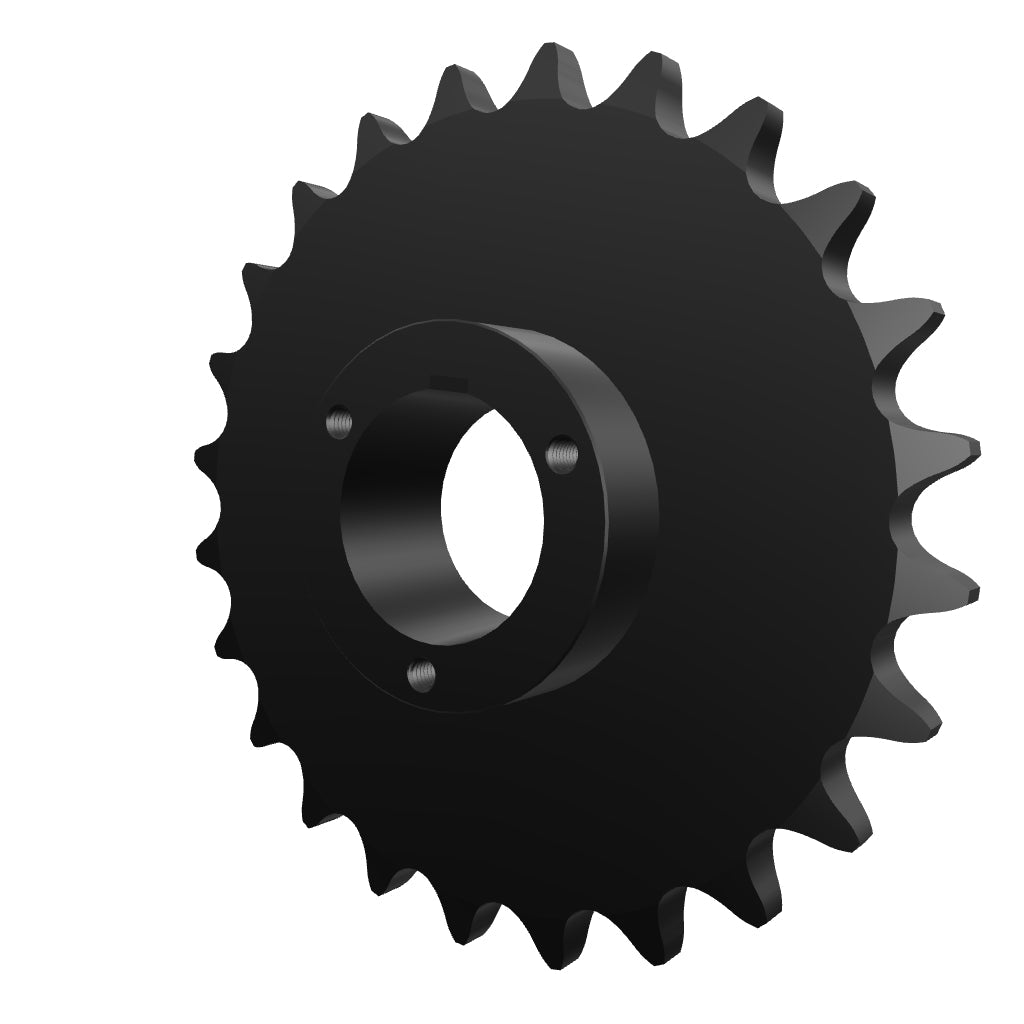

Product Details : 100Q24 Split Taper Bushed Sprocket | 100Q24H
- Part No: 100Q24H
- Product Type: ST (Split Taper)

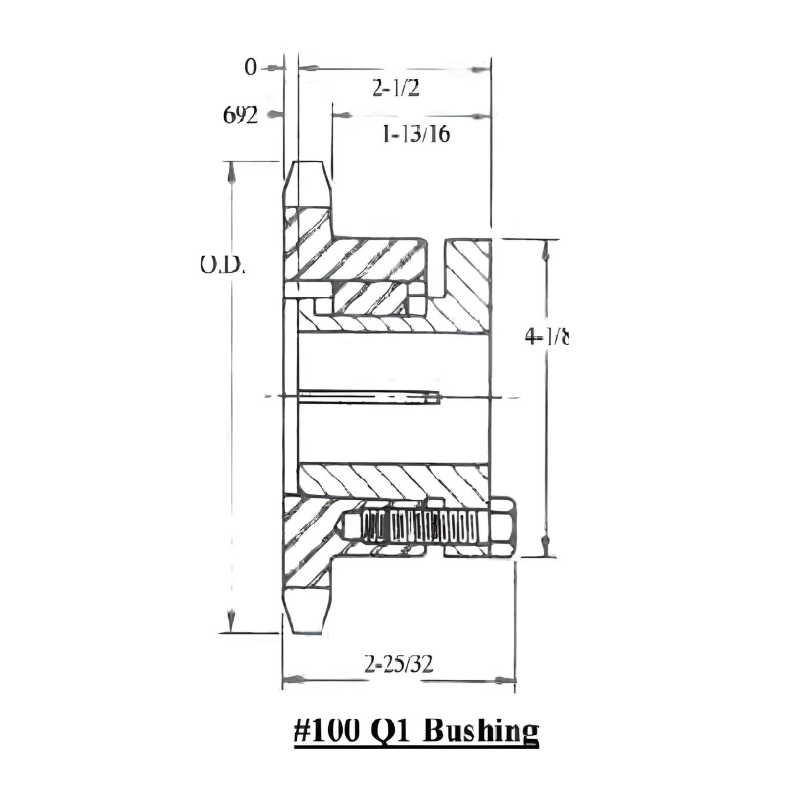

- Bushing Type: Q1
- Chain Strand Type: Single
- ANSI Chain Size: 100
- No. Of Teeth: 24
- Pitch: 1-1/4"
- Pitch Diameter: 9.577"
- Outside Diameter: 10.250"
- Bore Max.: 2-11/16"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 15.4999
For any information about products, please contact us.
*Photos for reference purposes only.
