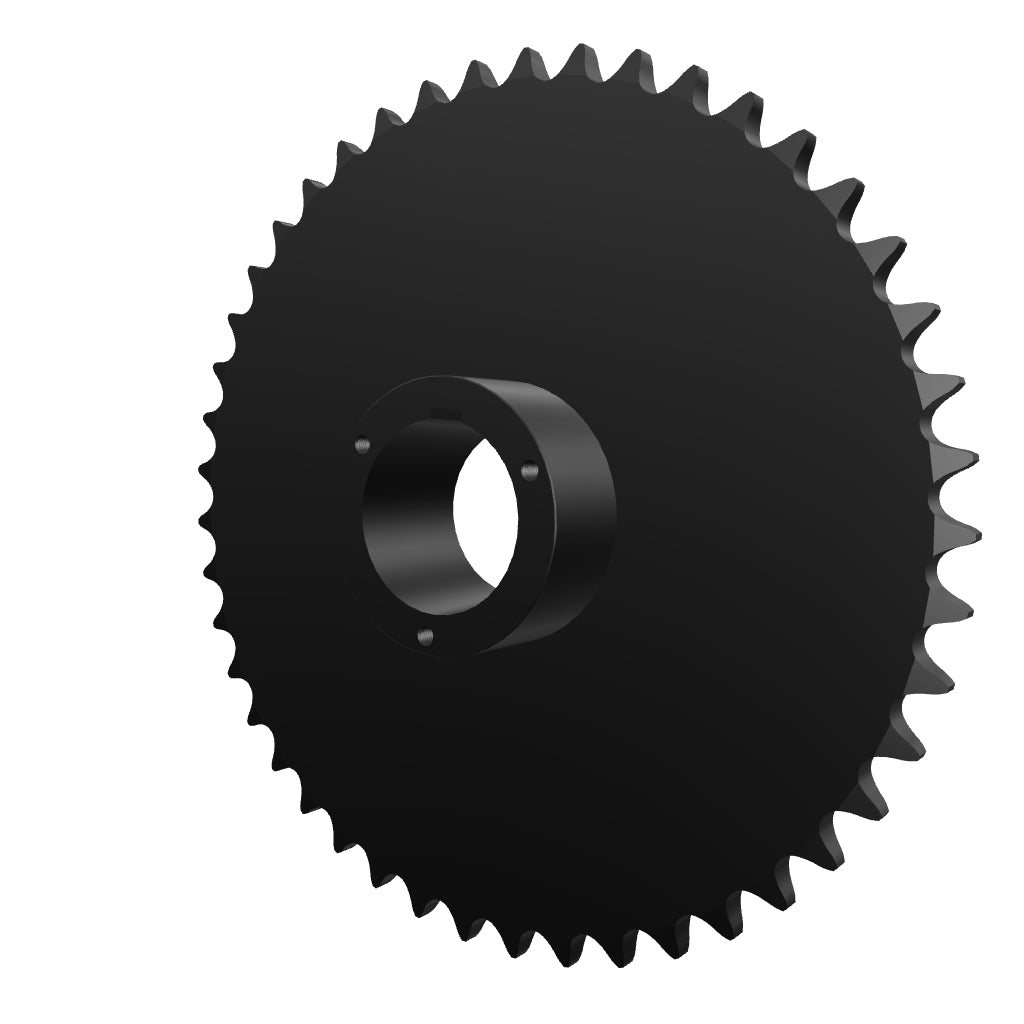

Product Details : 100R45 Split Taper Bushed Sprocket
-
Part No: 100R45
-
Product Type: ST (Split Taper)
-
Bushing Type: R1
-
Chain Strand Type: Single
-
ANSI Chain Size: 100
-
No. Of Teeth: 45
-
Pitch: 1-1/4"
-
Pitch Diameter: 17.919"
-
Outside Diameter: 18.630"
-
Bore Max.: 3-3/4"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 50.5
For any information about products, please contact us.
*Photos for reference purposes only.
