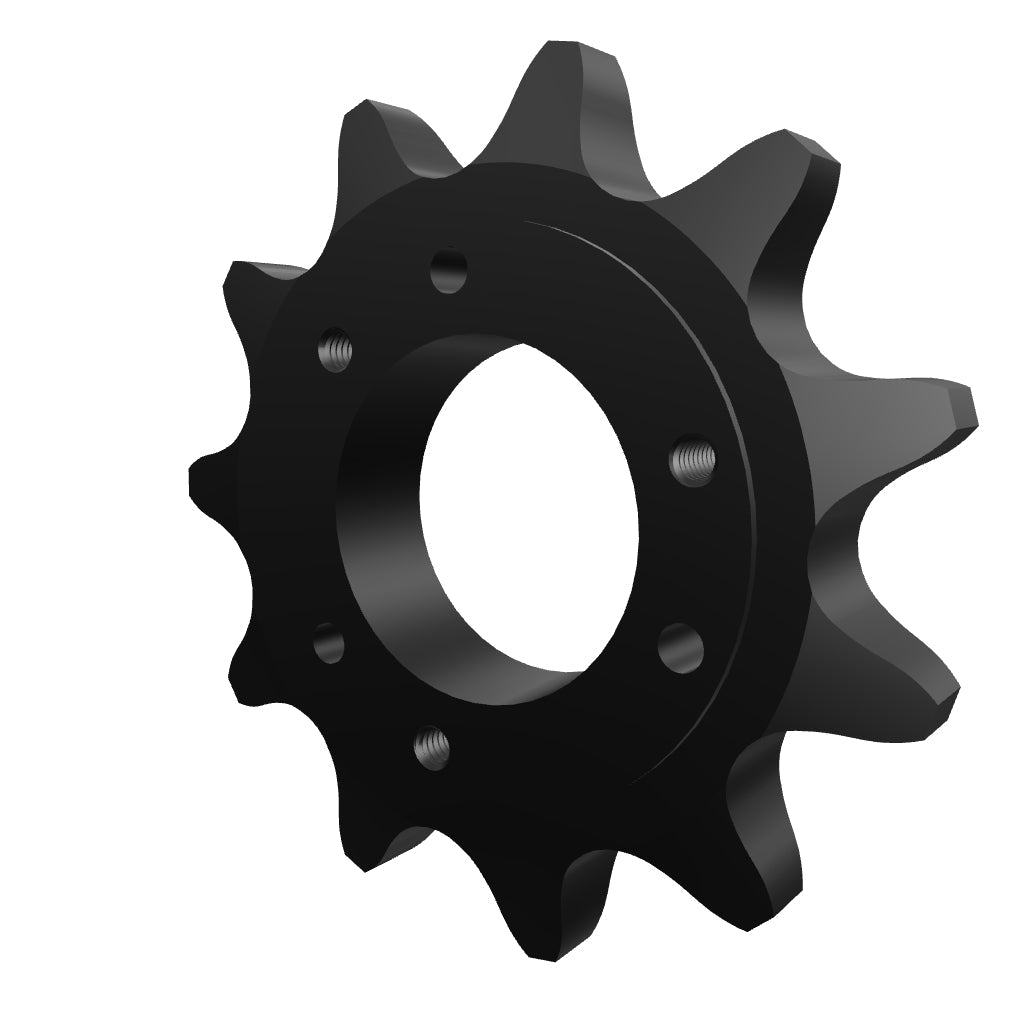

100SDS11 Taper Bushed Sprocket SDS Bushing | 100SDS11H

Product Details : 100SDS11 Taper Bushed Sprocket SDS Bushing | 100SDS11H

• Part No: 100SDS11H
• Product Type: QD (Bushing)
• Bushing: SDS
• Type: B
• Chain Strand Type: Single
• ANSI Chain Size: 100
• No. Of Teeth: 11
• Pitch: 1-1/4"
• Pitch Diameter: 4.437"
• Outside Diameter: 5.010"
• Bore Max.: 2"
• Dimension "L1": 1-1/2"
• Dimension "L2": 1-1/2"
• Dimension "C": 3-3/16"
• Dimension "Y": 5/8"
• Dimension "G": 1/16"
• Dimension "X": 3/4"
• Material(s): Carbon Steel
• Hardened Teeth: Yes
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 2
