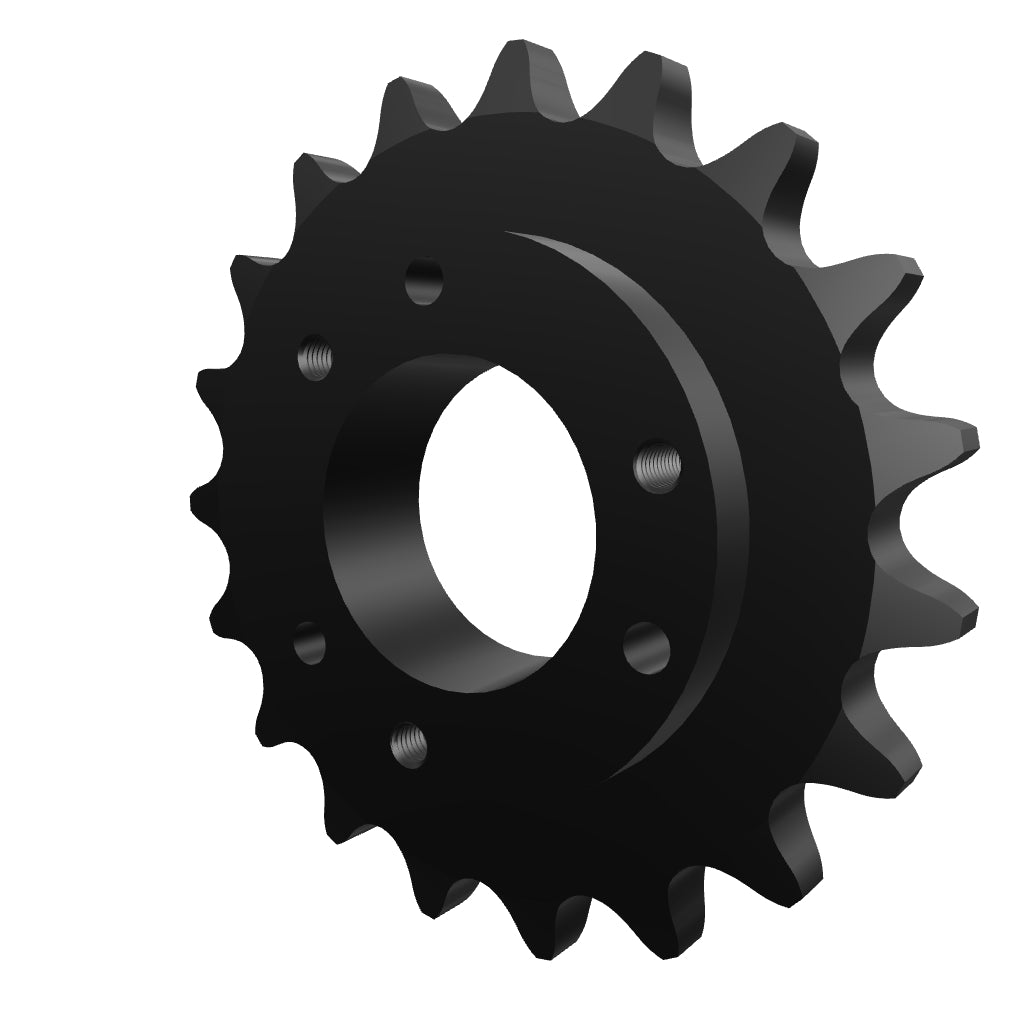

Product Details : 120E19 Taper Bushed Sprocket E Bushing | 120E19H
-
Part No: 120E19H
-
Product Type: QD (Bushing)
-
Bushing: E
-
Type: B1
-
Chain Strand Type: Single
-
ANSI Chain Size: 120
-
No. Of Teeth: 19
-
Pitch: 1-1/4"
-
Pitch Diameter: 9.113"
-
Outside Diameter: 9.890"
-
Bore Max.: 3-1/2"
-
Dimension "L1": 2-5/8"
-
Dimension "L2": 2-15/16"
-
Dimension "C": 6"
-
Dimension "Y": 1-9/16"
-
Dimension "G": 45/64"
-
Dimension "X": 1-5/8"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 16.5
For any information about products, please contact us.
*Photos for reference purposes only.
