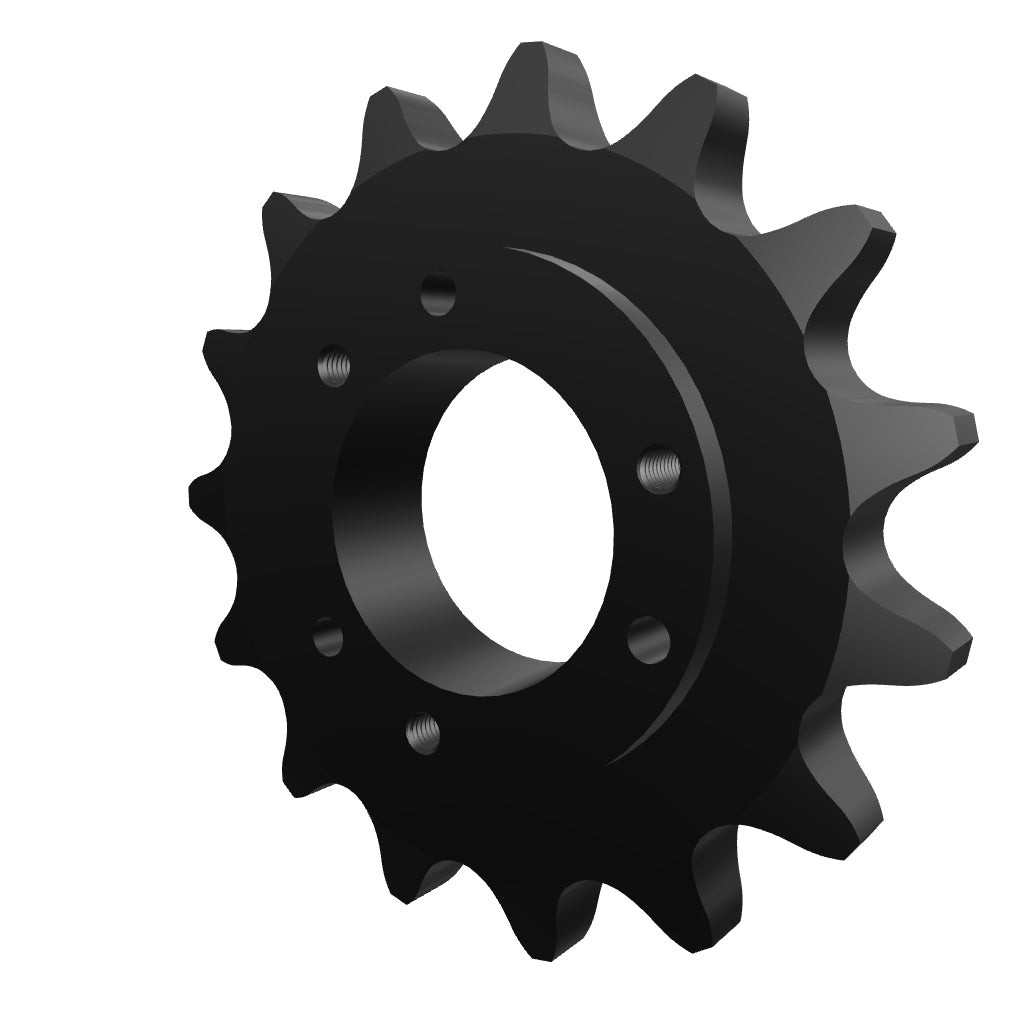

120SF15 Taper Bushed Sprocket SF Bushing | 120SF15H

Product Details : 120SF15 Taper Bushed Sprocket SF Bushing | 120SF15H

• Part No: 120SF15H
• Product Type: QD (Bushing)
• Bushing: SF
• Type: B
• Chain Strand Type: Single
• ANSI Chain Size: 120
• No. Of Teeth: 15
• Pitch: 1-1/4"
• Pitch Diameter: 7.215"
• Outside Diameter: 7.960"
• Bore Max.: 2-15/16"
• Dimension "L1": 2-1/4"
• Dimension "L2": 2-1/4"
• Dimension "C": 4-5/8"
• Dimension "Y": 1-5/64"
• Dimension "G": 21/64"
• Dimension "X": 1-1/4"
• Material(s): Carbon Steel
• Hardened Teeth: Yes
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 8

For any information about products, please contact us.

*Photos for reference purposes only.
