15 Series | Short Double Anchor Fastener 1.5" Assembly

15 Series | Short Double Anchor Fastener 1.5" Assembly

Details & Specifications

• Part No: 15FAC3882
• Series: 15 Series
• Dimensions in Inch: 1.5 × 0.75 × .75
• Weight Lbs: 0,202
• These parts are 100% equivalent to the following manufacturers of T-Slotted Aluminum Extrusions:
• 80/20 #3098
• T-SLOTS #651044
• Frame-World #EF-63
• These Double Anchor Fastener assemblies are the strongest way to connect two 15 Series T-Slotted extrusions together at 90°.
• They allow for easy positioning and re-positioning of the extrusions with a 1/4? Ball-End Allen Key.

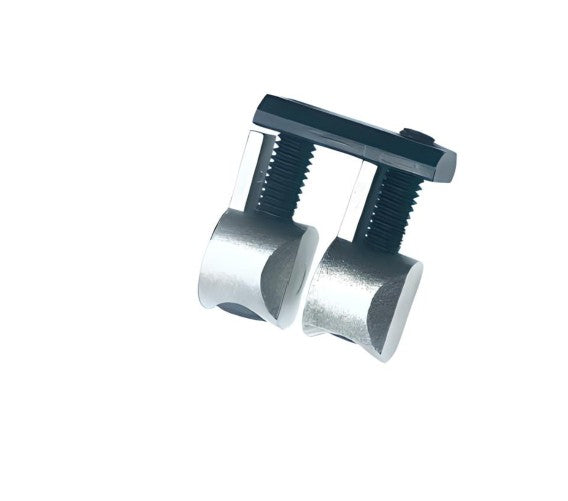

• The assembly includes (2) 15FA3610 Zinc Anchor Fastener Cams, (2) 5/16-18 x 1-1/4? SHCS, and (1) 15FA3516 5/16-18 Short Double Standard T-Nut 1.5".
• The connectors are flush when installed, and provide a very clean and aesthetic look. Ideal when Joining Plates or Corner Brackets cannot be used.

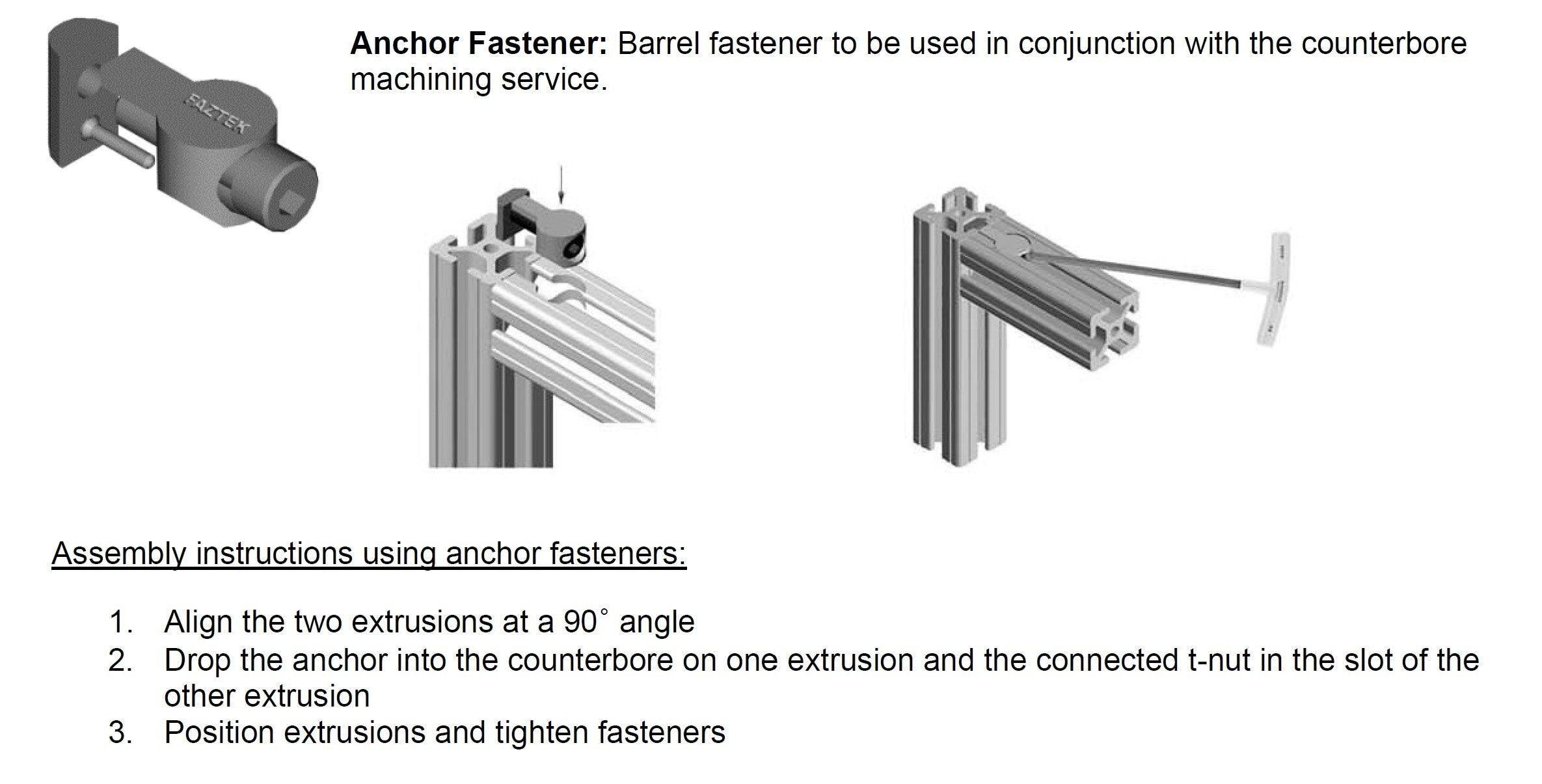

• 15MA9071 Counterbore machining are required to use the anchor fasteners. A Ø0.812? (13/16?) two flute endmill is required to make the counterbore. The counterbore needs to be machined at 0.855? from the edge, and 0.660? deep.

For any information about products, please contact us.

*Photos for reference purposes only.
