15 Series Single Anchor Fastener Assembly
Details & Specifications
-
Series: 15 Series
-
Weight Lbs: 0,1

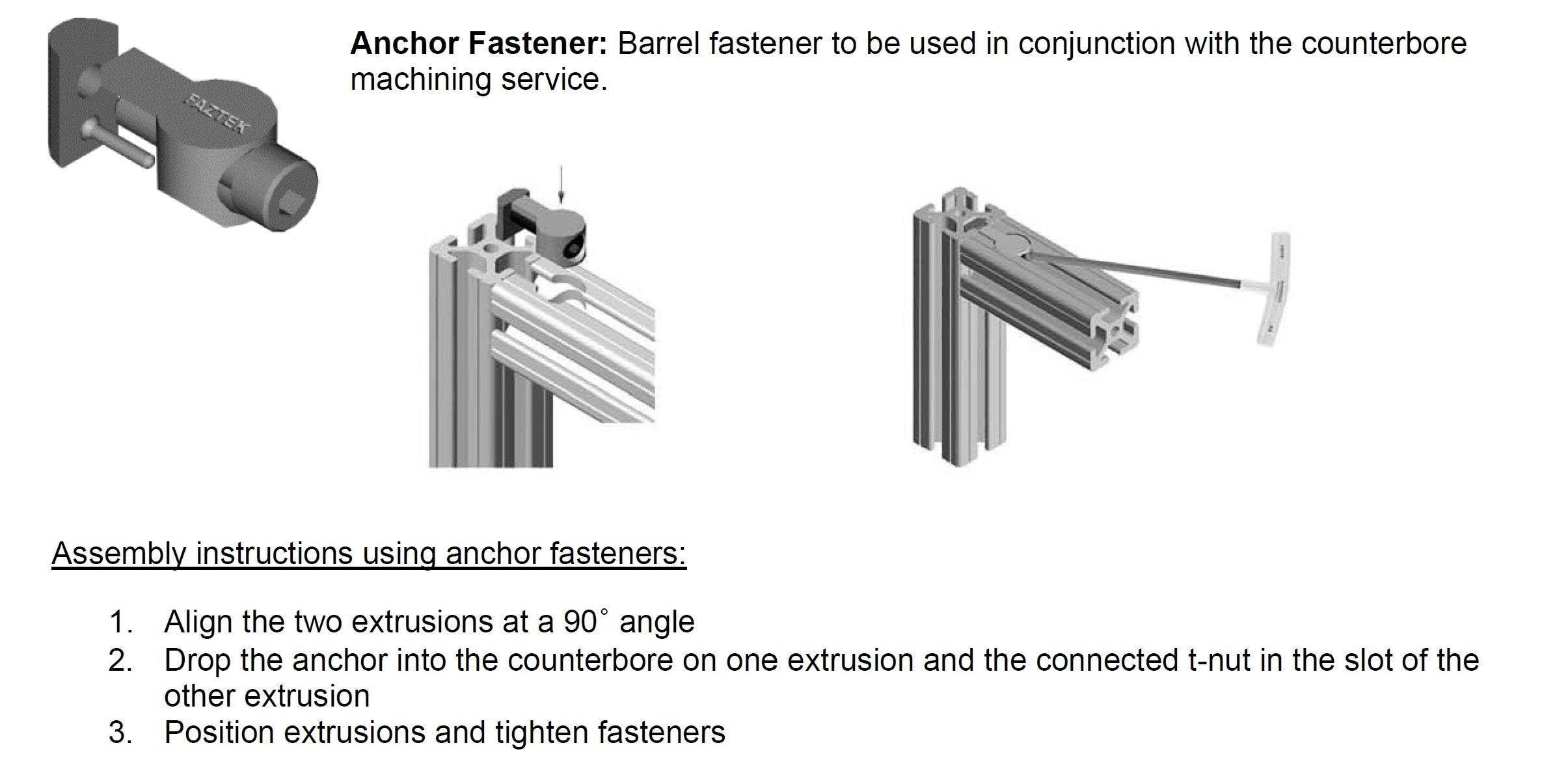

- These Anchor Fasteners are the strongest way to connect two 15 Series T-Slotted extrusions together at 90°.
- They allow for easy positioning and re-positioning of the extrusions with a 1/4" Ball-End Allen Key.

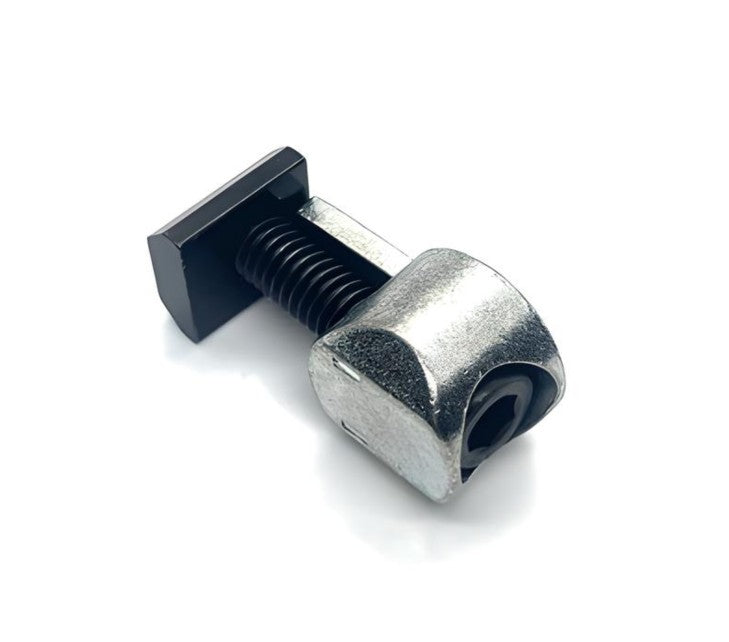

- The 15FAC3880 assembly includes (1) Zinc Anchor Fastener Cam, (1) 5/16"-18 x 1-1/4″ SHCS, and (1) 15FA3503 5/16"-18 Standard T-Nut.
- The 15MFAC3720 assembly includes (1) Zinc Anchor Fastener Cam, (1) M8 x 30 SHCS, and (1) 15MFA3921 M8 x 1.25 Standard T-Nut.
- The connectors are flush when installed, and provide a very clean and aesthetic look. Perfect when Joining Plates or Corner Brackets cannot be used.
- 15MA9071 Counterbore machining are required to use the anchor fasteners. A Ø 0.812" (13/16") two flute endmill is required to make the counterbore. The counterbore needs to be machined at 0.855" from the edge, and 0.660" deep.
