15 Series Single Anchor Fastener w/ Drop-in

15 Series Single Anchor Fastener w/ Drop-in

Details & Specifications

• Series: 15 Series
• Weight Lbs: 0,1

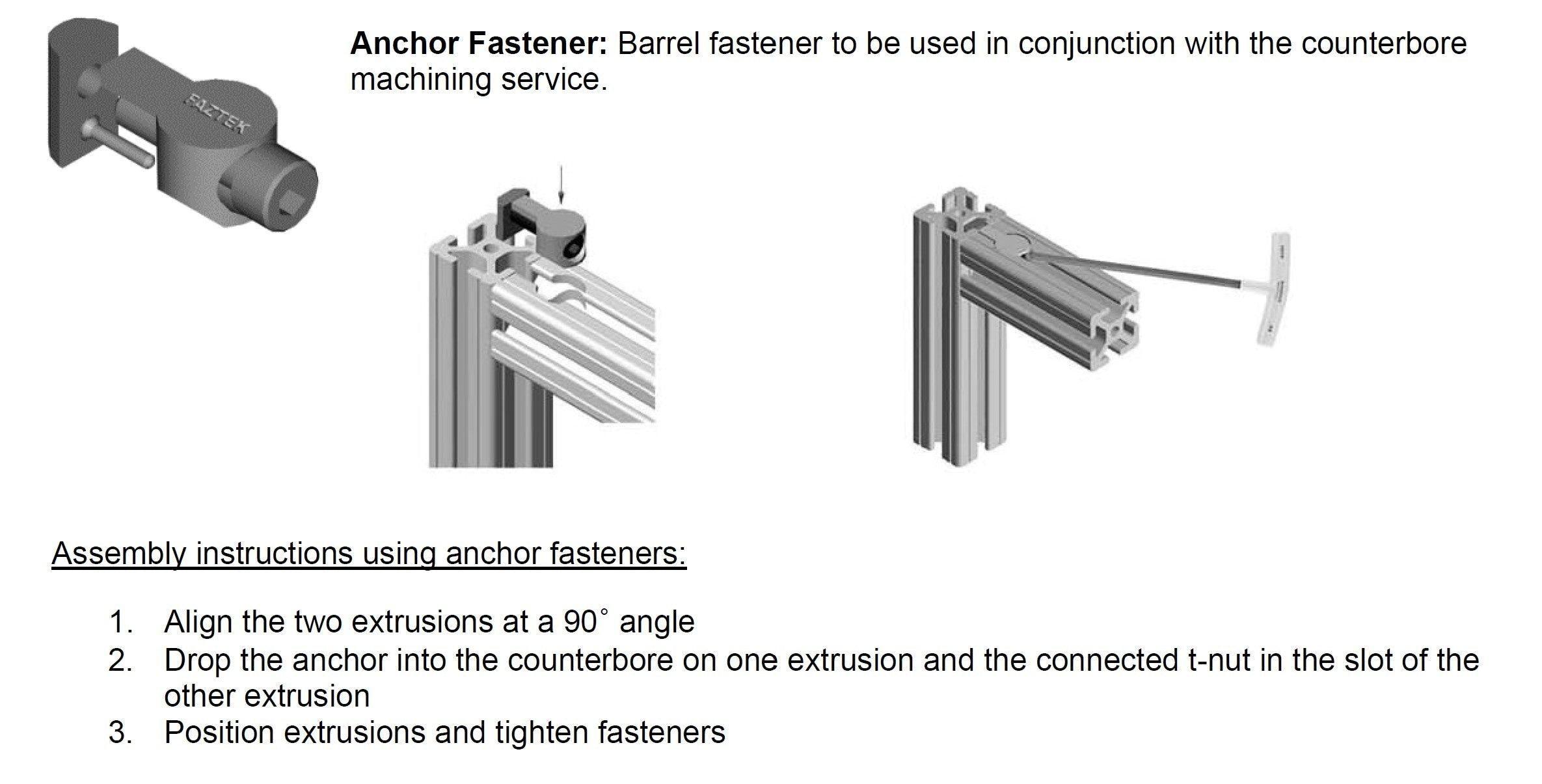

• These Anchor Fasteners are the strongest way to connect two 15 Series T-Slotted extrusions together at 90°.
• They allow for easy positioning and re-positioning of the extrusions with a 1/4" Ball-End Allen Key.

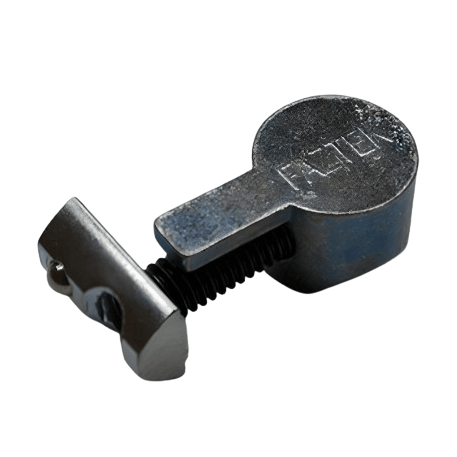

• The 15FAC3888 assembly includes (1) Zinc Anchor Fastener Cam, (1) 5/16"-18 x 1-1/4″ SHCS, and (1) 15FA3511 5/16-18 Drop-In T-Nut.
• The 15MFAC3728 assembly includes (1) Zinc Anchor Fastener Cam, (1) M8 x 30 SHCS, and (1) 15MFA3923 M8 x 1.25 Standard T-Nut.
• The connectors are flush when installed, and provide a very clean and aesthetic look. Perfect when Joining Plates or Corner Brackets cannot be used.

For any information about products, please contact us.

*Photos for reference purposes only.
