Description

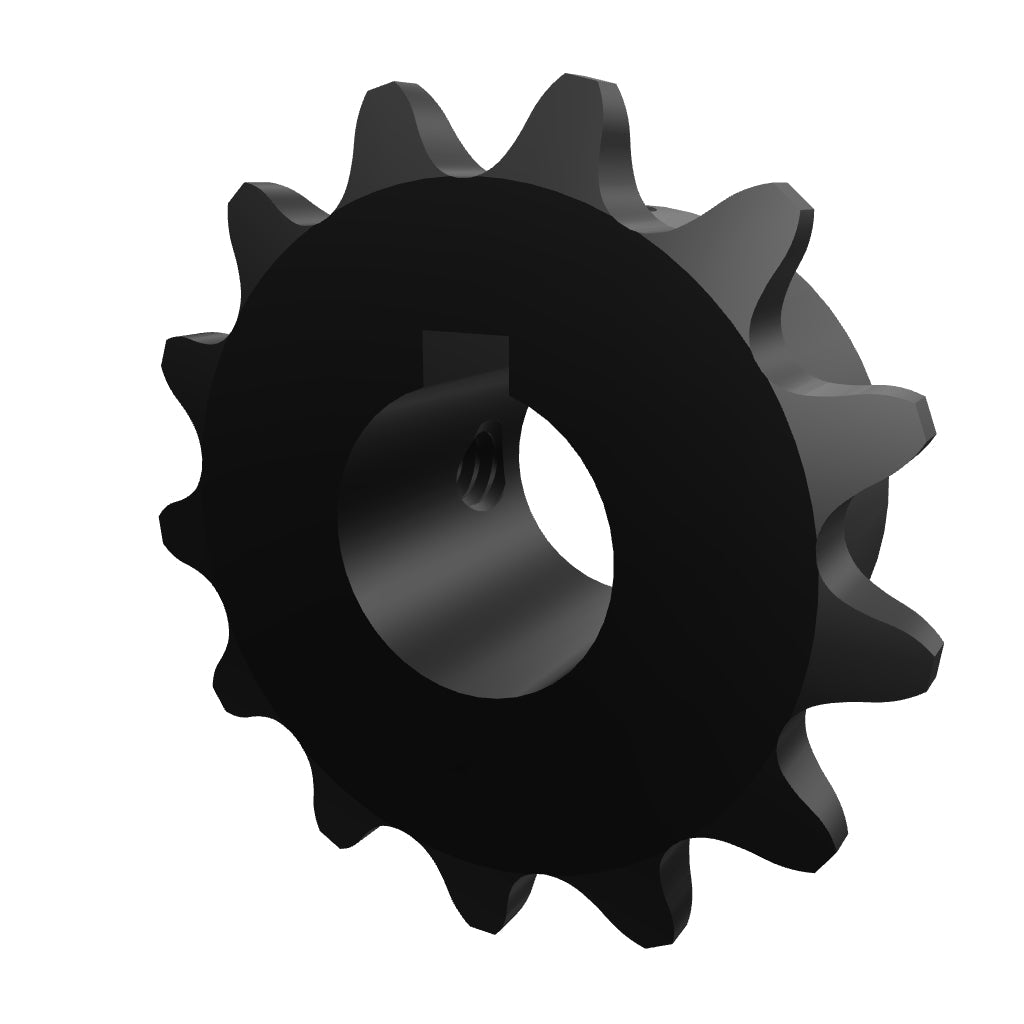

Product Details : 35B13-5/8" Finished Bore Sprocket With Keyway | 35B13H-5/8
- Part No: 35B13H-5/8
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 35
- No. Of Teeth: 13
- Shaft Diameter: 5/8"
- Pitch: 3/8"
- Pitch Diameter: 1.567"
- Outside Diameter: 1.750"
- Tooth Thickness: 0.168"
- Hub Diameter: 1.250"
- Length Thru Bore: 3/4"
- Square Key Width: 3/16"
- Square Key Depth: 3/32"
- No. Of Set Screws: 2
- Set Screw Size: 1/4"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 0.2
For any information about products, please contact us.
*Photos for reference purposes only.
