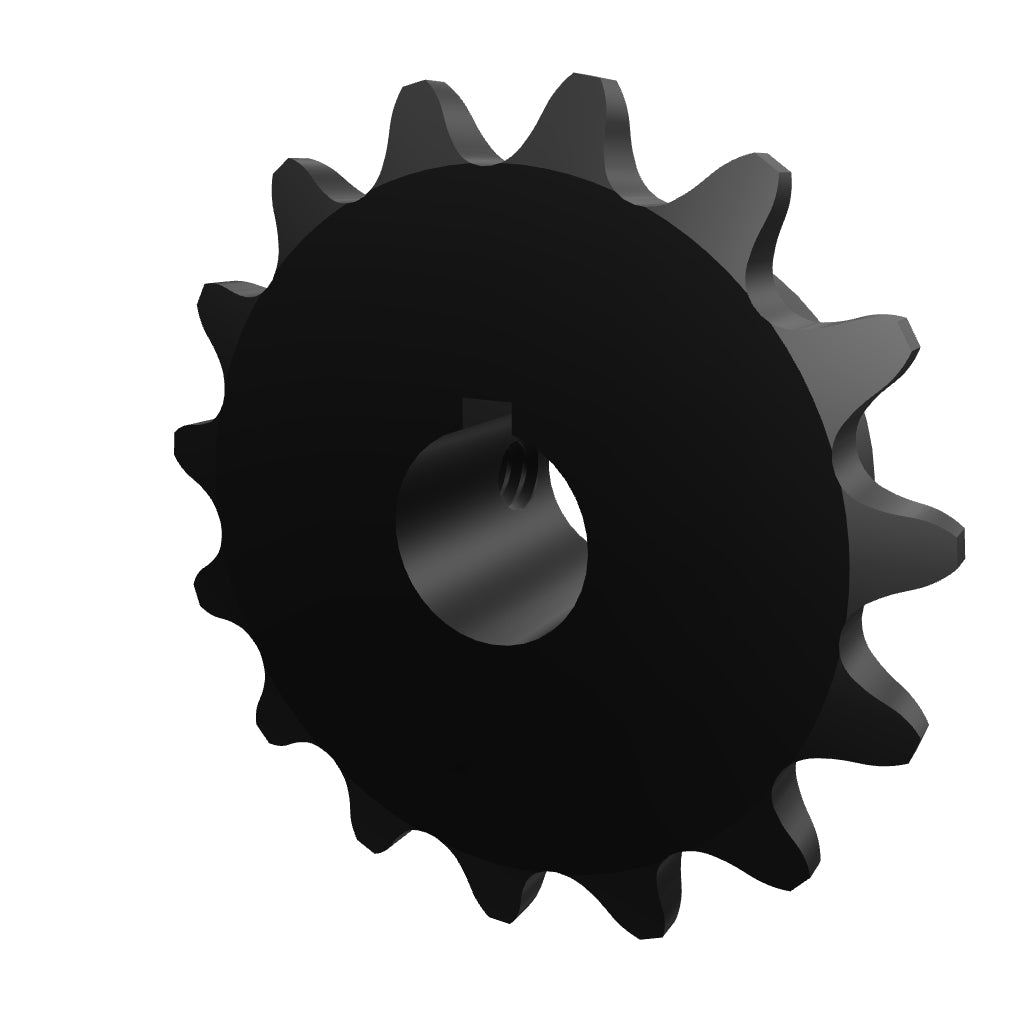

Product Details : 35B15-1/2" Finished Bore Sprocket With Keyway | 35B15H-1/2
-
Part No: 35B15H-1/2
-
Product Type: FB (Finish Bore)
-
ANSI Chain Size: 35
-
No. Of Teeth: 15
-
Shaft Diameter: 1/2"
-
Pitch: 3/8"
-
Pitch Diameter: 1.804"
-
Outside Diameter: 1.990"
-
Tooth Thickness: 0.168"
-
Hub Diameter: 1.344"
-
Length Thru Bore: 3/4"
-
Square Key Width: 1/8"
-
Square Key Depth: 1/16"
-
No. Of Set Screws: 2
-
Set Screw Size: 1/4"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 0.24
For any information about products, please contact us.
*Photos for reference purposes only.
