Description

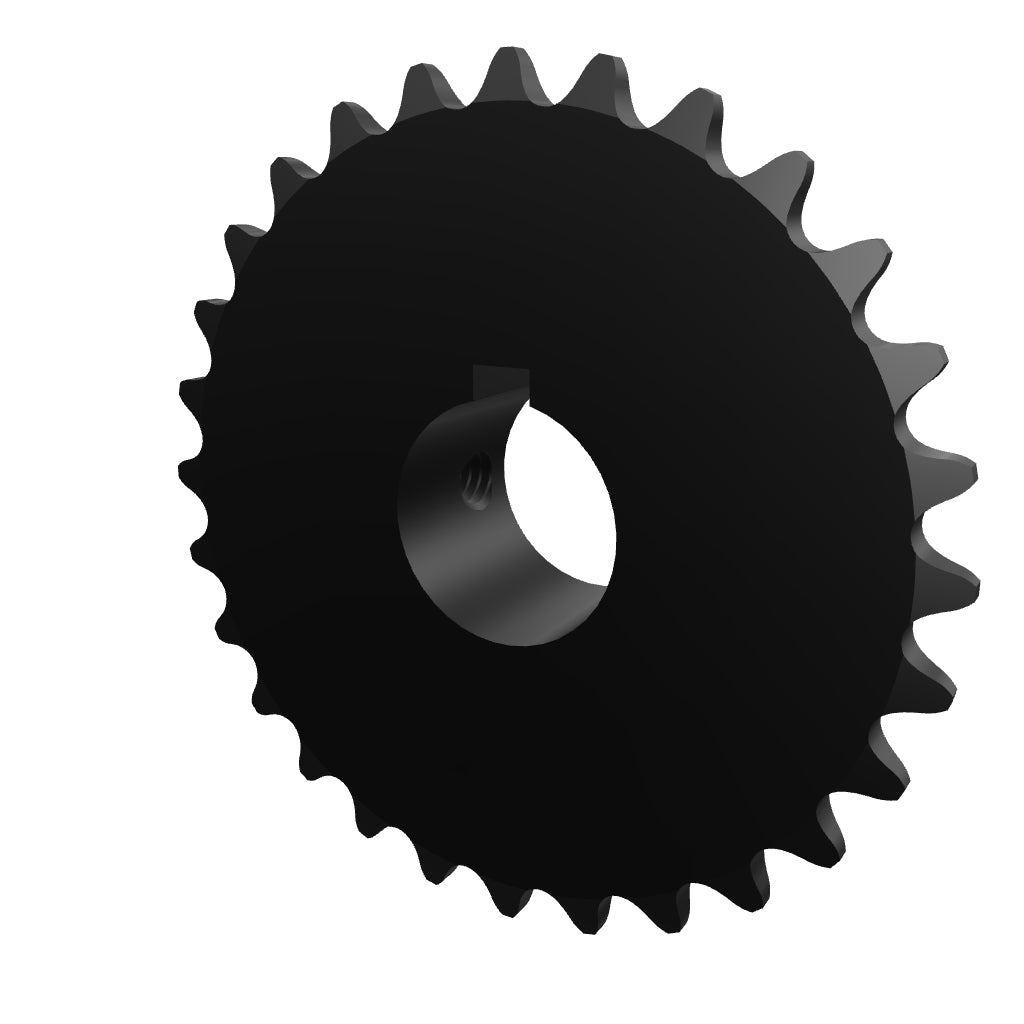

Product Details : 35B28-1" Finished Bore Sprocket With Keyway | 35B28H-1
- Part No: 35B28H-1
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 35
- No. Of Teeth: 28
- Shaft Diameter: 1"
- Pitch: 3/8"
- Pitch Diameter: 3.349"
- Outside Diameter: 3.550"
- Tooth Thickness: 0.168"
- Hub Diameter: 2"
- Length Thru Bore: 7/8"
- Square Key Width: 1/4"
- Square Key Depth: 1/8"
- No. Of Set Screws: 2
- Set Screw Size: 5/16"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 0.88
For any information about products, please contact us.
*Photos for reference purposes only.
