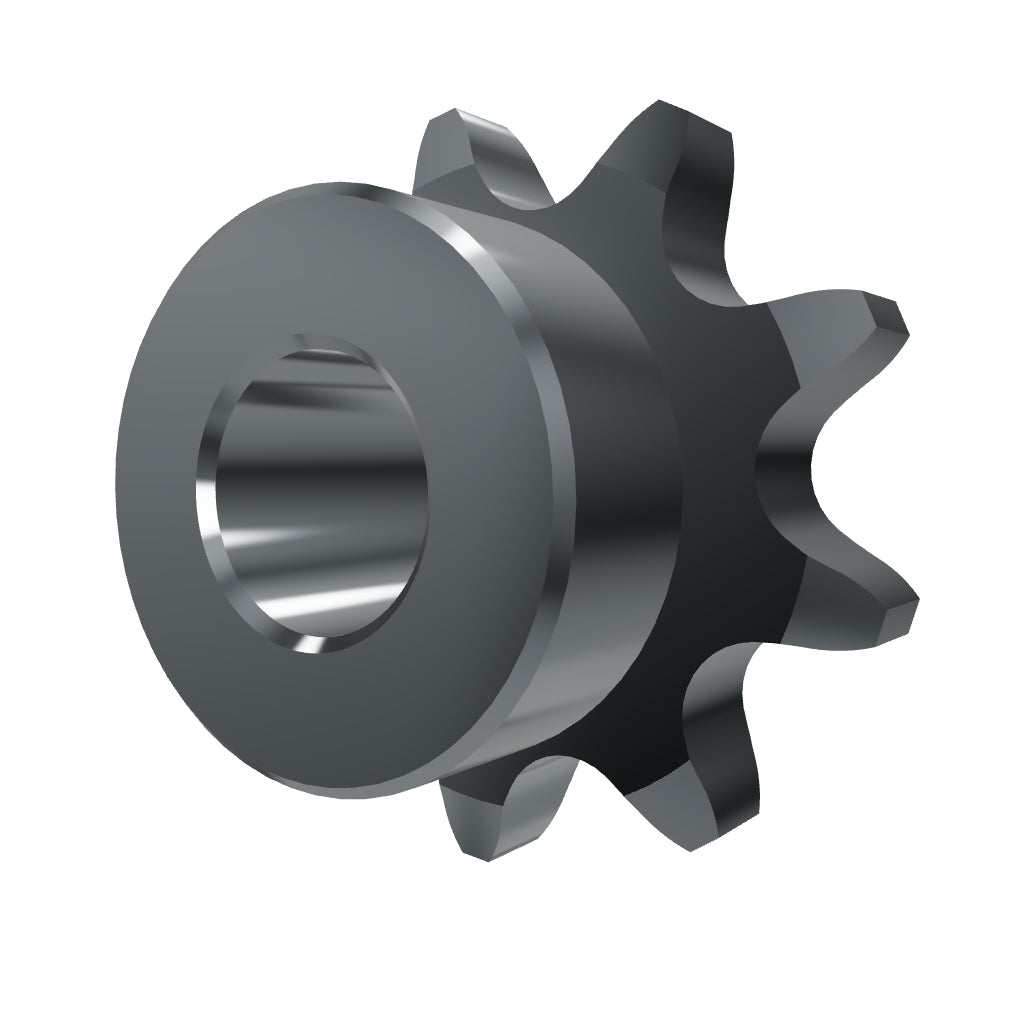

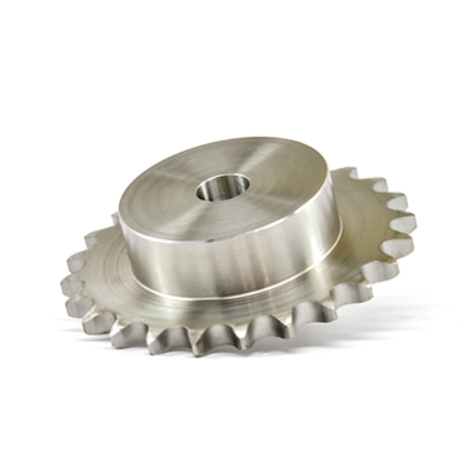

Product Details : 40B09SS Stainless Steel Sprocket With Stock Bore
-
Part No: 40B9SS
-
Product Type: B (Stock Bore)
-
Chain Strand Type: Single
-
Bore: Stock Bore
-
ANSI Chain Size: 40
-
No. Of Teeth: 9
-
Pitch: 1/2"
-
Pitch Diameter: 1.462"
-
Outside Diameter: 1.670"
-
Bore Stock: 1/2"
-
Bore Max.: 9/16"
-
Hub Diameter: 1-1/16"
-
Hub Length Thru Bore: 7/8"
-
Material(s): Stainless Steel 304
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 0.2
For any information about products, please contact us.
*Photos for reference purposes only.
