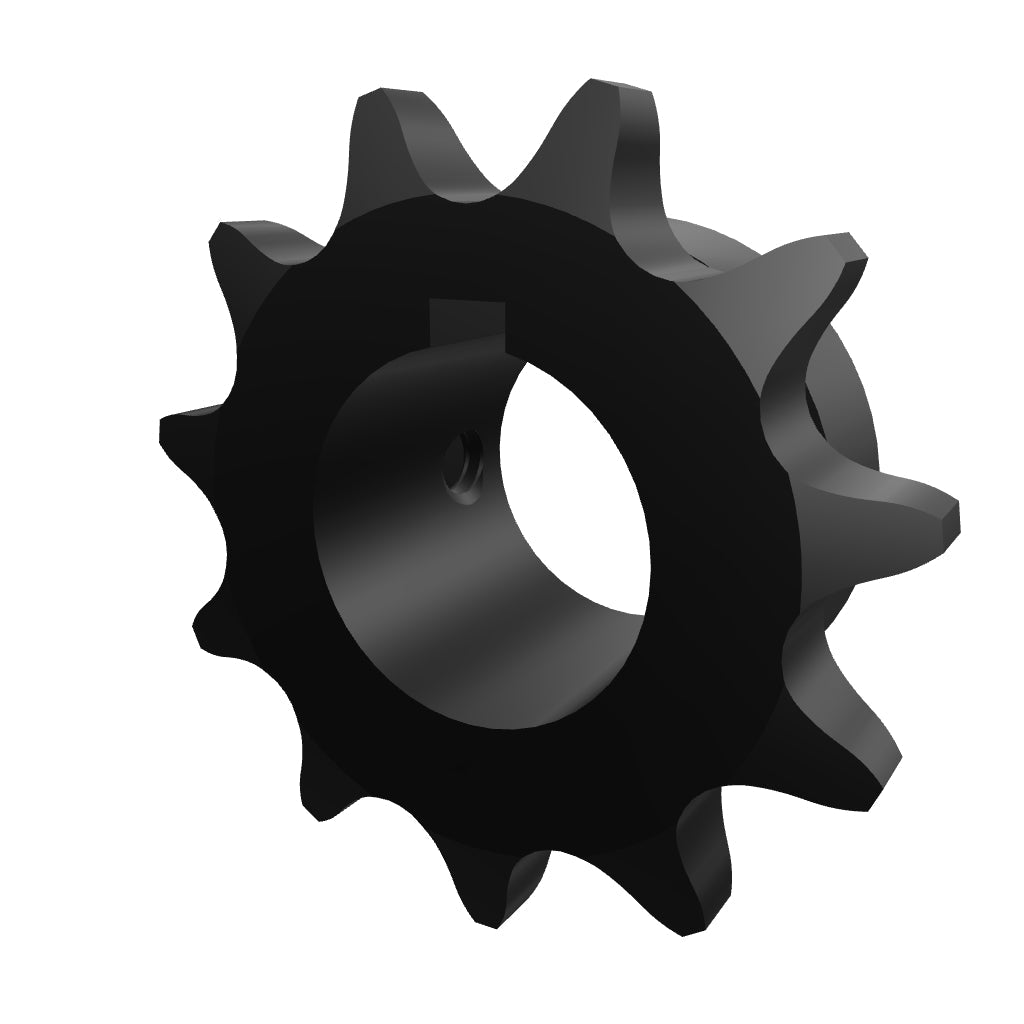

Product Details : 40B11-7/8" Finished Bore Sprocket With Keyway | 40B11H-7/8
-
Part No: 40B11H-7/8
-
Product Type: FB (Finish Bore)
-
ANSI Chain Size: 40
-
No. Of Teeth: 11
-
Shaft Diameter: 7/8"
-
Pitch: 1/2"
-
Pitch Diameter: 1.775"
-
Outside Diameter: 2.000"
-
Tooth Thickness: 0.284"
-
Hub Diameter: 1.375"
-
Length Thru Bore: 7/8"
-
Square Key Width: 3/16"
-
Square Key Depth: 3/32"
-
No. Of Set Screws: 2
-
Set Screw Size: 1/4"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 0.28
For any information about products, please contact us.
*Photos for reference purposes only.
