Description

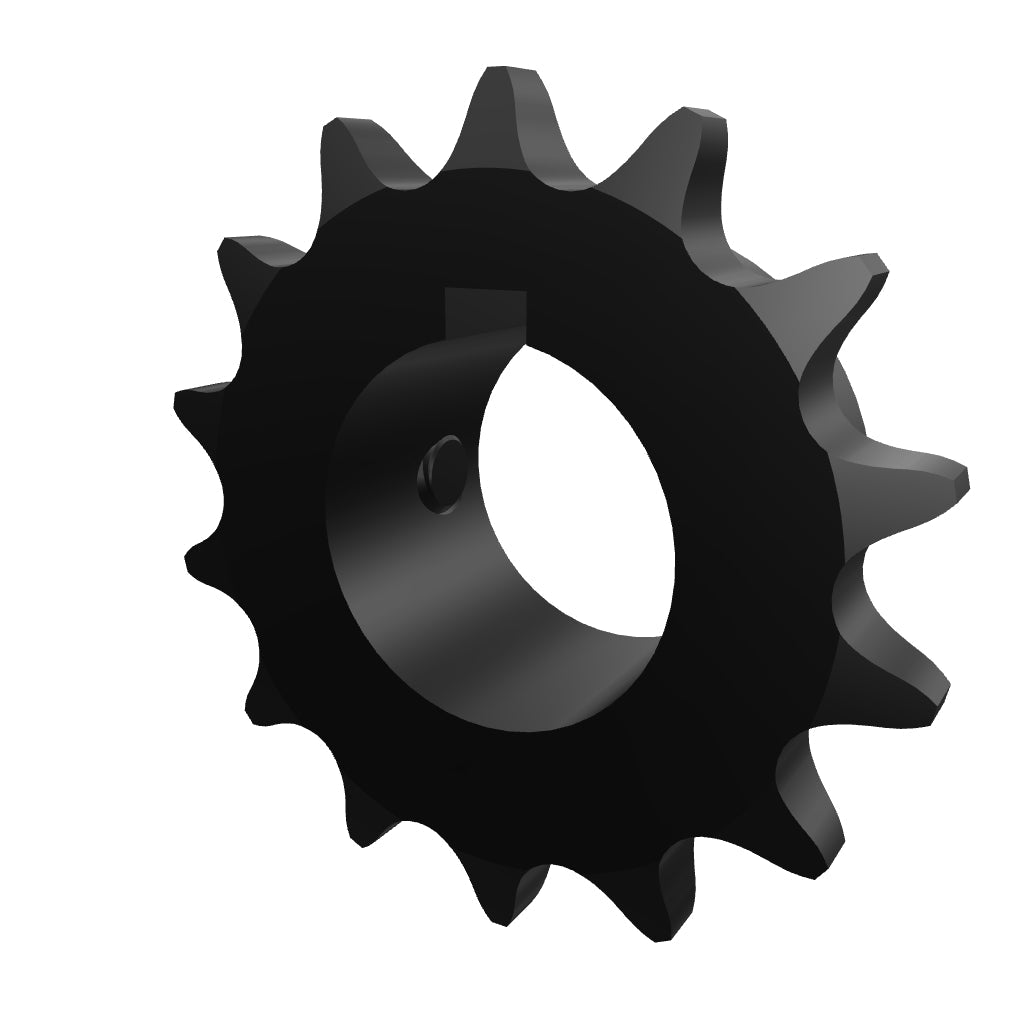

Product Details : 40B14-1-1/8" Finished Bore Sprocket With Keyway | 40B14H-1-1/8
- Part No: 40B14H-1-1/8
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 40
- No. Of Teeth: 14
- Shaft Diameter: 1-1/8"
- Pitch: 1/2"
- Pitch Diameter: 2.247"
- Outside Diameter: 2.490"
- Tooth Thickness: 0.284"
- Hub Diameter: 1.688"
- Length Thru Bore: 7/8"
- Square Key Width: 1/4"
- Square Key Depth: 1/8"
- No. Of Set Screws: 2
- Set Screw Size: 5/16"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 0.51
For any information about products, please contact us.
*Photos for reference purposes only.
