Description

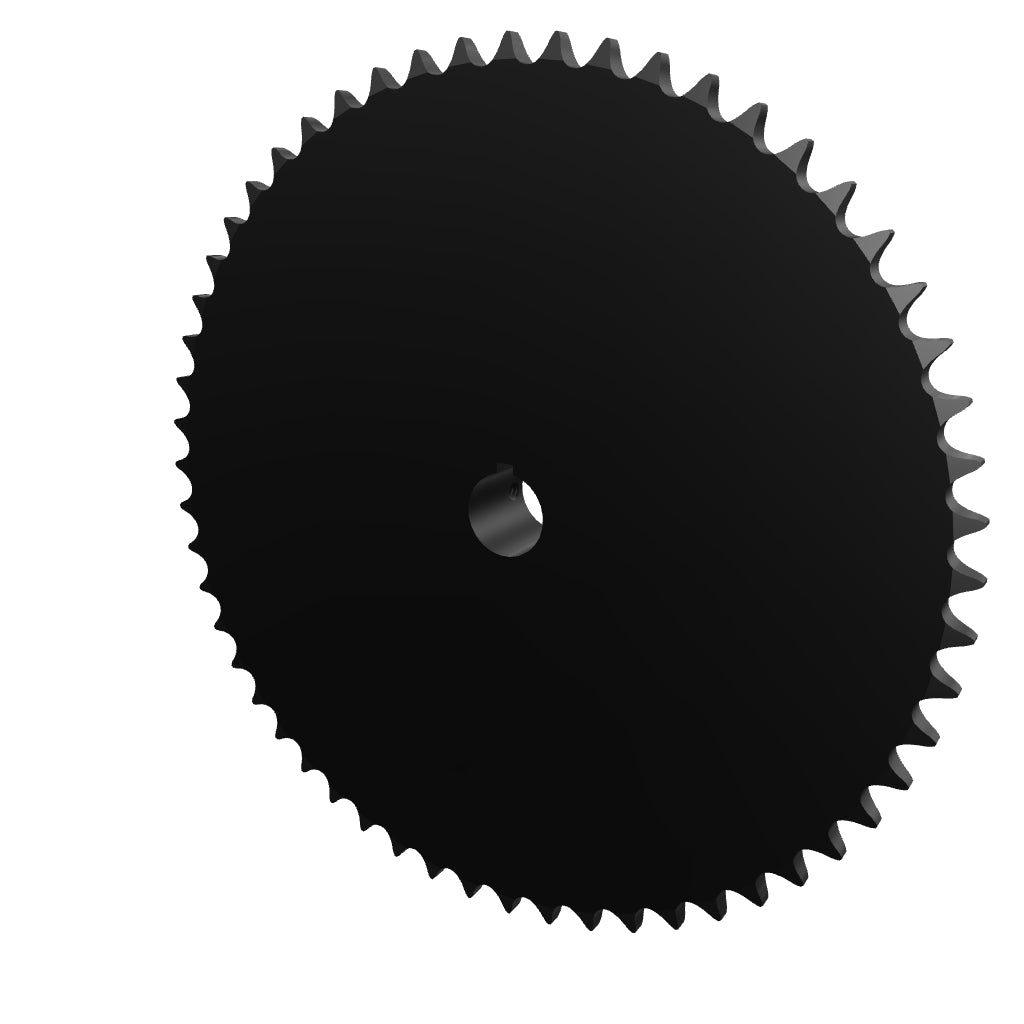

Product Details : 40B56-7/8" Finished Bore Sprocket With Keyway
- Part No: 40B56-7/8
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 40
- No. Of Teeth: 56
- Shaft Diameter: 7/8"
- Pitch: 1/2"
- Pitch Diameter: 8.917"
- Outside Diameter: 9.200"
- Tooth Thickness: 0.284"
- Hub Diameter: 3.500"
- Length Thru Bore: 1-1/8"
- Square Key Width: 3/16"
- Square Key Depth: 3/32"
- No. Of Set Screws: 2
- Set Screw Size: 1/4"
- Material(s): Carbon Steel
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 6.71
For any information about products, please contact us.
*Photos for reference purposes only.
