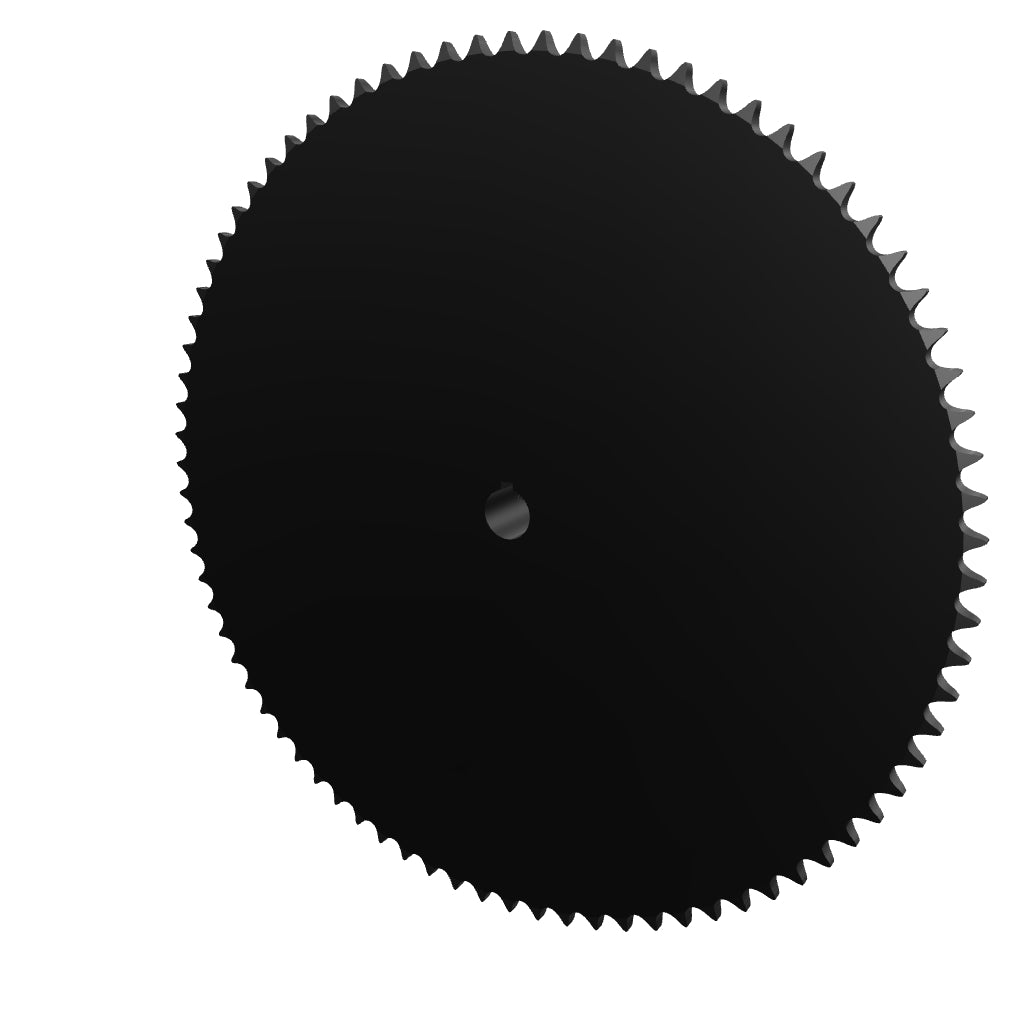

Product Details : 40B80-3/4" Finished Bore Sprocket With Keyway
- Part No: 40B80-3/4
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 40
- No. Of Teeth: 80
- Shaft Diameter: 3/4"
- Pitch: 1/2"
- Pitch Diameter: 12.736"
- Outside Diameter: 13.030"
- Tooth Thickness: 0.284"
- Hub Diameter: 4"
- Length Thru Bore: 1-1/4"
- Square Key Width: 3/16"
- Square Key Depth: 3/32"
- No. Of Set Screws: 2
- Set Screw Size: 1/4"
- Material(s): Carbon Steel
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 13.2
For any information about products, please contact us.
*Photos for reference purposes only.
