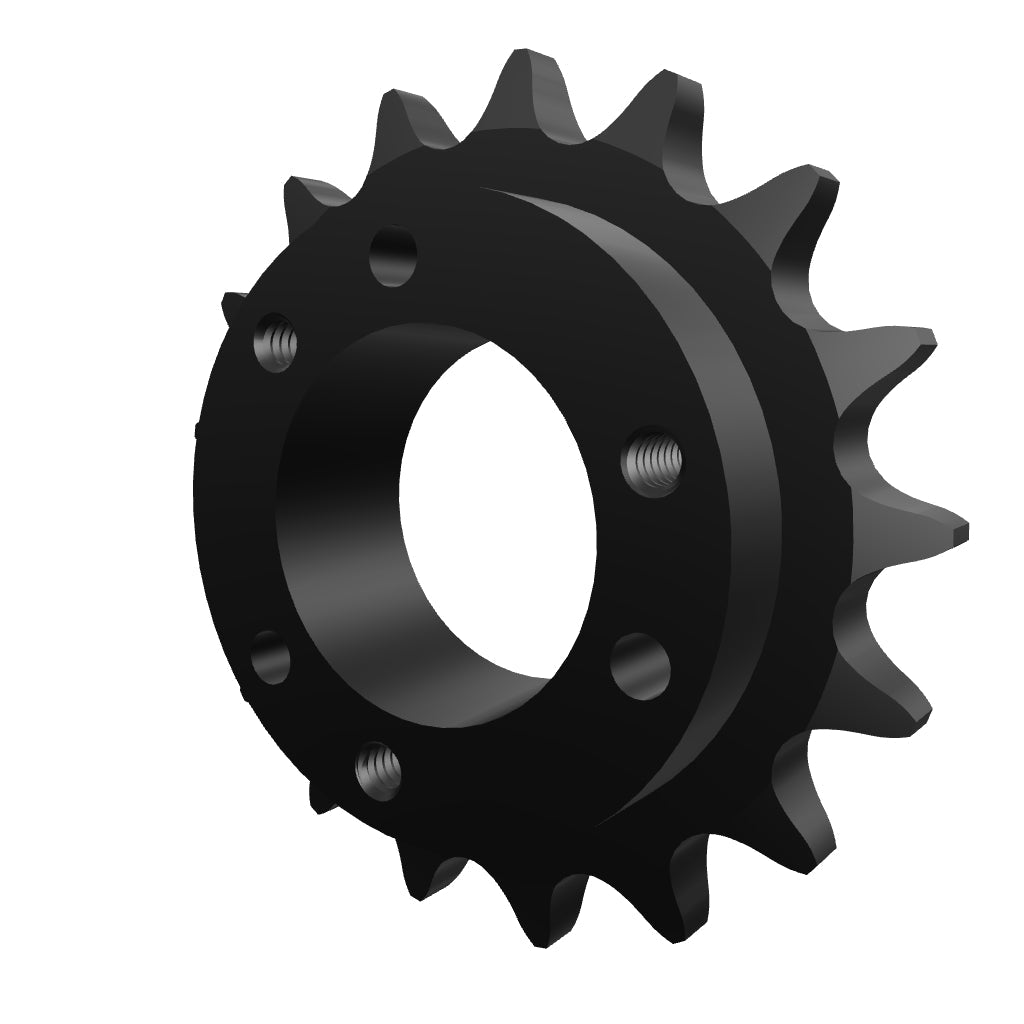

40JA17 Taper Bushed Sprocket JA Bushing | 40JA17H

• QD Bushed Sprockets PDF

Product Details : 40JA17 Taper Bushed Sprocket JA Bushing | 40JA17H

• Part No: 40JA17H
• Product Type: QD (Bushing)
• Bushing: JA
• Chain Strand Type: Single
• ANSI Chain Size: 40
• No. Of Teeth: 17
• Pitch: 1/2"
• Pitch Diameter: 2.721"
• Outside Diameter: 2.980"
• Bore Max.: 1-1/4"
• Dimension "L1": 1-1/8"
• Dimension "L2": 1-1/8"
• Dimension "C": 2-1/16"
• Dimension "Y": 23/32"
• Dimension "G": 11/32"
• Dimension "X": 5/8"
• Material(s): Carbon Steel
• Hardened Teeth: Yes
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 0.48

For any information about products, please contact us.

*Photos for reference purposes only.
