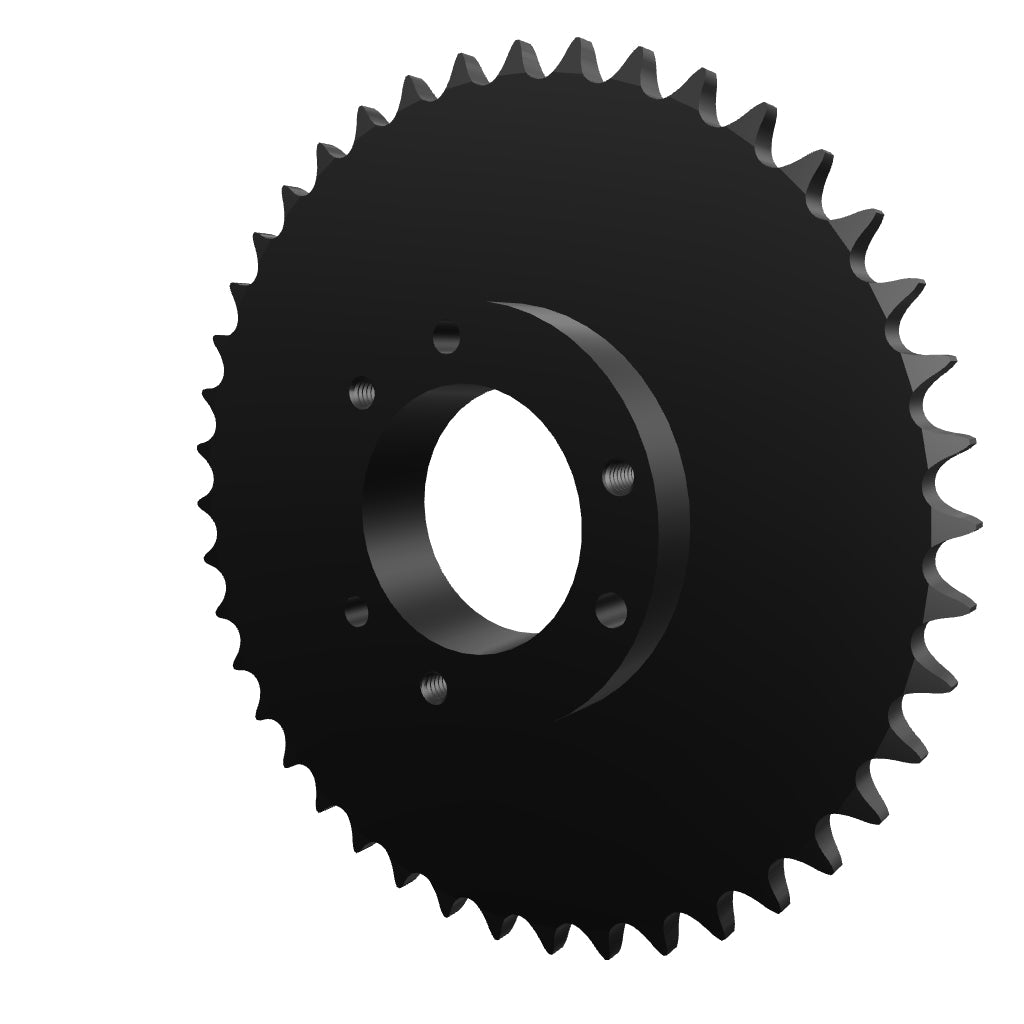

40SDS42 Taper Bushed Sprocket SDS Bushing

• QD Bushed Sprockets PDF

Product Details : 40SDS42 Taper Bushed Sprocket SDS Bushing

• Part No: 40SDS42
• Product Type: QD (Bushing)
• Bushing: SDS
• Chain Strand Type: Single
• ANSI Chain Size: 40
• No. Of Teeth: 42
• Pitch: 1/2"
• Pitch Diameter: 6.691"
• Outside Diameter: 6.970"
• Bore Max.: 2"
• Dimension "L1": 1-1/2"
• Dimension "L2": 1-1/2"
• Dimension "C": 3-3/16"
• Dimension "Y": 1-1/32"
• Dimension "G": 1/2"
• Dimension "X": 3/4"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 2.92

For any information about products, please contact us.

*Photos for reference purposes only.
