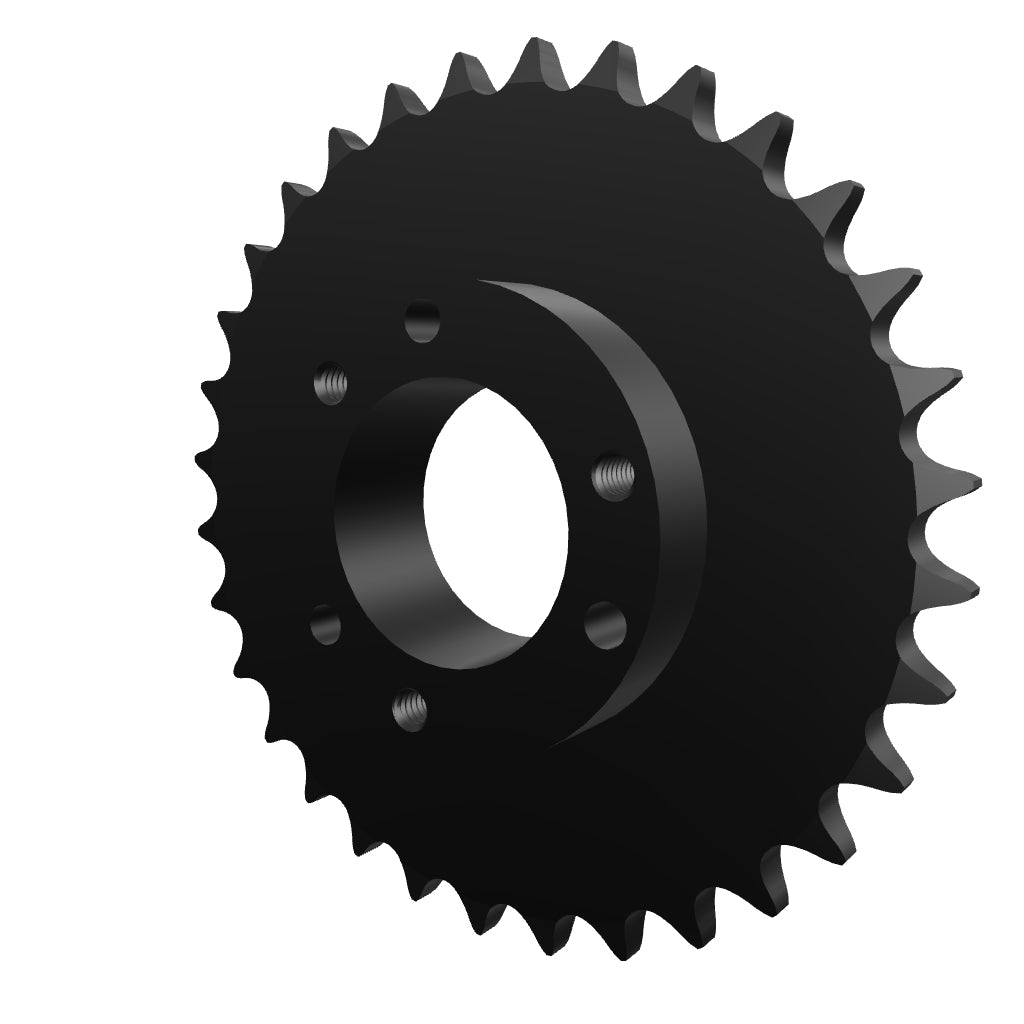

40SH32 Taper Bushed Sprocket SH Bushing | 40SH32H

• QD Bushed Sprockets PDF

Product Details : 40SH32 Taper Bushed Sprocket SH Bushing | 40SH32H

• Part No: 40SH32H
• Product Type: QD (Bushing)
• Bushing: SH
• Chain Strand Type: Single
• ANSI Chain Size: 40
• No. Of Teeth: 32
• Pitch: 1/2"
• Pitch Diameter: 5.101"
• Outside Diameter: 5.380"
• Bore Max.: 1-5/8"
• Dimension "L1": 1-7/16"
• Dimension "L2": 1-7/16"
• Dimension "C": 2-11/16"
• Dimension "Y": 31/32"
• Dimension "G": 17/32"
• Dimension "X": 13/16"
• Material(s): Carbon Steel
• Hardened Teeth: Yes
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 1.9

For any information about products, please contact us.

*Photos for reference purposes only.
