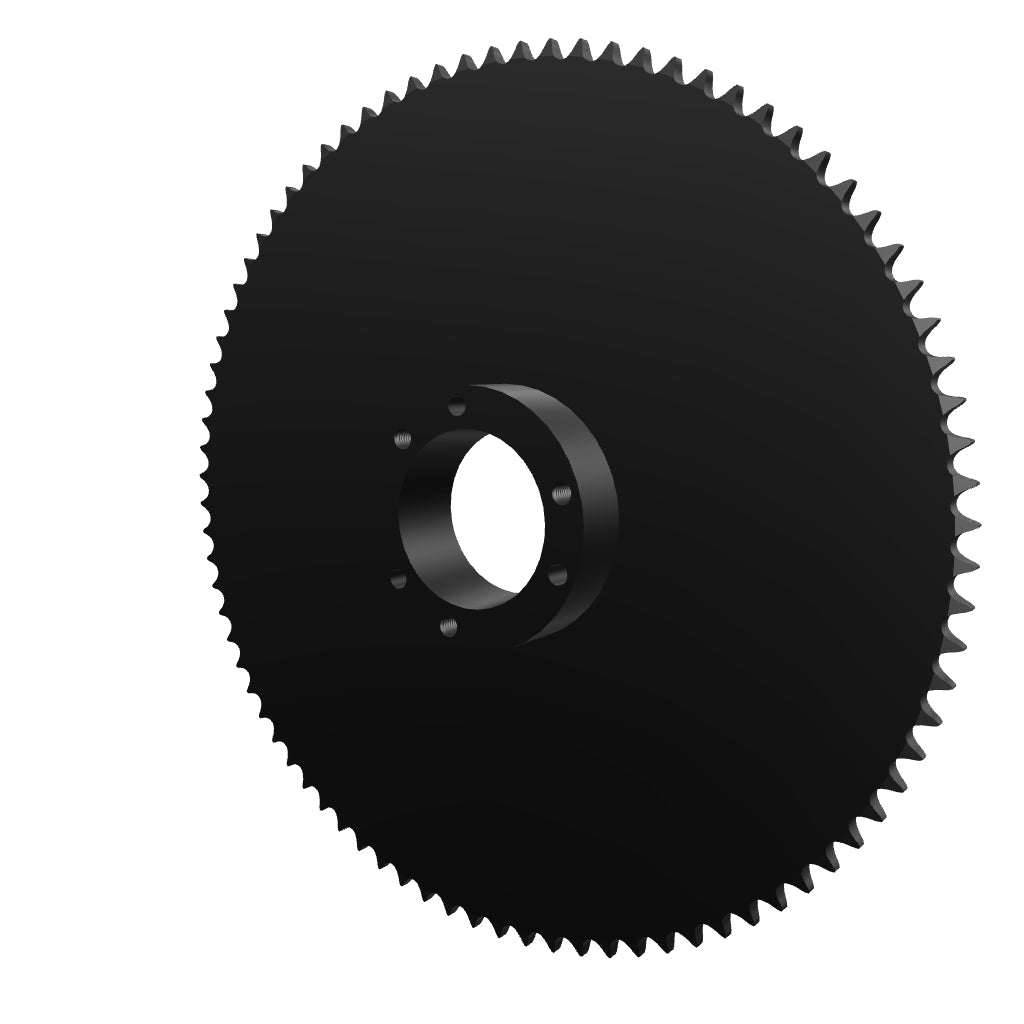

Product Details : 40SK84 Taper Bushed Sprocket SK Bushing
-
Part No: 40SK84
-
Product Type: QD (Bushing)
-
Bushing: SK
-
Chain Strand Type: Single
-
ANSI Chain Size: 40
-
No. Of Teeth: 84
-
Pitch: 1/2"
-
Pitch Diameter: 13.372"
-
Outside Diameter: 13.660"
-
Bore Max.: 2-5/8"
-
Dimension "L1": 2-1/8"
-
Dimension "L2": 2-1/8"
-
Dimension "C": 3-7/8"
-
Dimension "Y": 1-41/64"
-
Dimension "G": 1-1/32"
-
Dimension "X": 1-1/4"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 11.5599
For any information about products, please contact us.
*Photos for reference purposes only.
