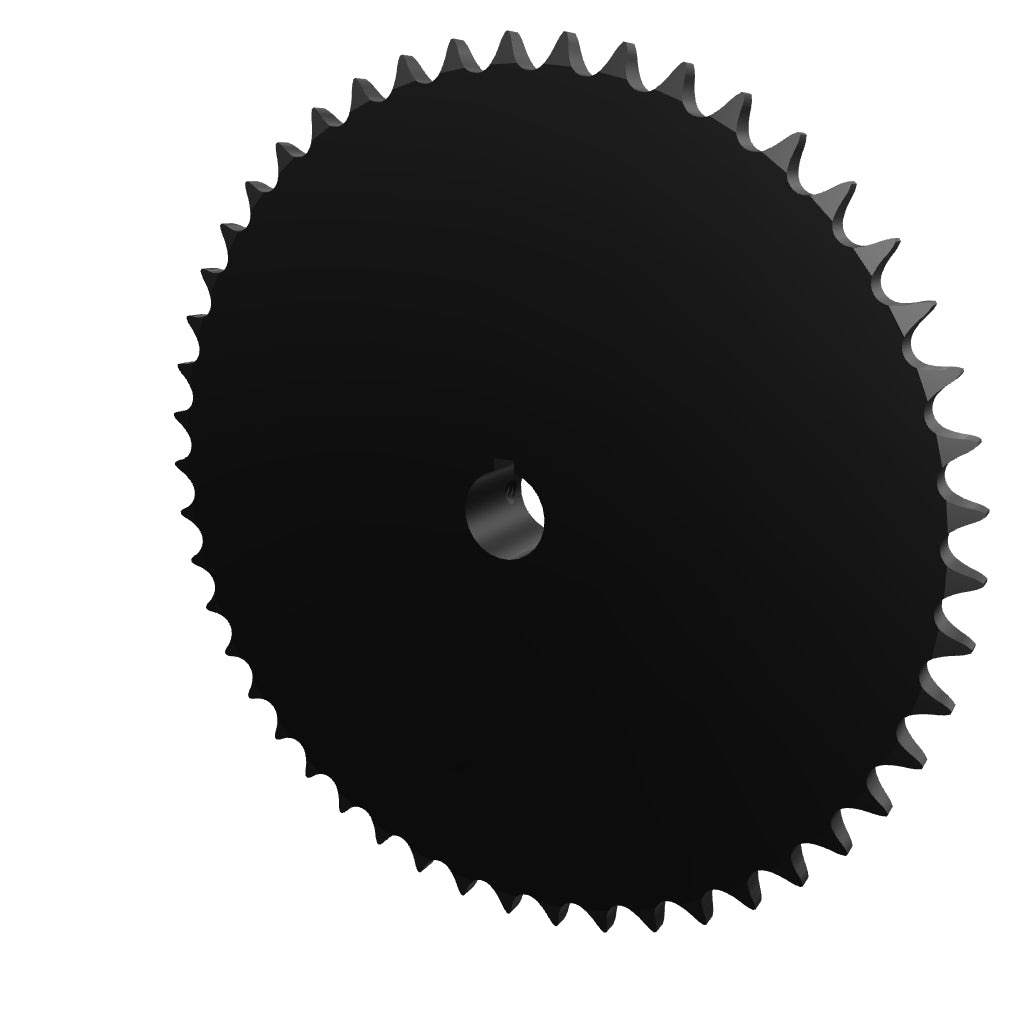

Product Details : 50B48-1" Finished Bore Sprocket With Keyway
-
Part No: 50B48-1
-
Product Type: FB (Finish Bore)
-
ANSI Chain Size: 50
-
No. Of Teeth: 48
-
Shaft Diameter: 1"
-
Pitch: 5/8"
-
Pitch Diameter: 9.556"
-
Outside Diameter: 9.910"
-
Tooth Thickness: 0.343"
-
Hub Diameter: 3.750"
-
Length Thru Bore: 1-1/4"
-
Square Key Width: 1/4"
-
Square Key Depth: 1/8"
-
No. Of Set Screws: 2
-
Set Screw Size: 5/16"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 9.03
For any information about products, please contact us.
*Photos for reference purposes only.
