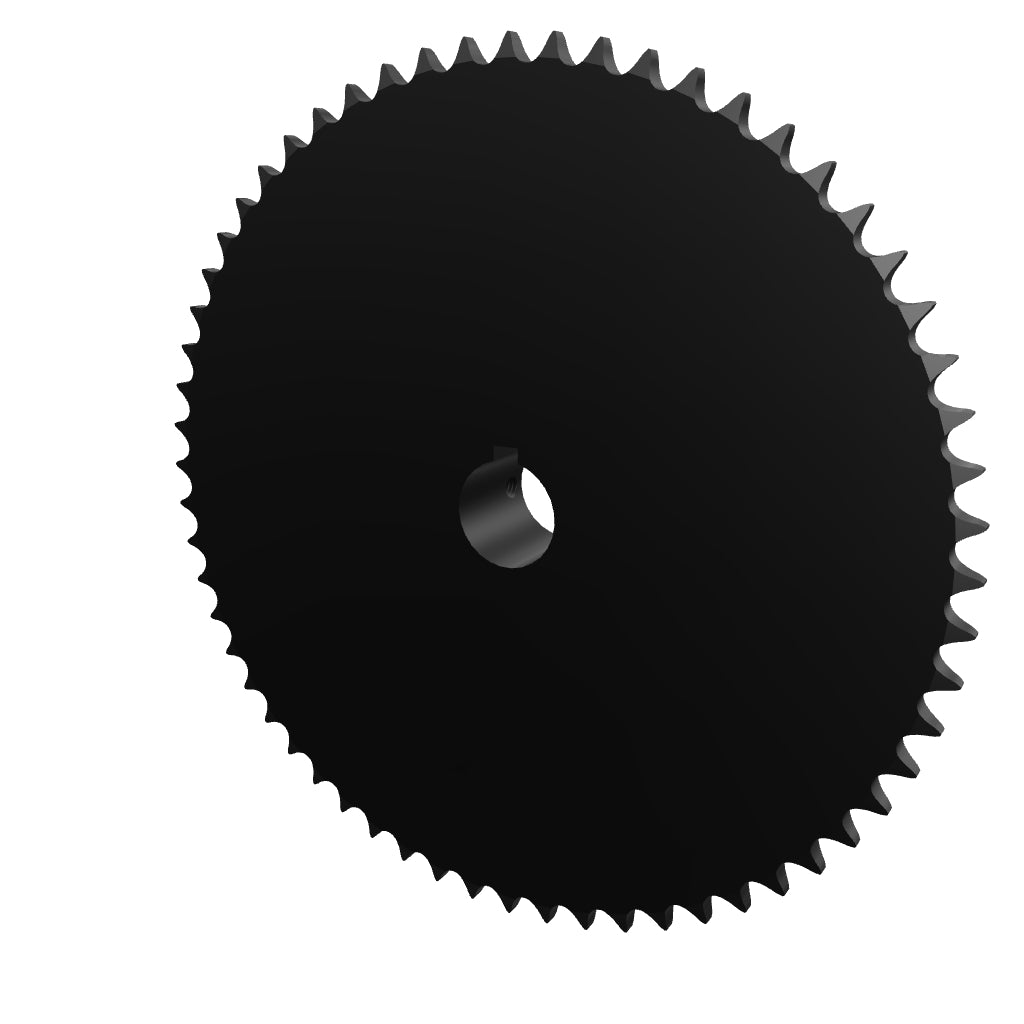

50B60-1-1/2" Finished Bore Sprocket With Keyway

Product Details : 50B60-1-1/2" Finished Bore Sprocket With Keyway

• Part No: 50B60-1-1/2
• Product Type: FB (Finish Bore)
• ANSI Chain Size: 50
• No. Of Teeth: 60
• Shaft Diameter: 1-1/2"
• Pitch: 5/8"
• Pitch Diameter: 11.942"
• Outside Diameter: 12.300"
• Tooth Thickness: 0.343"
• Hub Diameter: 3.750"
• Length Thru Bore: 1-3/4"
• Square Key Width: 3/8"
• Square Key Depth: 3/16"
• No. Of Set Screws: 2
• Set Screw Size: 3/8"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 13.5

For any information about products, please contact us.

*Photos for reference purposes only.
