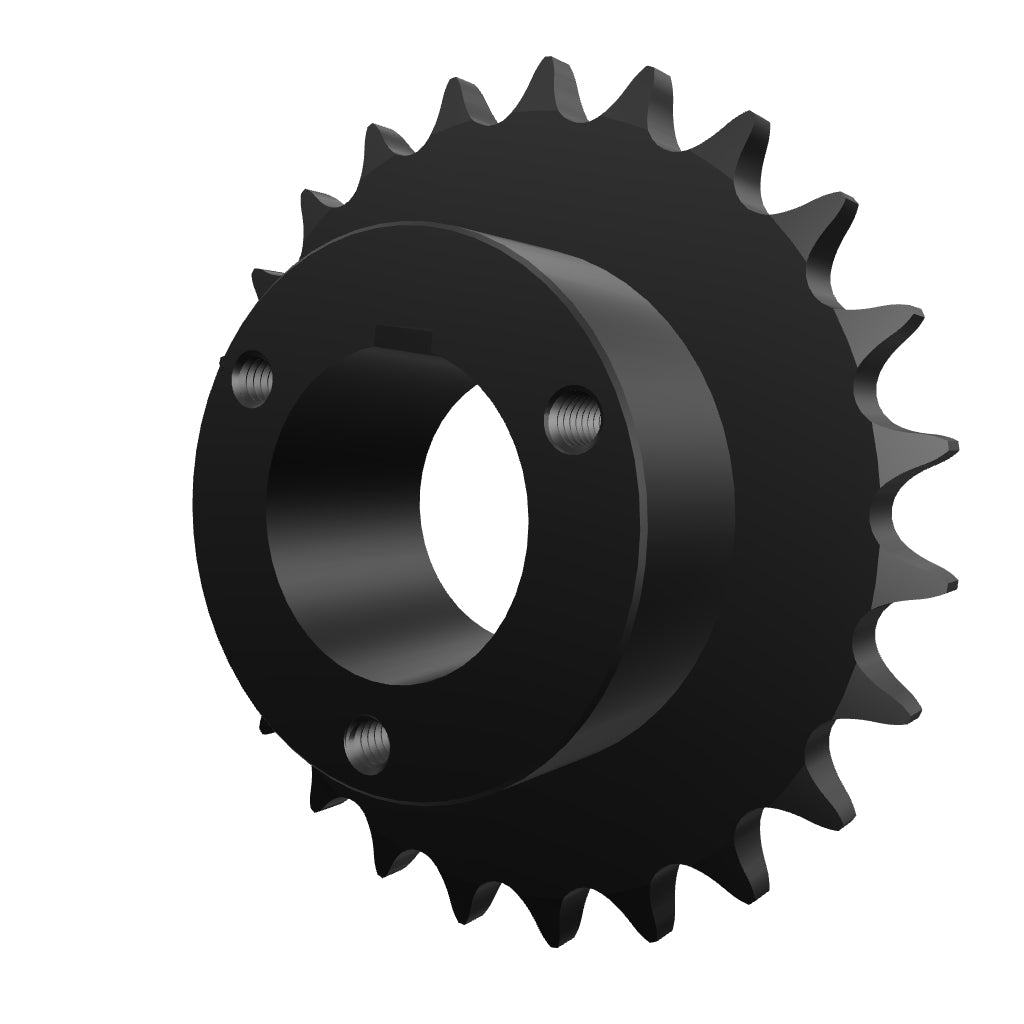

Product Details : 50P24 Split Taper Bushed Sprocket | 50P24H
-
Part No: 50P24H
-
Product Type: ST (Split Taper)
-

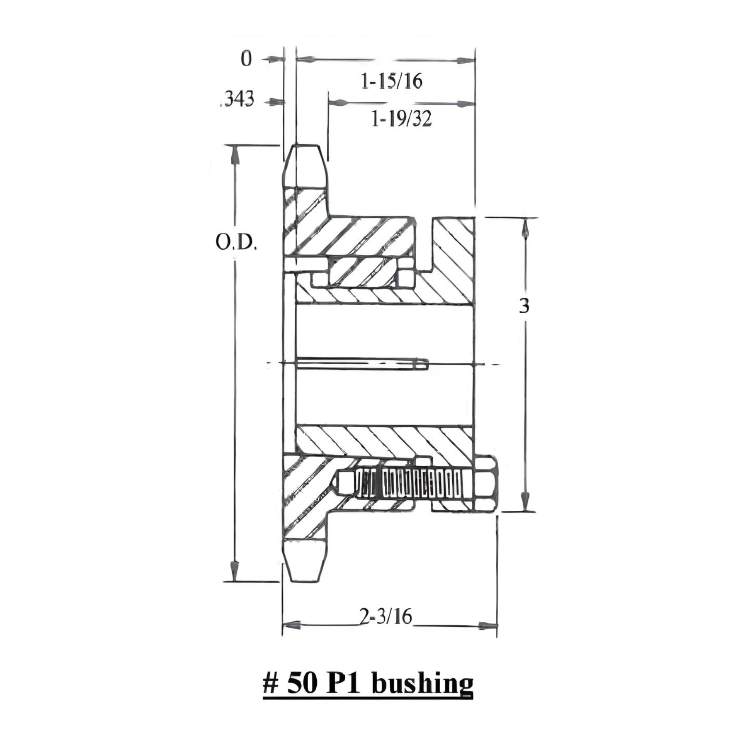

Bushing Type: P1
-
Chain Strand Type: Single
-
ANSI Chain Size: 50
-
No. Of Teeth: 24
-
Pitch: 5/8"
-
Pitch Diameter: 4.788"
-
Outside Diameter: 5.120"
-
Bore Max.: 1-3/4"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 2.5
For any information about products, please contact us.
*Photos for reference purposes only.
