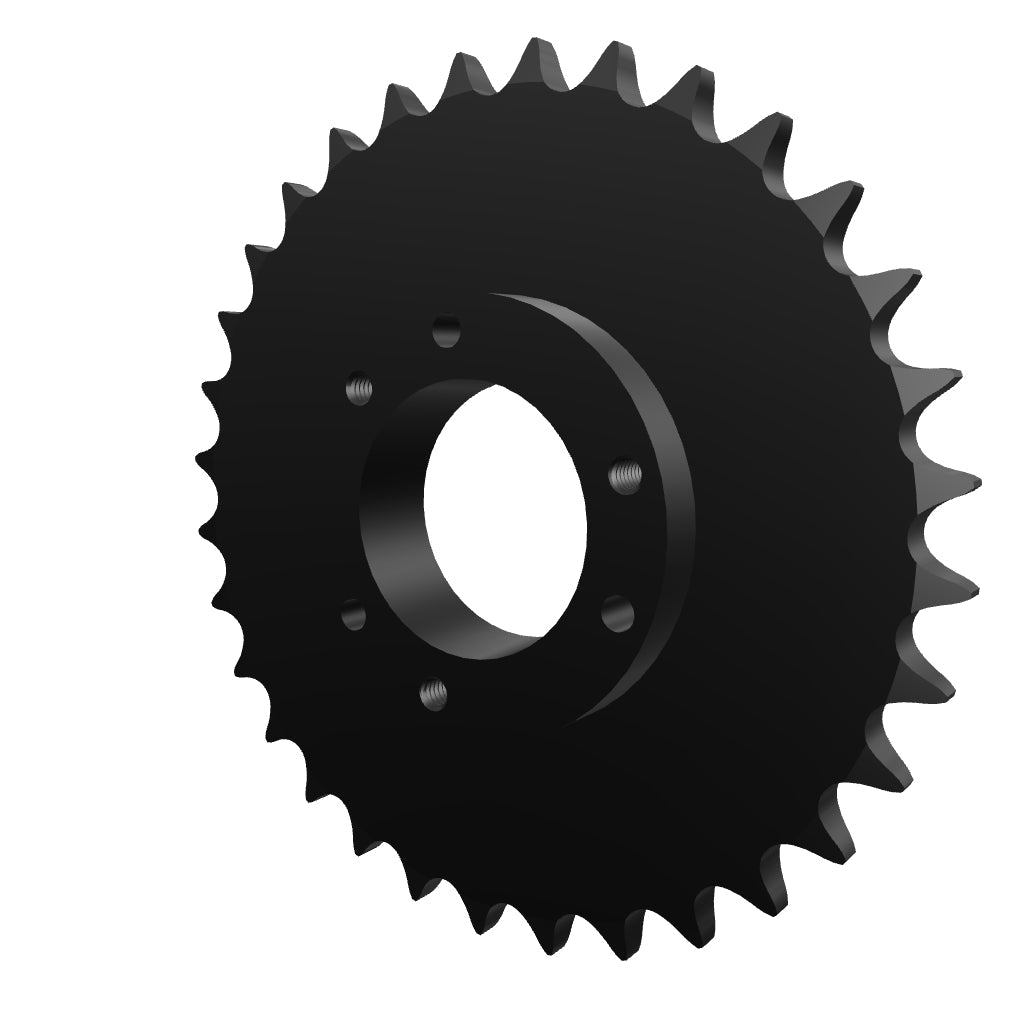

Product Details : 50SDS32 Taper Bushed Sprocket SDS Bushing
-
Part No: 50SDS32
-
Product Type: QD (Bushing)
-
Bushing: SDS
-
Chain Strand Type: Single
-
ANSI Chain Size: 50
-
No. Of Teeth: 32
-
Pitch: 5/8"
-
Pitch Diameter: 6.376"
-
Outside Diameter: 6.720"
-
Bore Max.: 2"
-
Dimension "L1": 1-1/2"
-
Dimension "L2": 1-1/2"
-
Dimension "C": 3-3/16"
-
Dimension "Y": 31/32"
-
Dimension "G": 13/32"
-
Dimension "X": 3/4"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 2.98
For any information about products, please contact us.

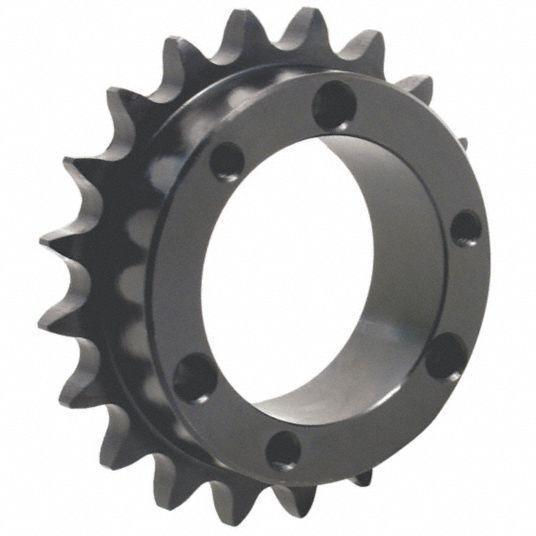

*Photos for reference purposes only.
