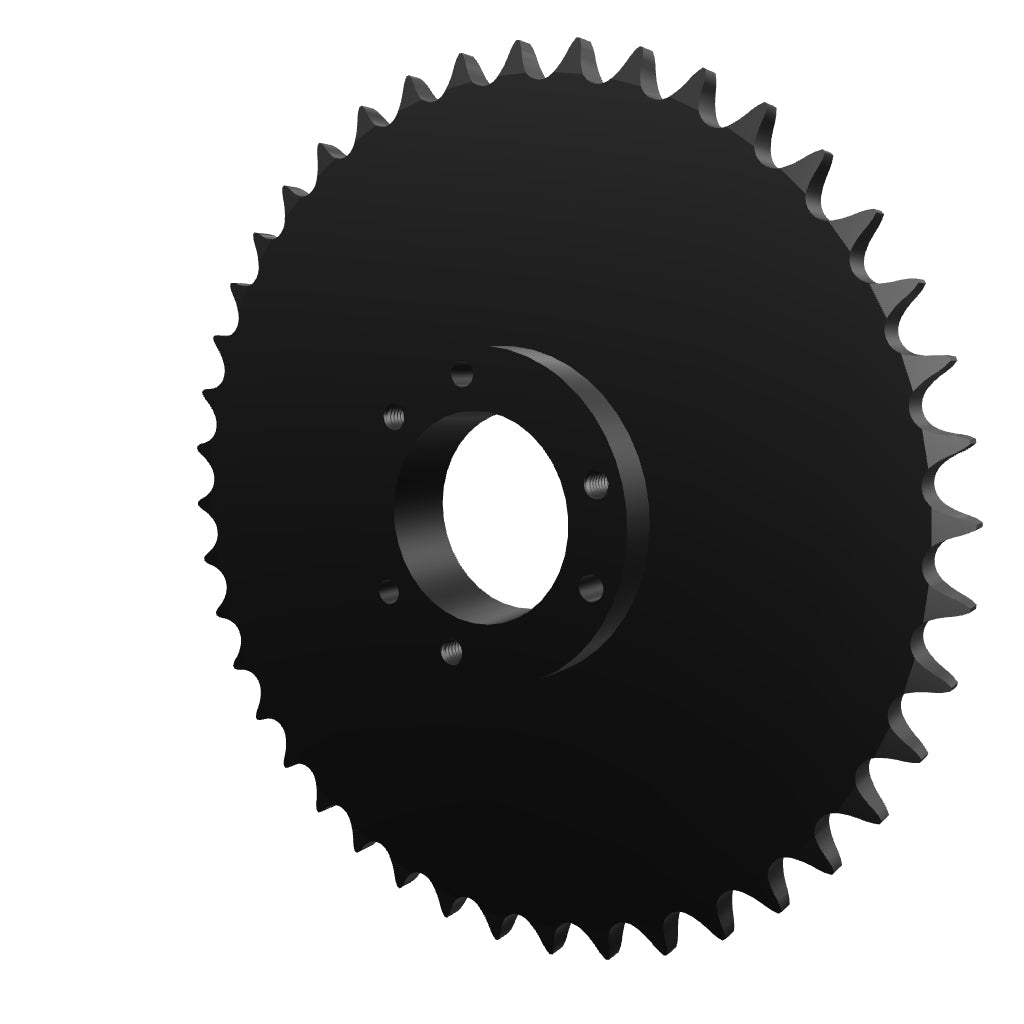

50SDS42 Taper Bushed Sprocket SDS Bushing

Product Details : 50SDS42 Taper Bushed Sprocket SDS Bushing

• Part No: 50SDS42
• Product Type: QD (Bushing)
• Bushing: SDS
• Chain Strand Type: Single
• ANSI Chain Size: 50
• No. Of Teeth: 42
• Pitch: 5/8"
• Pitch Diameter: 8.363"
• Outside Diameter: 8.720"
• Bore Max.: 2"
• Dimension "L1": 1-1/2"
• Dimension "L2": 1-1/2"
• Dimension "C": 3-3/16"
• Dimension "Y": 31/32"
• Dimension "G": 13/32"
• Dimension "X": 3/4"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 5.4

For any information about products, please contact us.

*Photos for reference purposes only.
