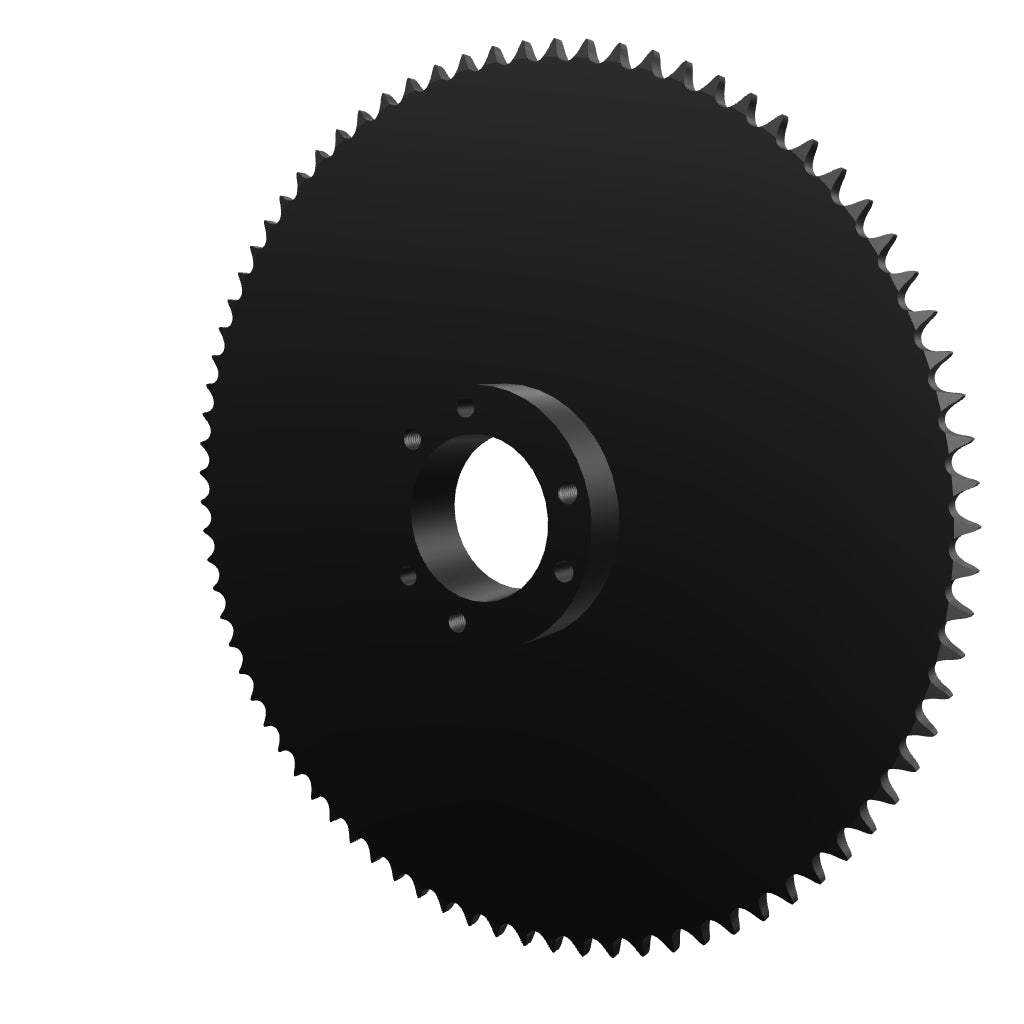

50SF80 Taper Bushed Sprocket SF Bushing

• QD Bushed Sprockets PDF

Product Details : 50SF80 Taper Bushed Sprocket SF Bushing

• Part No: 50SF80
• Product Type: QD (Bushing)
• Bushing: SF
• Chain Strand Type: Single
• ANSI Chain Size: 50
• No. Of Teeth: 80
• Pitch: 5/8"
• Pitch Diameter: 15.920"
• Outside Diameter: 16.280"
• Bore Max.: 2-15/16"
• Dimension "L1": 2-1/4"
• Dimension "L2": 2-1/4"
• Dimension "C": 4-5/8"
• Dimension "Y": 1-21/32"
• Dimension "G": 29/32"
• Dimension "X": 1-1/4"
• Material(s): Carbon Steel
• Certifications: Manufactured using the ISO 9001 quality management system.
• Avg. Weight (lbs): 19.8999

For any information about products, please contact us.

*Photos for reference purposes only.
