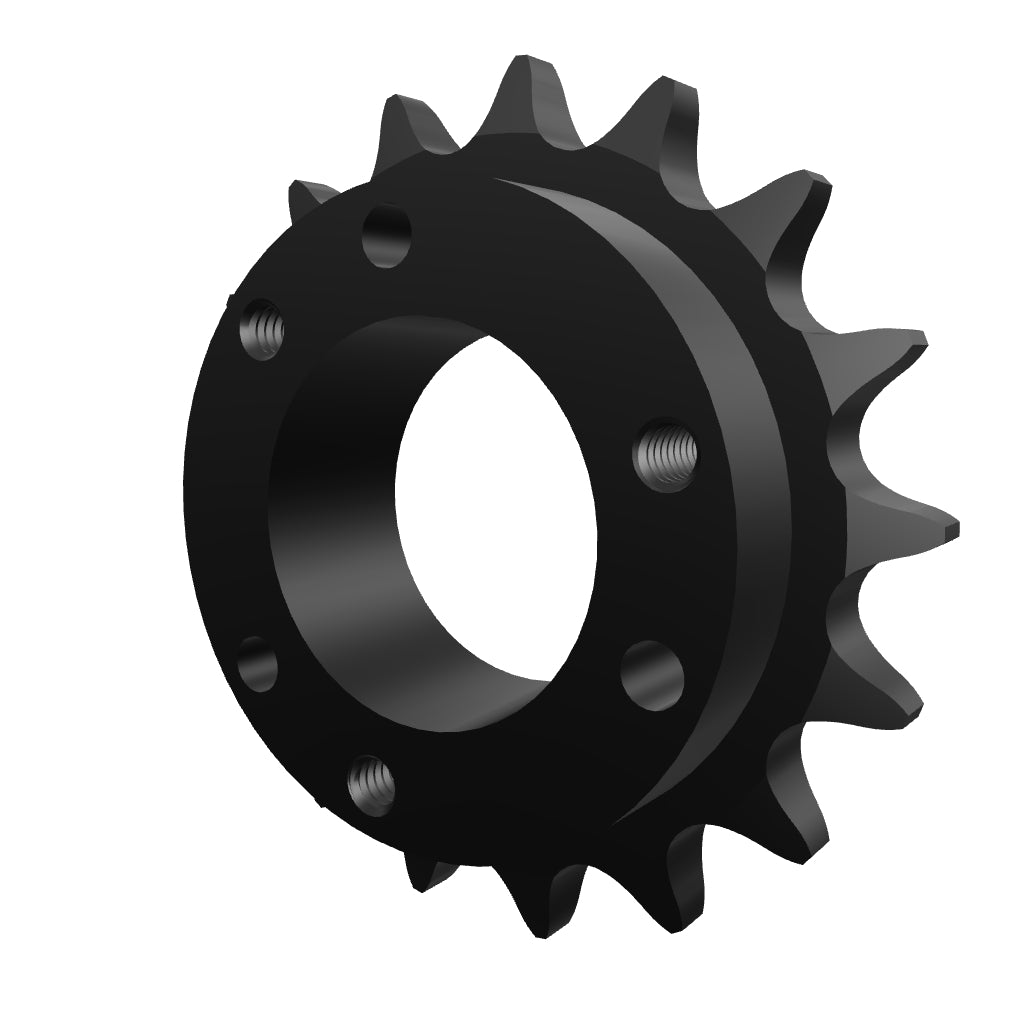

Product Details : 50SH17 Taper Bushed Sprocket SH Bushing | 50SH17H
-
Part No: 50SH17H
-
Product Type: QD (Bushing)
-
Bushing: SH
-
Chain Strand Type: Single
-
ANSI Chain Size: 50
-
No. Of Teeth: 17
-
Pitch: 5/8"
-
Pitch Diameter: 3.401"
-
Outside Diameter: 3.720"
-
Bore Max.: 1-5/8"
-
Dimension "L1": 1-7/16"
-
Dimension "L2": 1-7/16"
-
Dimension "C": 2-11/16"
-
Dimension "Y": 29/32"
-
Dimension "G": 15/32"
-
Dimension "X": 13/16"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 0.84
For any information about products, please contact us.
*Photos for reference purposes only.
