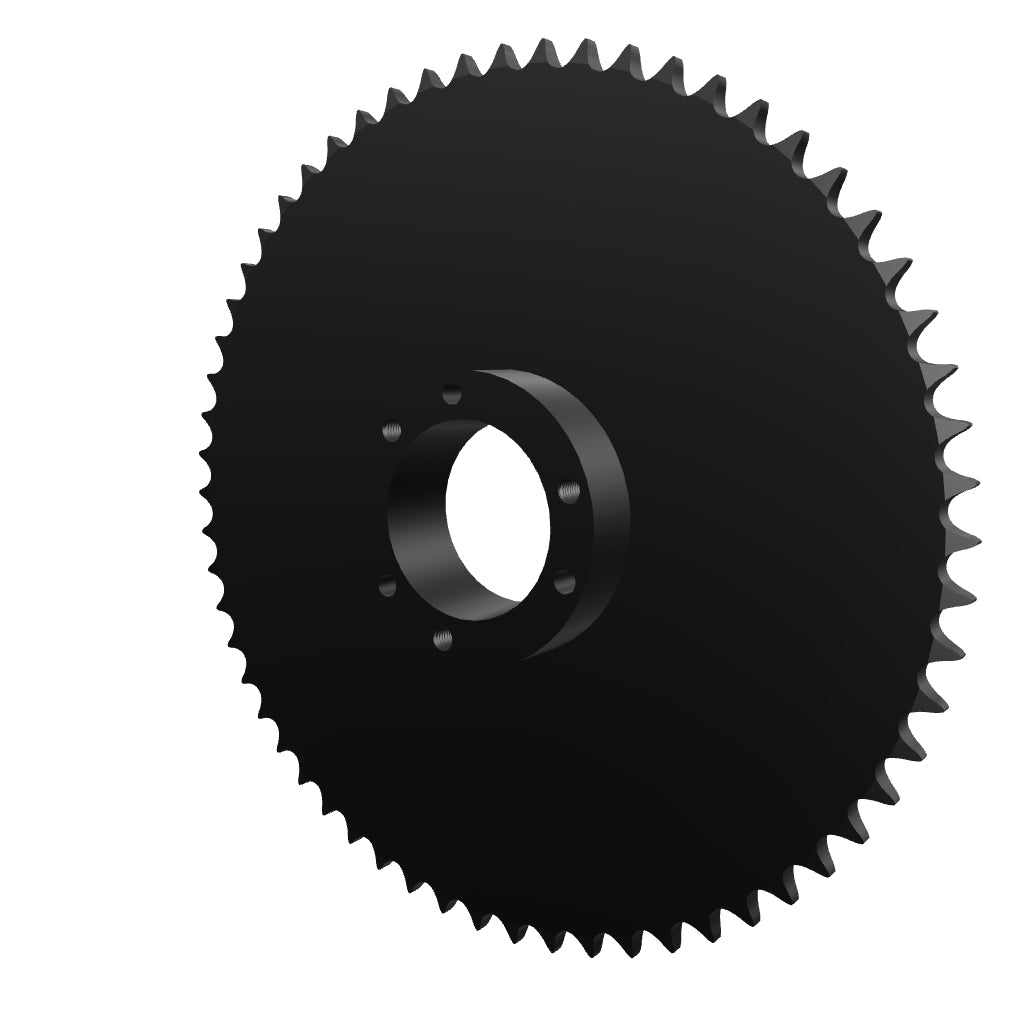

Product Details : 50SK60 Taper Bushed Sprocket SK Bushing
-
Part No: 50SK60
-
Product Type: QD (Bushing)
-
Bushing: SK
-
Chain Strand Type: Single
-
ANSI Chain Size: 50
-
No. Of Teeth: 60
-
Pitch: 5/8"
-
Pitch Diameter: 11.942"
-
Outside Diameter: 12.300"
-
Bore Max.: 2-5/8"
-
Dimension "L1": 2-1/8"
-
Dimension "L2": 2-1/8"
-
Dimension "C": 3-7/8"
-
Dimension "Y": 1-17/32"
-
Dimension "G": 29/32"
-
Dimension "X": 1-1/4"
-
Material(s): Carbon Steel
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 11.8799
For any information about products, please contact us.
*Photos for reference purposes only.
