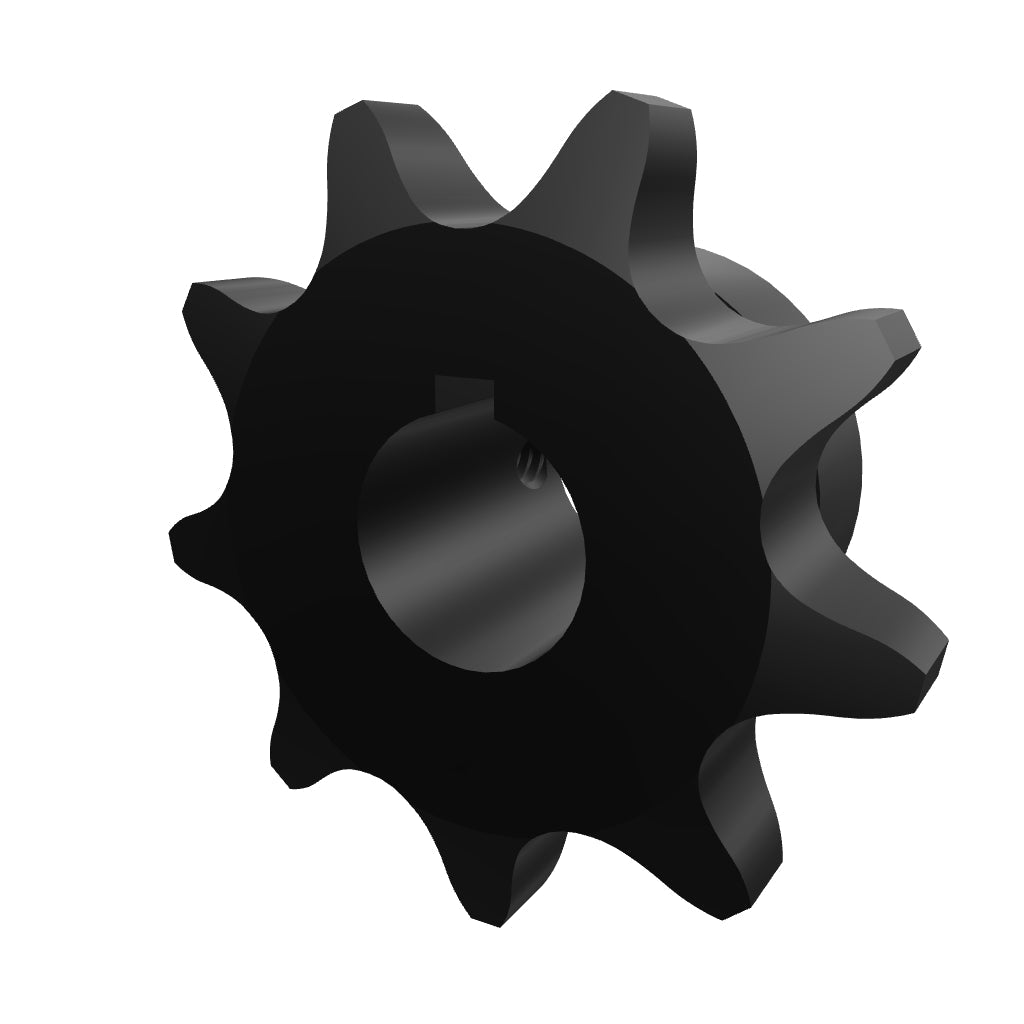

Product Details : 60B09-3/4" Finished Bore Sprocket With Keyway | 60B09H-3/4
-
Part No: 60B09H-3/4
-
Product Type: FB (Finish Bore)
-
ANSI Chain Size: 60
-
No. Of Teeth: 9
-
Shaft Diameter: 3/4"
-
Pitch: 3/4"
-
Pitch Diameter: 2.193"
-
Outside Diameter: 2.510"
-
Tooth Thickness: 0.459"
-
Hub Diameter: 1.5625"
-
Length Thru Bore: 1-1/4"
-
Square Key Width: 3/16"
-
Square Key Depth: 3/32"
-
No. Of Set Screws: 2
-
Set Screw Size: 1/4"
-
Material(s): Carbon Steel
-
Hardened Teeth: Yes
-
Certifications: Manufactured using the ISO 9001 quality management system.
-
Avg. Weight (lbs): 0.6
For any information about products, please contact us.
*Photos for reference purposes only.
