Description

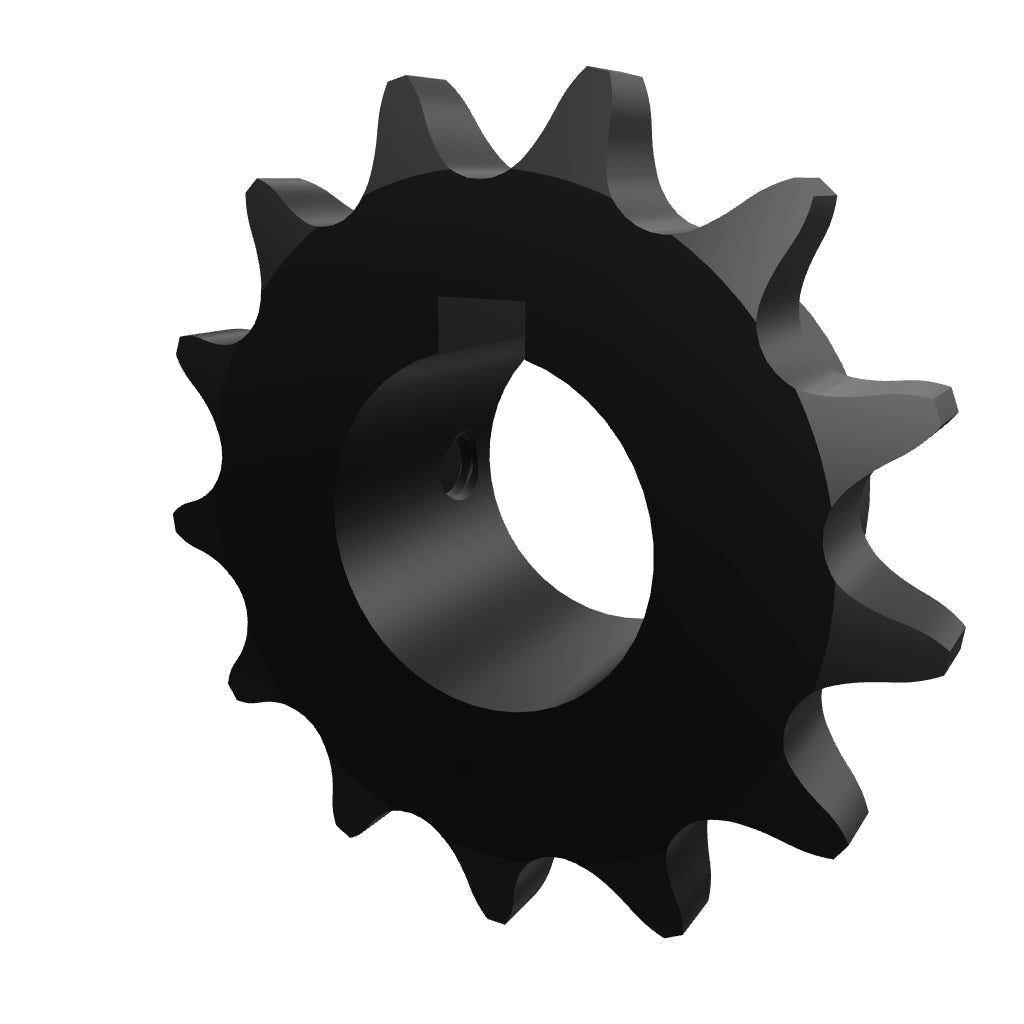

Product Details : 60B13-1-7/16" Finished Bore Sprocket With Keyway | 60B13H-1-7/16
- Part No: 60B13H-1-7/16
- Product Type: FB (Finish Bore)
- ANSI Chain Size: 60
- No. Of Teeth: 13
- Shaft Diameter: 1-7/16"
- Pitch: 3/4"
- Pitch Diameter: 3.134"
- Outside Diameter: 3.490"
- Tooth Thickness: 0.459"
- Hub Diameter: 2.344"
- Length Thru Bore: 1-1/4"
- Square Key Width: 3/8"
- Square Key Depth: 3/16"
- No. Of Set Screws: 2
- Set Screw Size: 3/8"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 1.3
For any information about products, please contact us.
*Photos for reference purposes only.
